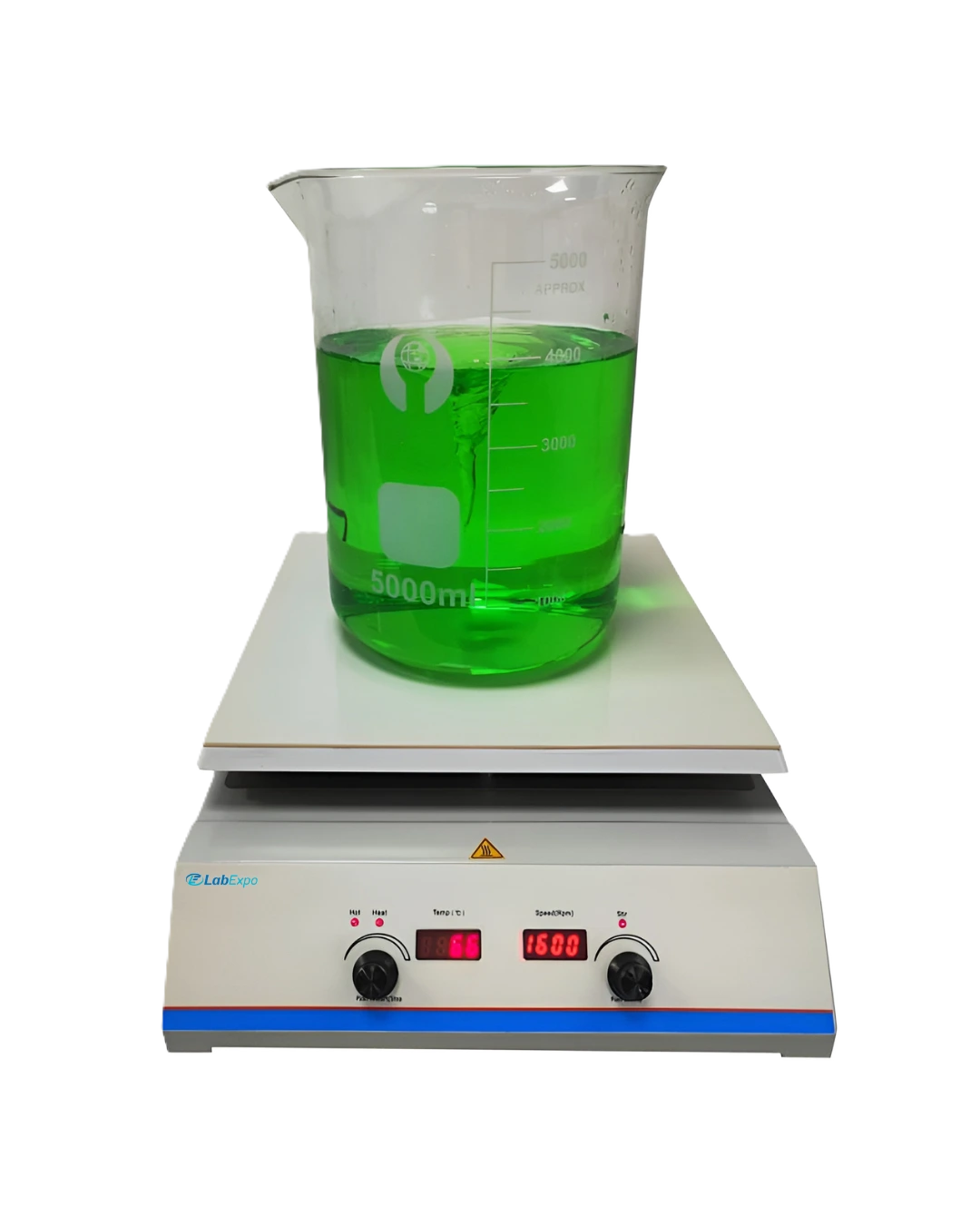

Hot Plate Magnetic Stirrer LE-HPS105 offers a wide heating range from 35 to 500 °C for versatile laboratory applications. It ensures precise control with a temperature stability of ±0.5 °C. Equipped with an overheat alarm to enhance operational safety. Built with ceramic plate to provide high heat resistance and uniform temperature distribution. Our Hot Plate Stirrer delivers consistent results and dependable operation.
Specifications
| Plate Diameter | Ø 300 mm |
| Temperature Setting Range | 35 to 500 °C |
| Plate Heating Range | 35 to 500 °C |
| Solution Heating Range | 35 to 200 °C |
| Temperature Stability | ±0.5 °C |
| Plate Heating Resolution | 1 °C |
| Solution Heating Resolution | 0.1 °C |
| Hot Warning | Yes |
| Number of Stirring Positions | 1 |
| Stirring Capacity | Up to 20 L |
| Speed Range | 150 to 1600 rpm |
| Stir Bar Length Range | 25 to 80 mm |
| Overheat Alarm | Yes |
| Operation Ambient Temp. | 5 to 40 °C |
| Relative Humidity | 80% |
| Protection Class | IP21 |
| Plate Material | Ceramic |
| Frequency | 50 / 60 Hz |
| Power Consumption | 1800 W |
| Power Supply | 110 to 130 V / 200 to 240 V |
| Dimensions | 360 × 410 × 135 mm |
| Net Weight | 3 kg |
| Gross Weight | 6.5 kg |
Features
Applications
Hot Plate Magnetic Stirrer LE-HPS105 is ideal for dissolving solids, preparing homogeneous solutions, and heating reagents across research, pharmaceutical, academic, and quality control laboratories.
Optional Accessories
PT1000 External Temperature Sensor
Lab Expo offers Hot Plate Magnetic Stirrer combines efficient heating and powerful stirring in a single compact unit. Their variable speed range allows users to adjust stirring from gentle agitation to vigorous mixing. They are compatible with a wide range of stir bar sizes. Their IP21 protection rating ensures safe operation under standard laboratory conditions. Our Magnetic Stirrer provides excellent durability, chemical resistance, and efficient heat transfer.
