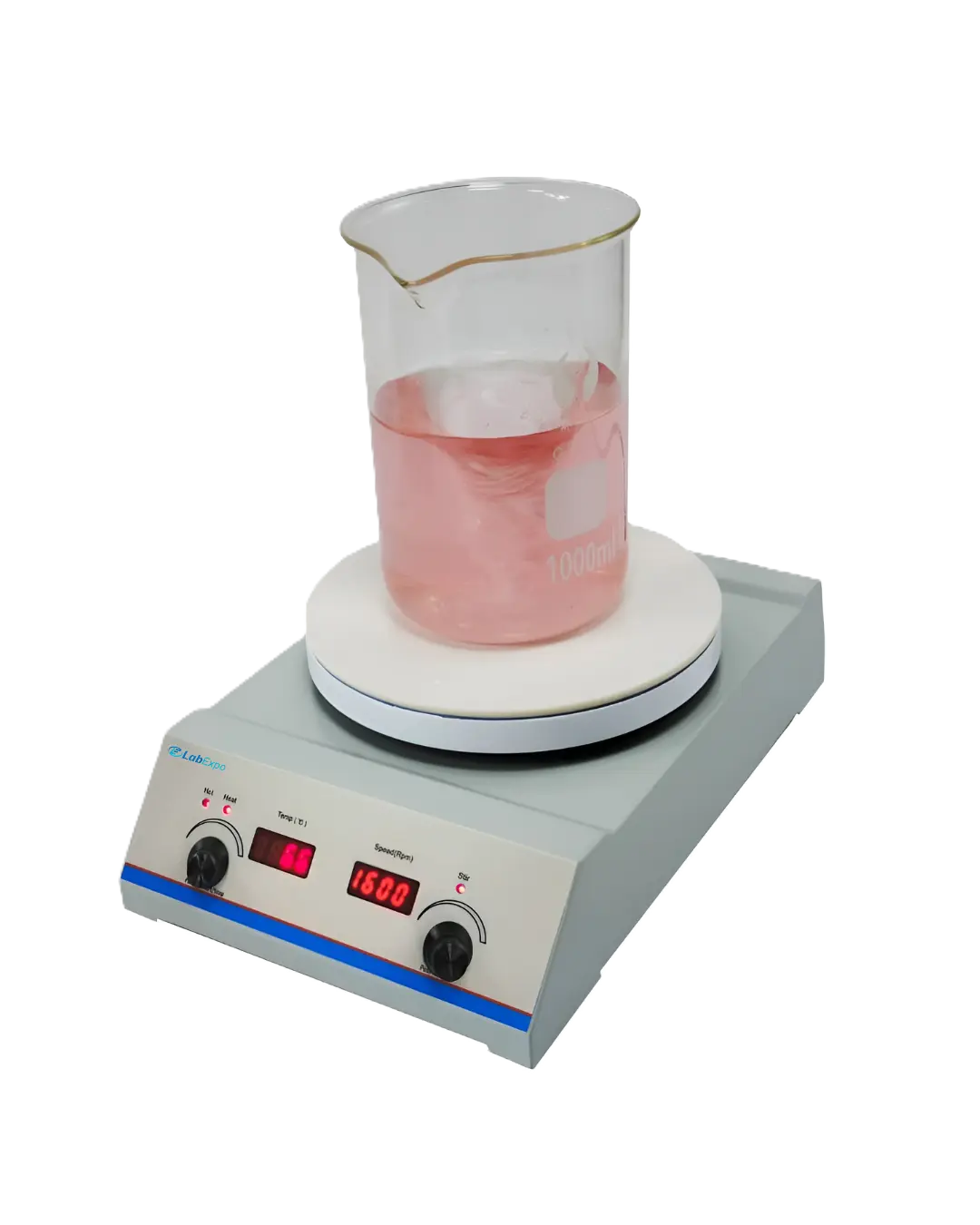

Hot Plate Magnetic Stirrer LE-HPS106 offers precise heating and stirring with a durable ceramic plate and a temperature range of 35 to 500 °C. It features a speed range of 150 to 1600 rpm and a maximum stirring capacity with bidirectional motion. Equipped with programmable timer for accurate, stable, and efficient operation. Our Hot Plate Magnetic Stirrer is ideal for chemical, biological, pharmaceutical, and environmental applications.
Specifications
| Plate Dimensions | 178 mm |
| Plate Temperature Range | 35 to 500°C |
| Solution Temperature Range | 35.0 to 200.0°C |
| Temperature Stability | 1°C |
| Heat Control Accuracy | +/-0.5°C |
| Speed Range | 150 to 1600 rpm |
| Max. Stirring Quantity | 10L |
| Stir Bar Length Range | 25 to 60 mm |
| Motion Direction | CW/CCW |
| Display | LED |
| Plate Material | Ceramic |
| Hot Warning | Yes |
| Plate Heating Resolution | 1°C |
| Solution Heating Resolution | 0.1°C |
| Capable Calibration on External Probe | Yes |
| Timer | 9h and 59m |
| Overheat Warning & Medium Detection | Yes |
| Operation Ambient Temperature | 5 to 40°C |
| Operation Relative Humidity | 80% |
| Protection Class | IP21 |
| Frequency | 50/60 Hz |
| Power Consumption | 900W |
| Power Supply | 110 to 130V/200 to 240V |
| Dimensions | 192 × 293 × 100 mm |
| Weight | 3.8 Kg |
Features
Applications
Hot Plate Magnetic Stirrer LE-HPS106 is used for accurate heating and stirring of solutions in laboratories, making it ideal for chemical research, pharmaceutical testing, biological studies, and environmental analysis.
Optional Accessories
PT1000 external temperature Sensor
Lab Expo offers Hot Plate Magnetic Stirrer combines efficient heating and powerful stirring in a single compact unit. Their variable speed range allows users to adjust stirring from gentle agitation to vigorous mixing. They are compatible with a wide range of stir bar sizes. Their IP21 protection rating ensures safe operation under standard laboratory conditions. Our Magnetic Stirrer provides excellent durability, chemical resistance, and efficient heat transfer.
