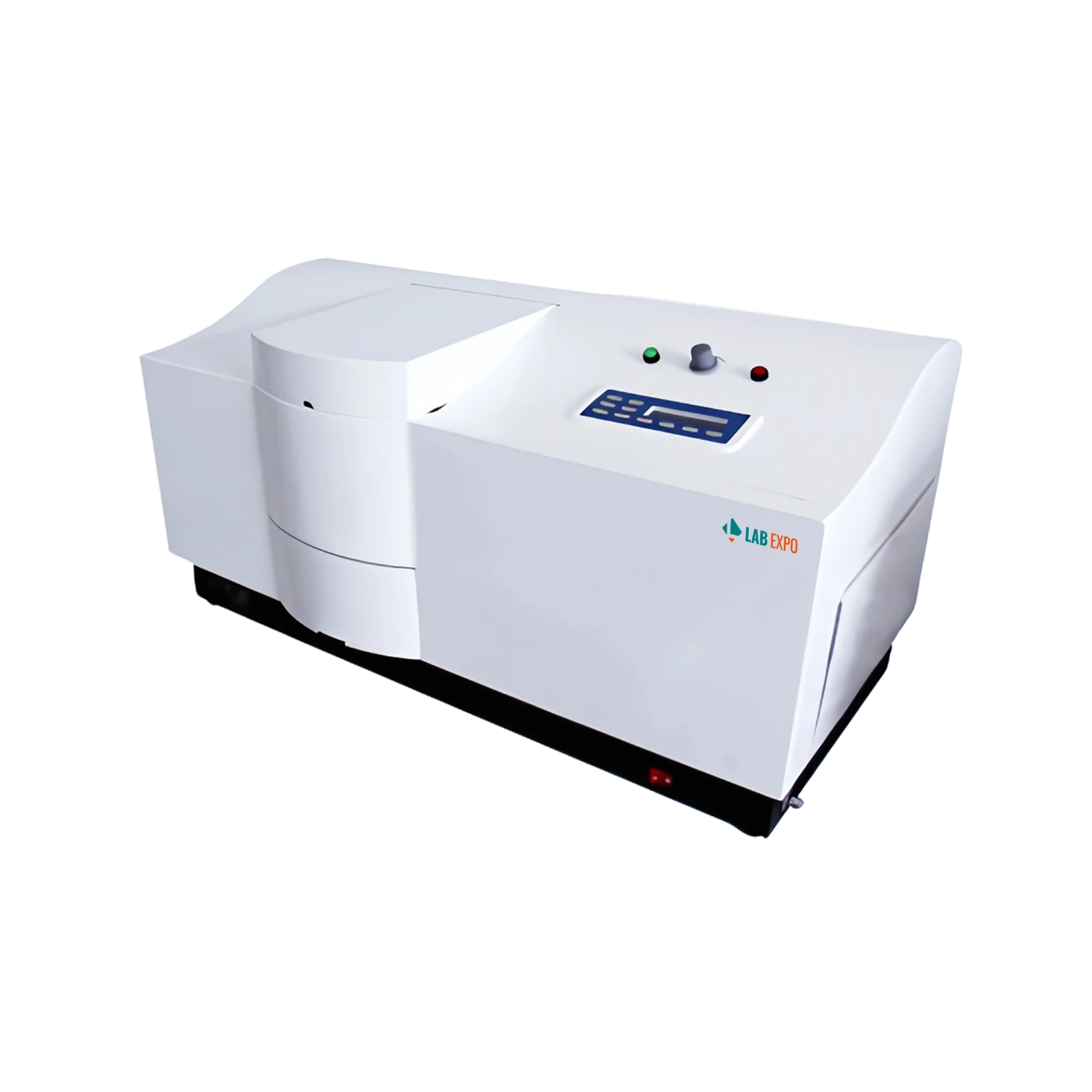

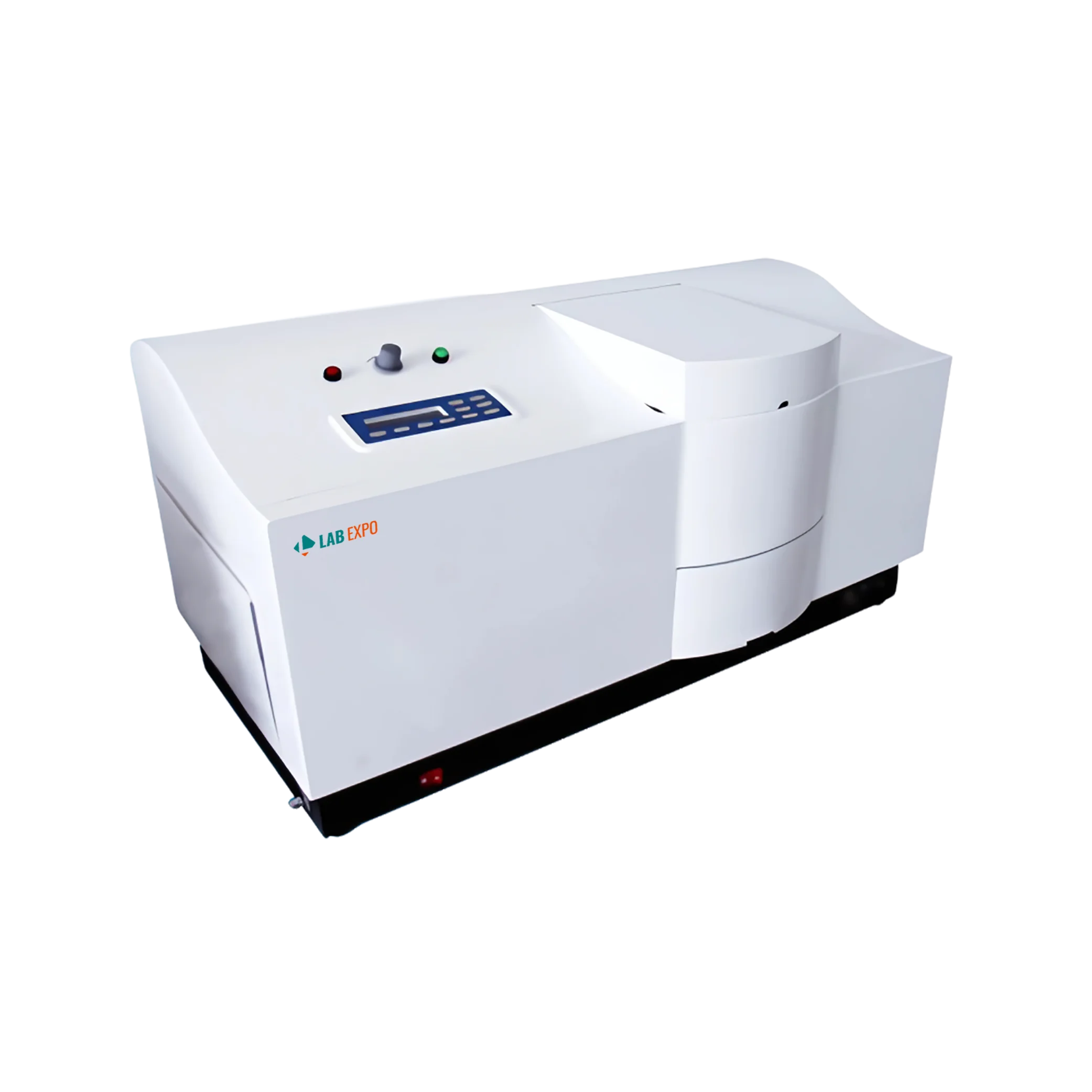

Image Particle Shape and Size Analyzer 50-IPA101

Image Particle Shape and Size Analyzer 50-IPA101 is an advanced and powerful characterization tool that overcomes the shortcomings of a static particle image analyzer. It uses high-speed camera, which images moving particles of over 2 μm -6000 μm size range. In addition, it is well-equipped with a built-in dispersion system.

Specifications

Measuring range 2 μm to 6000 μm
Dispersion Ultrasonic, Stirring, Circulation
CCD High speed and resolution CCD (The shutter speed is 10-6/s)
Maximum resolution 1028 × 1024
Executive Standard ISO/DIS-13322-2
Accuracy error < 3%
Reproducibility < 3%
Shape parameters L/D ratio, bulkiness ratio, sphericity, surface factor etc.
Distribution parameters D10, D50 (Median diameter), D90 etc.
Average diameter size Xnl, Xns, Xnv, Xls, Xlv, Xsv etc.
Statistical methods Probability/cumulative distribution of particle parameters against quantity, volume, area etc.
Communication interface IEEE1394 standard interface
Dimension 760 × 440 × 460 mm
Net weight 25 kg

Features

  • Analyzes both size and shape
  • High speed camera having maximum resolution of 1028 x 1024 images moving particles
  • Maximum number of particles being analyzed is not limited
  • Strong data representation
  • Wide measuring range as compared to laser particle analyzer
  • Built-in dispersion system
  • Ultrasonic dispersion minimizes particle aggregation and improves accuracy of results
  • Data report can include more than ten parameters
  • Integrated POWDER software collects images at high speed, analyzes particle size/ shape, defocuses and records all data for further analysis
  • Executes international standard ISO/DIS-13322-2
  • Ensures accuracy and reproducibility

Applications

Image Particle Shape and Size Analyzer is used in pharmaceutical research and quality control applications, food product particle sizing, and the chemical industry.

Catalog

Image Particle Shape and Size Analyzer 50-IPA101 Catalog

Image Particle Shape and Size Analyzer 50-IPA101

Related Models Of Image particle shape and size analyzer

Lab Expo offers Image Particle Shape and Size Analyzers designed to measure and analyze the size, shape, and distribution of particles in a wide range of samples. These analyzers integrate a professional optical microscope with the latest high-speed CMOS camera, providing clear, high-quality images. They utilize an automatic analysis algorithm and binarization methods to enhance data processing and improve the accuracy of automated analysis. Our analyzers feature advanced image stitching capabilities to ensure seamless results, improving the representation and accuracy of test data.
