Industrial peristaltic pump 51-IDP101

Industrial peristaltic pump is a dual channel precise dispensing peristaltic pump to transfer large amount of fluid in industry. Equipped with varied flow range and speed accuracy it allows reversible operation to pump in both directions. Includes time dispensing, volume dispensing and copy dispensing mode to meets all kinds of complex dispensing requirements. Provides high levels of volumetric accuracy without contaminating the fluid during the operation. Interchangeable pump heads help in delivering smooth and low pulse flows

Specifications

Flow Range 0.01 - 13 L/min
Flow Accuracy 0.5 %.
Speed Range 0.1 ~ 600 rpm
No of channel 2
Speed Resolution 1 rpm
Display Touch screen display
Ambient Temperature 0 ~ 40 °C
Relative Humidity < 80 %
IP grade IP 31
Power supply AC 220 V ±10 % , 50 Hz / 60 Hz
Power Consumption < 300 W
Dimensions ( L x W x H ) 350 x 235 x 315 mm
Weight 15 kg

Features

  • Touch screen display to set dispense volume, stop time, copy number etc
  • Autosave’s running parameters on power or system failure
  • Reversible operation allowing pumping in both directions
  • Easy liquid auto dispension by time or volume
  • Acid, alkali, sodium corrosion resistant
  • Dust and moisture proof circuit board
  • Adjustable rotating speed
  • Robust and protected with ABS plastic housing
  • Low noise operation

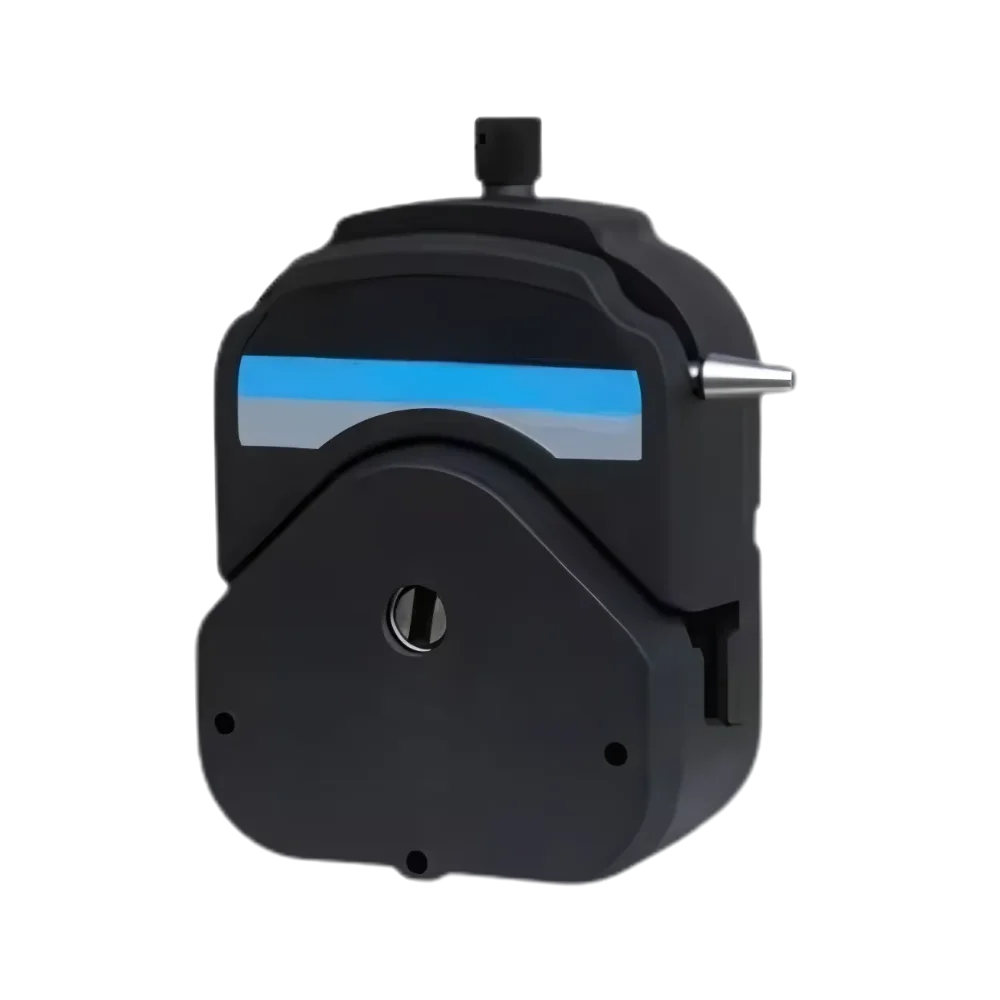

Pump Heads and Tubing

Model NoPump Head Flow rateChannelTubing Size ( mm )
51-IDP101A0.01 - 13 (mL/min) per channel1Wall : 3.3 mm
51-IDP101B0.01 - 13 (mL/min) per channel2Wall : 3.3 mm

Catalog

Industrial peristaltic pump 51-IDP101 Catalog

Related Models Of Industrial peristaltic pump

Lab Expo offers Industrial Peristaltic Pumps designed for efficient transfer of large fluid volumes, making them ideal for a wide range of industrial applications. These pumps offer precise fluid dispensing with adjustable flow rates. They are built with corrosion-resistant materials, ensuring durability and compatibility with a variety of chemicals. These pumps feature a reversible flow mechanism for seamless bidirectional fluid movement. Their intuitive LCD features an interactive user interface, allowing for quick and accurate adjustments.
