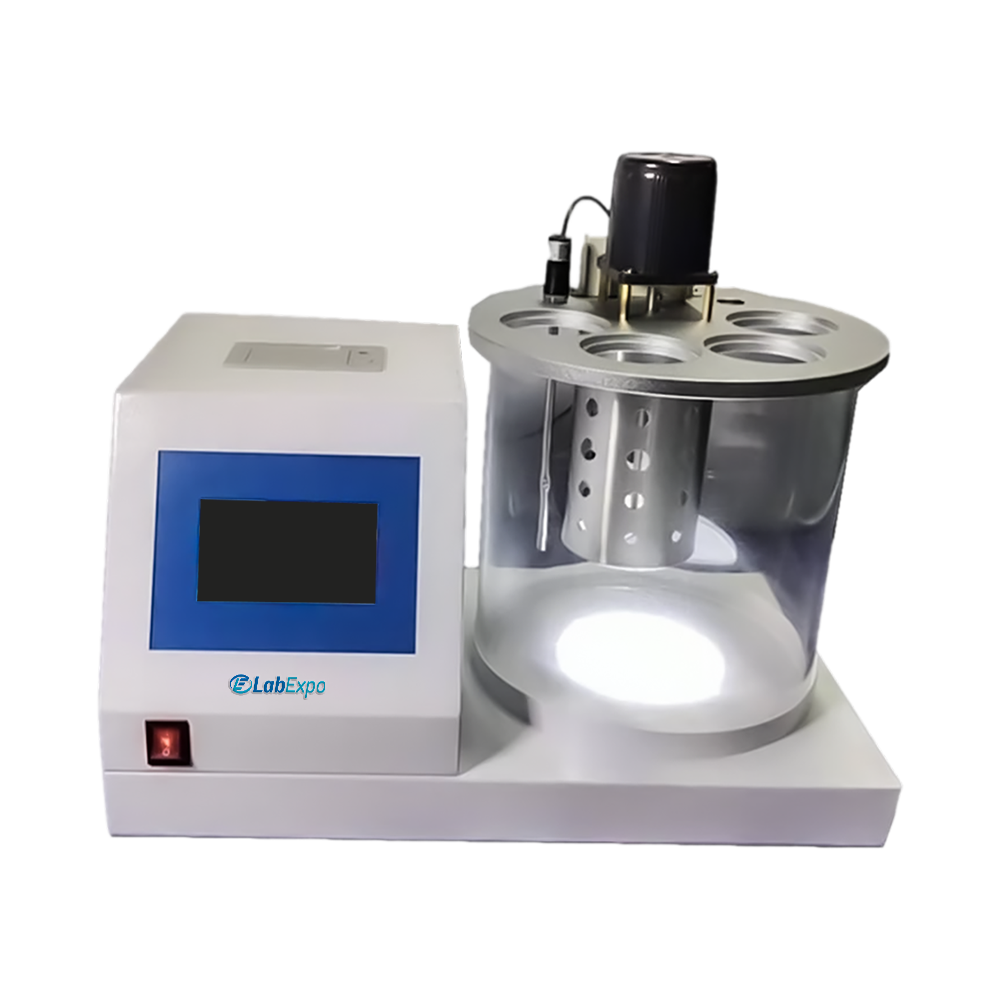

Kinematic Viscometer LE-KVM100 is designed in compliance with ASTM D445 standards for precise viscosity determination. Features intelligent single-chip microcomputer temperature control. Comes with a 5-inch color LCD touchscreen for real-time monitoring. Enables accurate measurement across both low and high viscosity ranges with excellent stability. Calculates viscosity, averages results, and supports data storage and printing for efficient workflows. Our Viscometer is built with a corrosion-resistant stainless steel system and insulated thermostatic bath ensuring durability and uniform temperature control.
$4,589.00 $ 3824
Specifications
| Display Method | 5-inch LCD touchscreen |
| Temperature Control Range | Room temperature to 200℃ (immersion cooler required below ambient) |
| Measurement Range (Kinematic Viscosity) | 0.5 – 20000 mm²/s |
| Measurement Range (Dynamic Viscosity) | 0.3 – 40000 mPa·s |
| Temperature Control Accuracy | ±0.1℃ (±0.01℃ optional) |
| Timing Accuracy | ±0.1 s |
| Timing Range | 0.1 – 999.9 seconds |
| Thermostatic Bath | 250 × 250 mm, double-layer |
| Printer | Low-energy thermal printer, 56 mm paper width |
| Temperature Sensor | Imported platinum resistance thermometer |
| Stirring Speed | 1350 rpm |
| Maximum Power | 1200 W |
| Sample Capacity | 4 samples |
| Operating Environment | Temperature: 15 – 35℃; Humidity: < 85% |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Dimensions | 500mm × 310mm × 500mm |
| Net weight | 23 Kg |
Features
Applications
Kinematic Viscometer LE-KVM100 is Widely used for kinematic and dynamic viscosity determination of petroleum products, lubricating oils, and chemical liquids. Suitable for quality control, research laboratories, power plants, railway sectors, and industrial testing environments.
Lab Expo Kinematic Viscometers are designed to measure the viscosity of fluids. They provide precise, reliable readings with digital screens for easy monitoring and operation. These devices have corrosion resistance, automatic temperature control, and low liquid level indicators. Our Kinematic Viscometers feature adjustable speeds and built-in data logging for efficiency.
