Semi-Automatic Kjeldahl Analyzer 40-SKA100
Product1
Product2
Product3

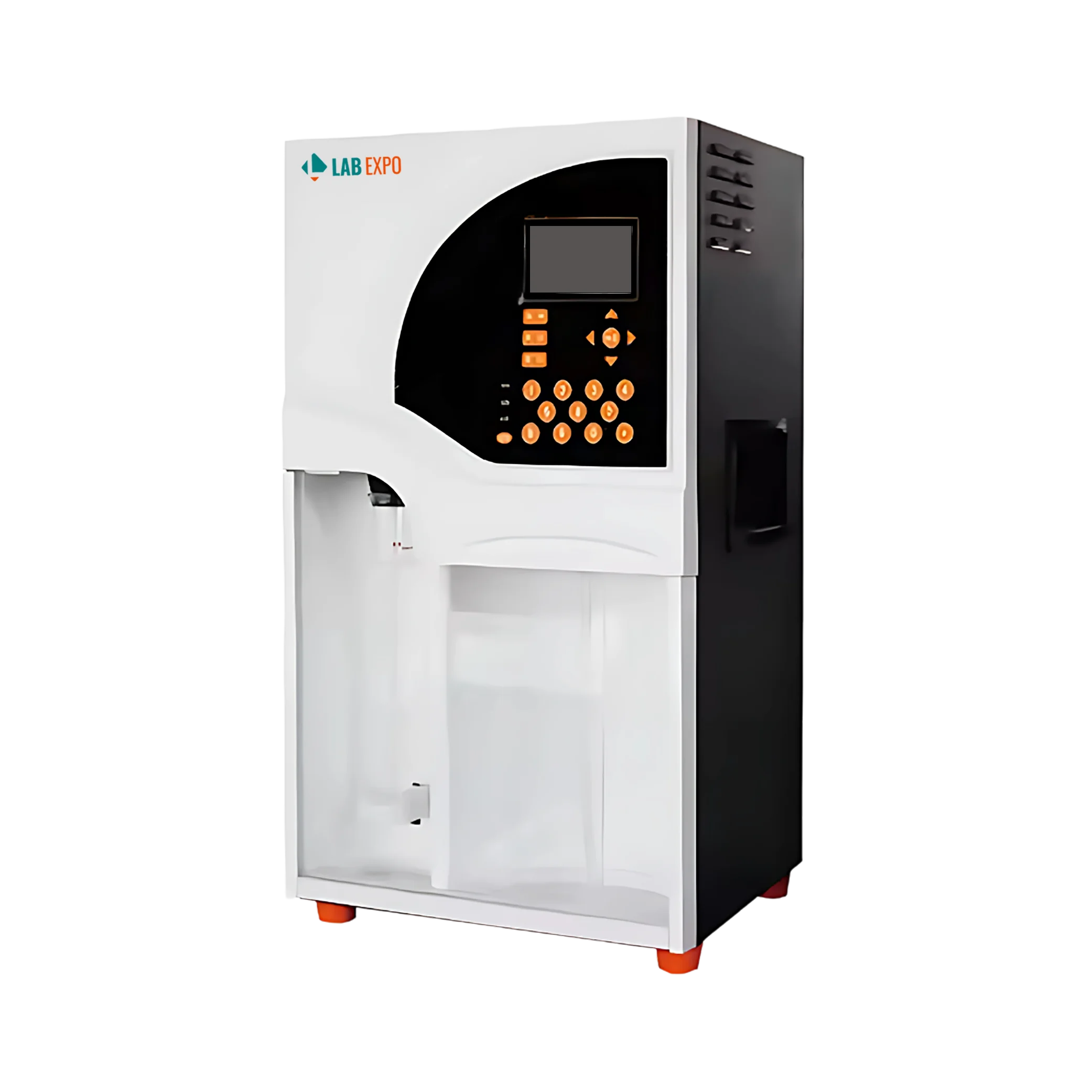

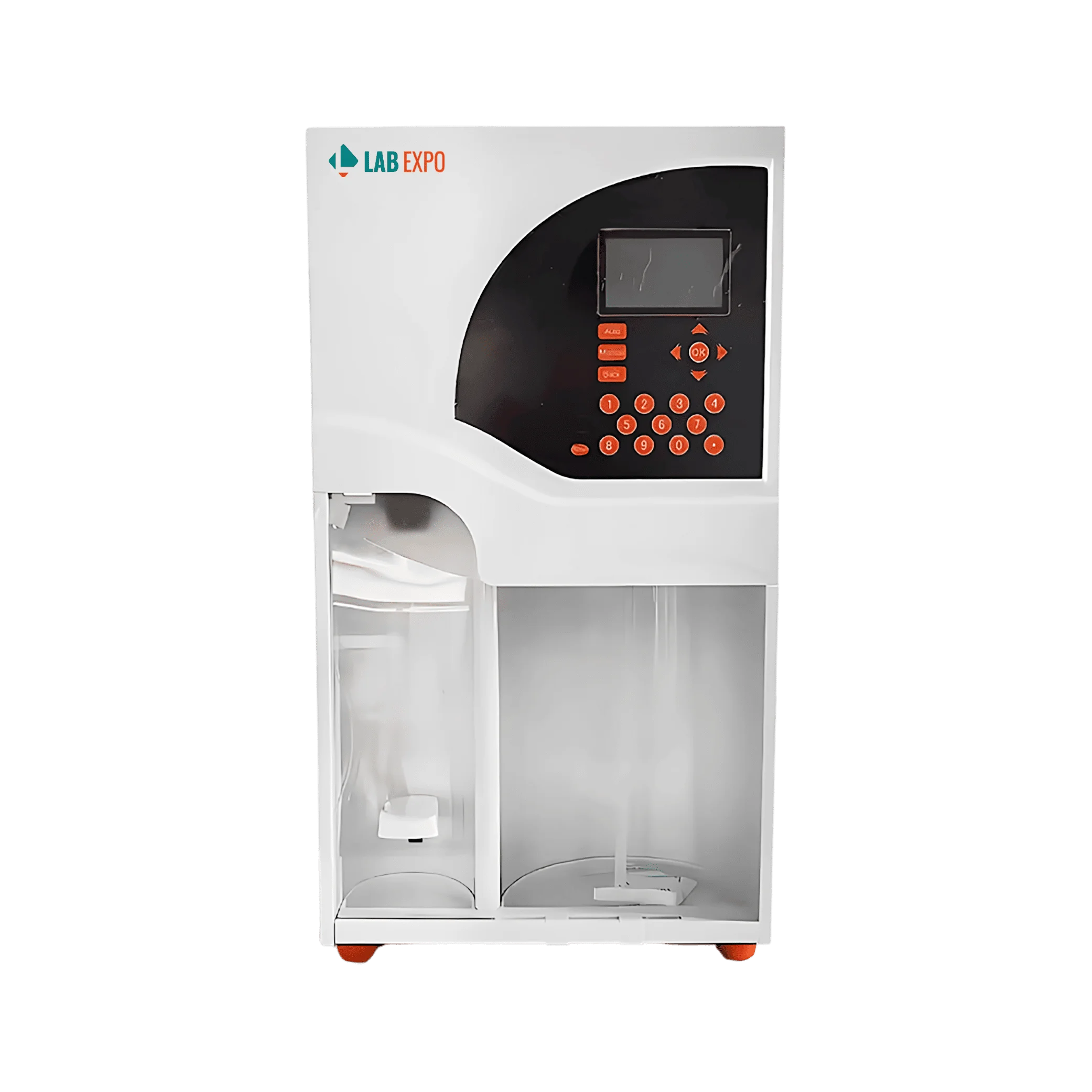

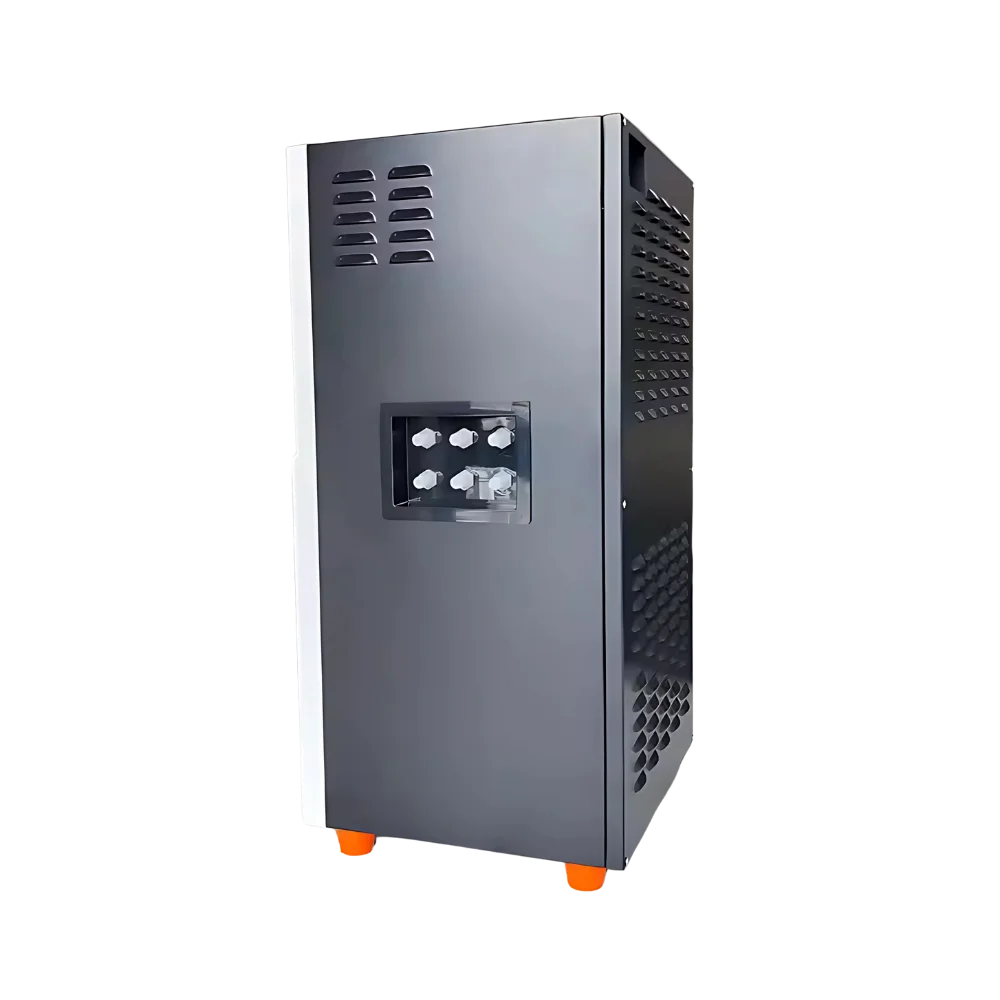

Semi-Automatic Kjeldahl Analyzer 40-SKA100

40-SKA100 is a semi-automatic Kjeldahl analyzer having intelligent design. It is equipped with 4.3" LCD screen, automatic fault detection system and intelligent audible and visual alarm system. With features such as automatic alkali liquid quantification and filling, automatic boric solution quantification and filling, intelligent cooling water control system and emergency stop operation, it is a safe and reliable instrument.

Specifications

Measuring Range 0.1 mg-240 mg N
Analysis Time 3-6 min/sample
Water Consumption in the Distillation Process 1.5 l/min
Sample Capacity Solid : ≤ 6g/sample; Liquid: 16 ml/sample
Recovery ≧ 99.5%
Power Supply AC 220 V ± 10%/ 50 Hz
Power 1.3 kW
Dimension 400 x 385 x 735 mm
Net Weight 30 kg

Features

  • 4.3" LCD display
  • Easy changeover of Manual/Automatic mode
  • Automatic quantification and filling of alkali liquid and boric solution
  • Automatic cleaning of control system and distiller
  • Automatic alarm function on completion of process
  • Perfect safety system ensures protection against over temperature and over pressure
  • Intelligent cooling water control system
  • Emergency stop operation to deal with unexpected accidents
  • Distillation time can be set freely
  • Automatic or manual filling mode is optional according to the test need
  • Automatic fault detection system
  • Intelligent audible and visual alarm system available

Applications

It is used to perform nitrogen analysis and protein determination in food & feed industry, environmental industry, chemical industry etc.

Standard Accessories

Accessory Name Quantity
Digestion Tubes 10 pcs
Power Cord 1 pc
Alkali/ Water/ Acid Tanks 3 pcs
Inlet Water Pipe 1 pc
Draining Pipe 1 pc
Waste Receiving Tray 1 pc
Nylon Cable Ties 10 pcs

Optional Accessories

Accessory Name Specification Quantity
Digestion Tube 280 ml 10
Alkali Tank 300 ml 3
Boric Acid Tank
Water Tank

Catalog

Semi-Automatic Kjeldahl Analyzer 40-SKA100 Catalog

Related Models Of Kjeldahl Analyzer

Lab Expo kjeldahl analyzers include microcomputer-controlled devices for automated distillation, titration, and waste disposal. These analyzers include LCD touch panels for visual operation. They guarantee safety through a variety of protections such as failure detection, alarms, and safety door displacement. These analyzers support accurate liquid filling, steam flow control, and real-time temperature observation. They have automated cleaning and optional USB ports for PCs. Our kjeldahl analyzers have cooling water control and an emergency stop button for further safety.
