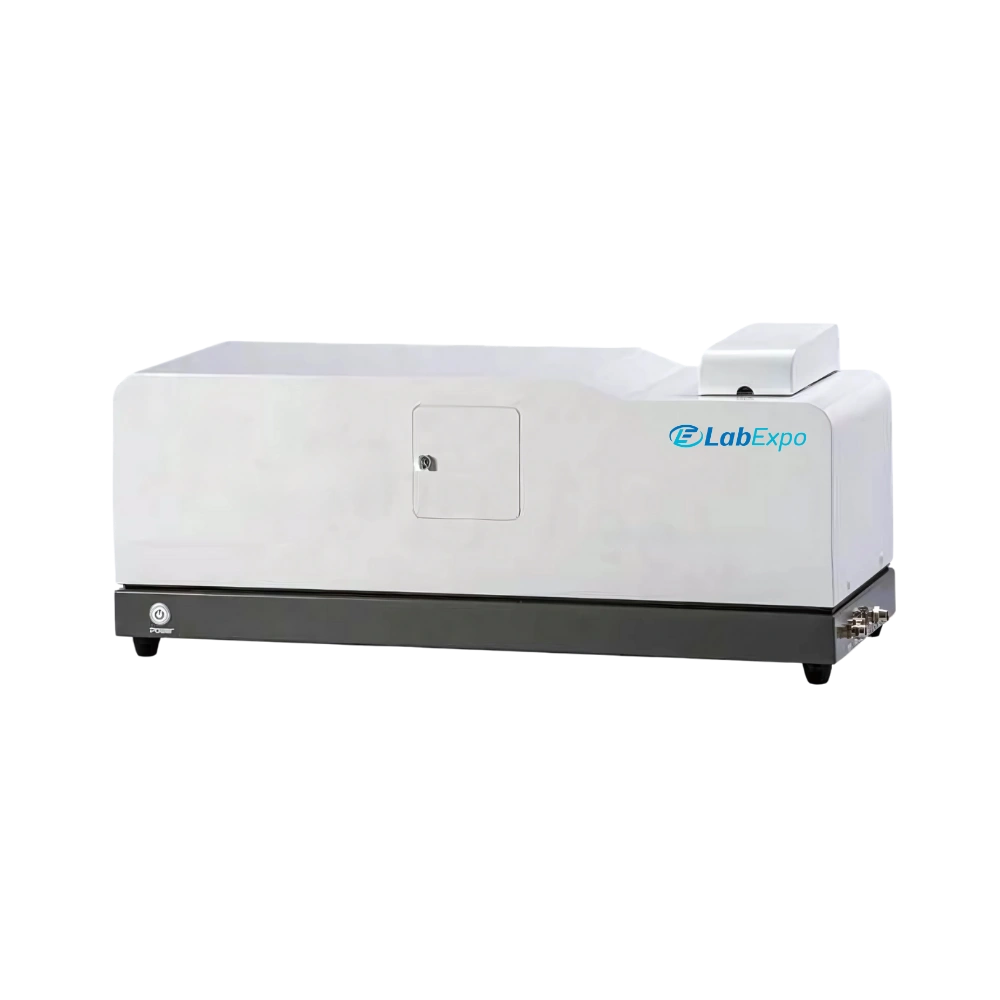

Laser Particle Size Analyzer LE-LPA402 comes with a 635 nm laser to provide stable and clear-cut optical measurements. It provides measurement precision within less than 0.5 % for various testing suspensions. Equipped with ultrasonic and circulation dispersion methods to treat variety of sample types. Integrated with microinjection and boiling sample for minimal sample loss. Our Laser Particle Size Analyzer is ideal for cement, mining, petrochemical, and materials research.
Specifications
| Measurement Range | 0.01 µm to 1000 µm |
| Accuracy Error | ≤ 0.5 % (D50 Value of National Standard Sample) |
| Repeatability Error | Less Than 0.5 % (D50 Value of National Standard Sample) |
| Misoperation Protection | Self-Protection for Misoperation ; No Response to Incorrect Sample Input |
| Bubble-Free | No Bubble Design, Reduces Interference, Improves Accuracy |
| Dispersion Method | Ultrasonic (4 KHz, 100 W), Circulation Pump (100 to 3350 rpm, 25 W) |
| Sample Cell | Boiling-Type Sample Cell With 190 to 600 ml Capacity |
| Micro Injection | Optional Built-In Micro-Injection Sample Feed Device |
| Laser Parameters | Imported Diode Laser, 635 nm, P Greater Than 10 mW |
| Optical Path Calibration | Automatic Calibration |
| Software Features | Analysis Models: R-R Distribution, Lognormal, Etc. |
| Test Report Export | Word, Excel, BMP, Text Formats |
| Language Support | English Adaptable to Other Languages |
| Operation Mode | Computer Operation |
| Testing Speed | Less Than 1 min / Test (Excluding Dispersion Time) |
| Dimensions | 680 × 410 × 450 mm |
| Weight | 35 kg |
Features
Applications
Laser Particle Size Analyzer LE-LPA402 finds applications for precise particle size distribution in cement grinding, petrochemical analysis, quality control in mining, pharmaceutical formulation, and advanced material research labs.
Lab Expo Laser Particle Size Analyzers offer a compact design with high-performance laser diffraction technology for fast and accurate particle size measurements. They include automatic alignment for enhanced precision and an efficient sample dispersion system for reliable performance. Our Laser Particle Size Analyzers provide fast results, low maintenance, and a wide dynamic range.
