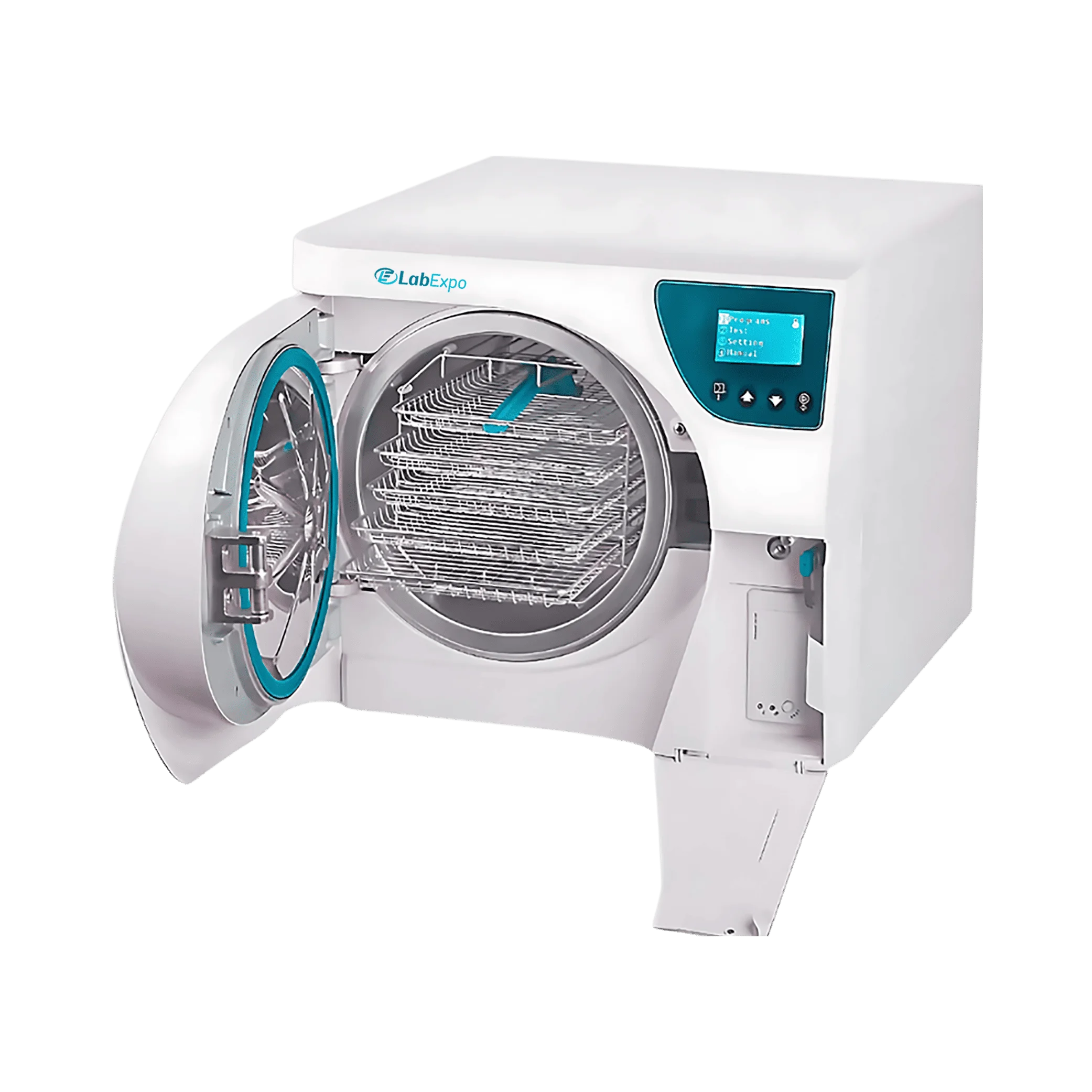

Medical Autoclave 26-MAC100

Medical Autoclave 26-MAC100 is a class B fractionated automated autoclave. Inbuilt with 8 types of sterilization systems and two test program that can be checked and monitored by computer. It has automatic power shut down for overheating of inner temperature and an alarm system to indicate low water level. Automatic power and water cut off with an alarming indicator when there is lack of water makes this autoclave safe and reliable to use.

Specifications

Capacity 14 L
Sterilization Time 4 - 18 mins
Sterilization Temperature 121 °C / 134 °C
No. of Trays 3
Dry Procedure Vacuum drying
Input Power 1200 W
Power Supply 230 V,50 / 60 Hz
Minimum Desk Size 480 × 350 mm
Chamber Dimension ( Φ × D ) 250 × 270 mm
Overall Size ( L × W × H ) 480 × 480 × 520 mm
Net Weight 37.5 kg
Gross Weight 45.5 kg

Features

  • Microprocessor-controlled system with automatic cycle execution and LCD status monitoring
  • Automated drying function to reduce residual moisture after sterilization
  • Pressure-interlocked, self-sealing chamber preventing door opening above 0.027 MPa
  • Automatic water feeding and draining system with low-water power cut-off and alarm
  • Stainless steel sterilizing shelves designed for repeated high-temperature use

Applications

FunctionImplementation
Medical SterilizationSurgical instruments and reusable medical devices
Chemical ProcessingCure of coatings under controlled temperature and pressure
Material TreatmentVulcanization of rubber components
Synthesis ProcessesHydrothermal synthesis under pressurized conditions

Catalog

Medical Autoclave 26-MAC100 Catalog

Related Models Of Medical Autoclave

Lab Expo Medical Autoclaves are applied in clinical sterilization workflows where regulated steam exposure is required to process reusable medical equipment under controlled conditions. Units operate using pressurized steam at defined temperature and pressure levels and are constructed from stainless steel to support hygienic handling and corrosion resistance. Digital control systems manage cycle selection and parameter regulation, while secure door locking and pressure-monitoring safety mechanisms support controlled operation during each sterilization cycle.
