Medical Autoclave 26-MAC201
Product1
Product2

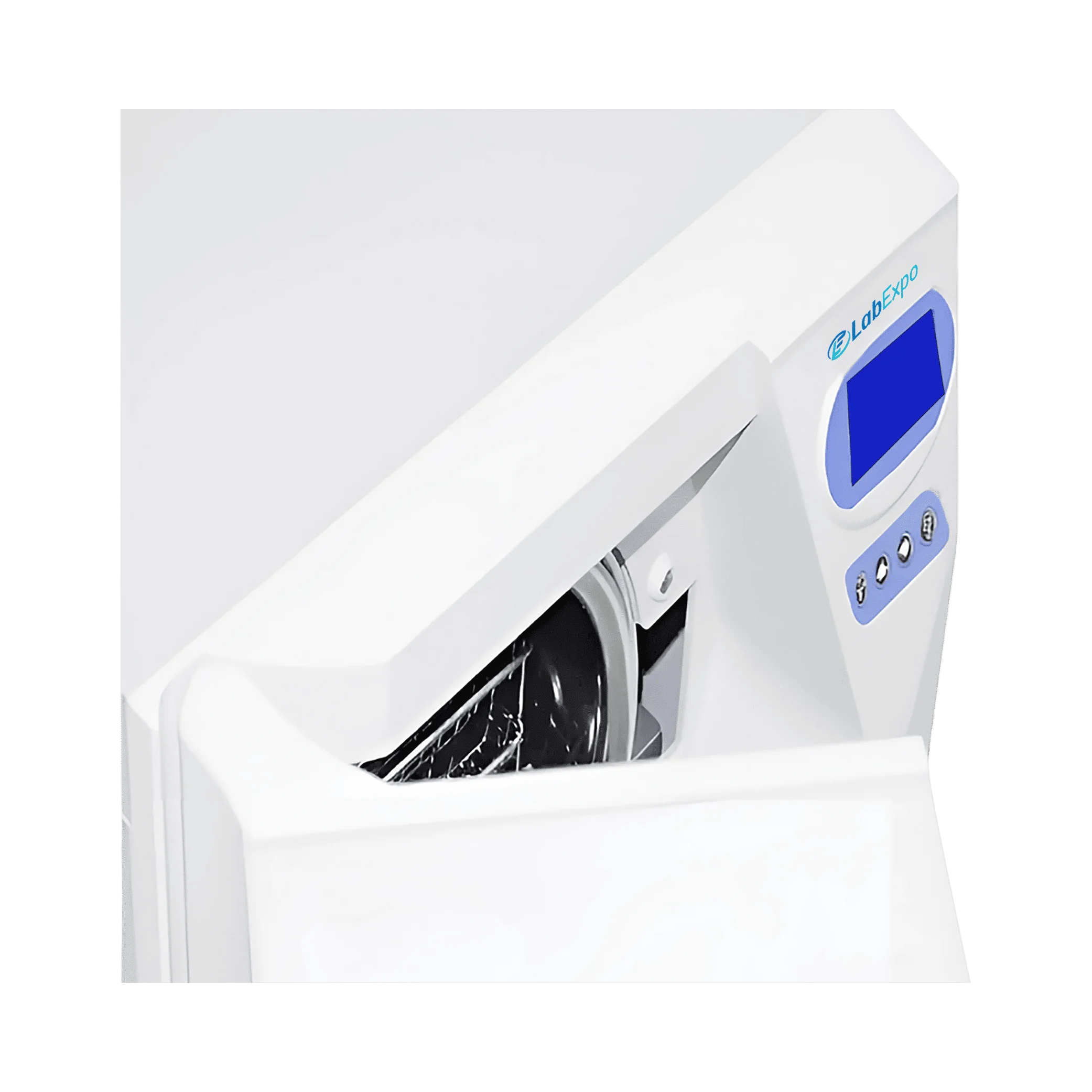

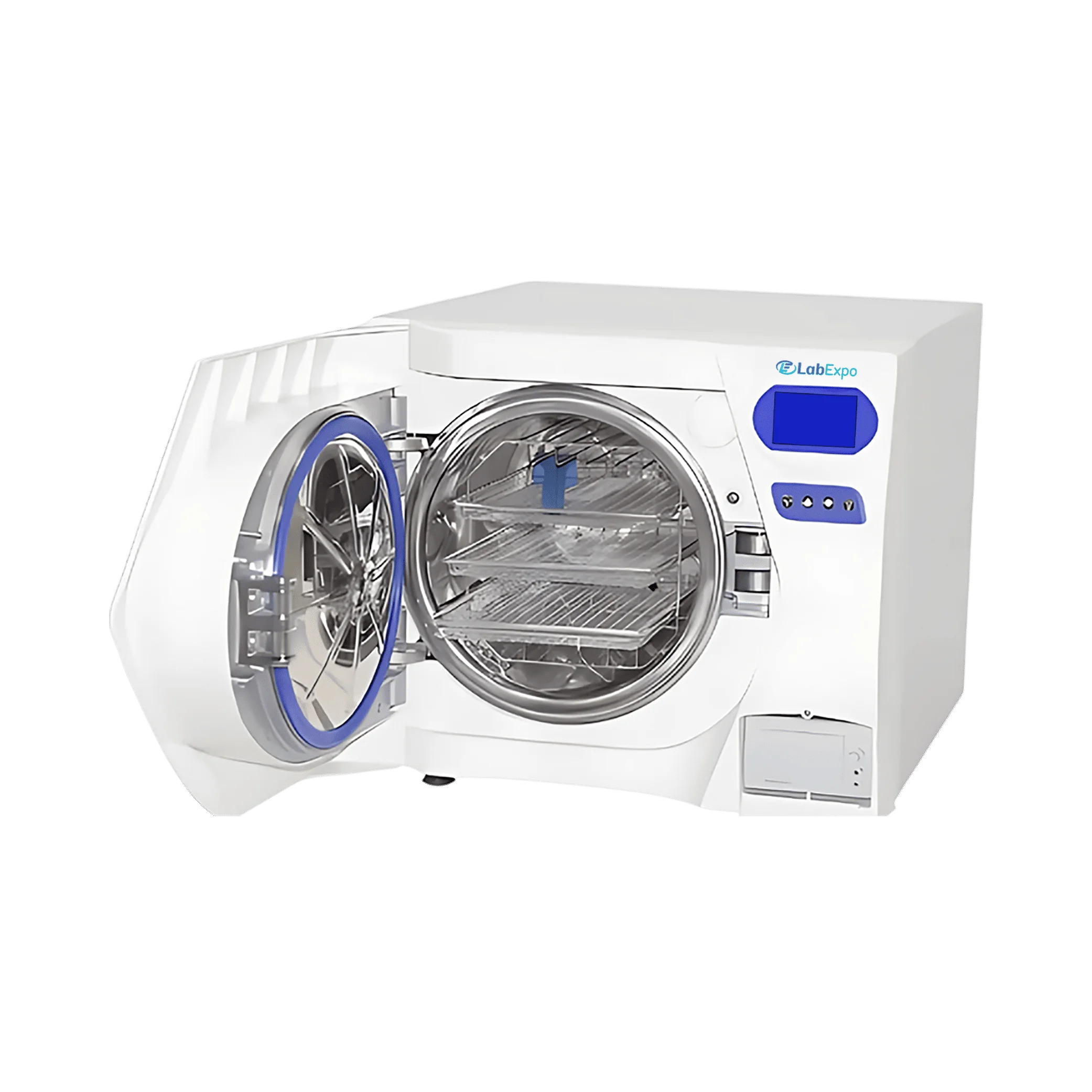

Medical Autoclave 26-MAC201

Medical Autoclave 26-MAC201 is a class B fractionated automated autoclave. Inbuilt with 8 types of sterilization systems and two test program that can be checked and monitored by computer. It has automatic power shut down for overheating of inner temperature and an alarm system to indicate low water level. Automatic power and water cut off with an alarming indicator when there is lack of water makes this autoclave safe and reliable to use.

Specifications

Capacity 17 L
Sterilization Time 4 - 18 mins
Sterilization Temperature 121 °C / 134 °C
No. of Trays 5
Dry Procedure Vacuum drying
Input Power 1800 W
Power Supply 220 ± 10 %,110 V,50 / 60 Hz,20 A
Minimum Desk Size 480 × 400 mm
Chamber Dimension ( Φ × D ) 250 × 380 mm
Overall Size ( L × W × H ) 480 × 530 ×420 mm
Net Weight 47 kg
Gross Weight 55 kg

Features

  • Automatic cycle execution governed by an onboard microprocessor with real-time LCD status visibility
  • Active drying stage applied after sterilization to limit retained moisture on loads
  • Sealed pressure-lock chamber design that blocks door release until pressure falls below 0.027 MPa
  • Self-managed water handling system covering intake, drainage, and low-level safety shutdown
  • Embedded thermal printer for permanent recording of completed sterilization cycles

Applications

FunctionImplementation
Medical Device ProcessingSterilization of reusable instruments and clinical tools
Industrial Heat TreatmentCuring processes for coating materials
Rubber ProcessingVulcanization of rubber-based components
Chemical SynthesisHydrothermal synthesis requiring controlled pressure and temperature

Catalog

Medical Autoclave 26-MAC201 Catalog

Related Models Of Medical Autoclave

Lab Expo Medical Autoclaves are applied in clinical sterilization workflows where regulated steam exposure is required to process reusable medical equipment under controlled conditions. Units operate using pressurized steam at defined temperature and pressure levels and are constructed from stainless steel to support hygienic handling and corrosion resistance. Digital control systems manage cycle selection and parameter regulation, while secure door locking and pressure-monitoring safety mechanisms support controlled operation during each sterilization cycle.
