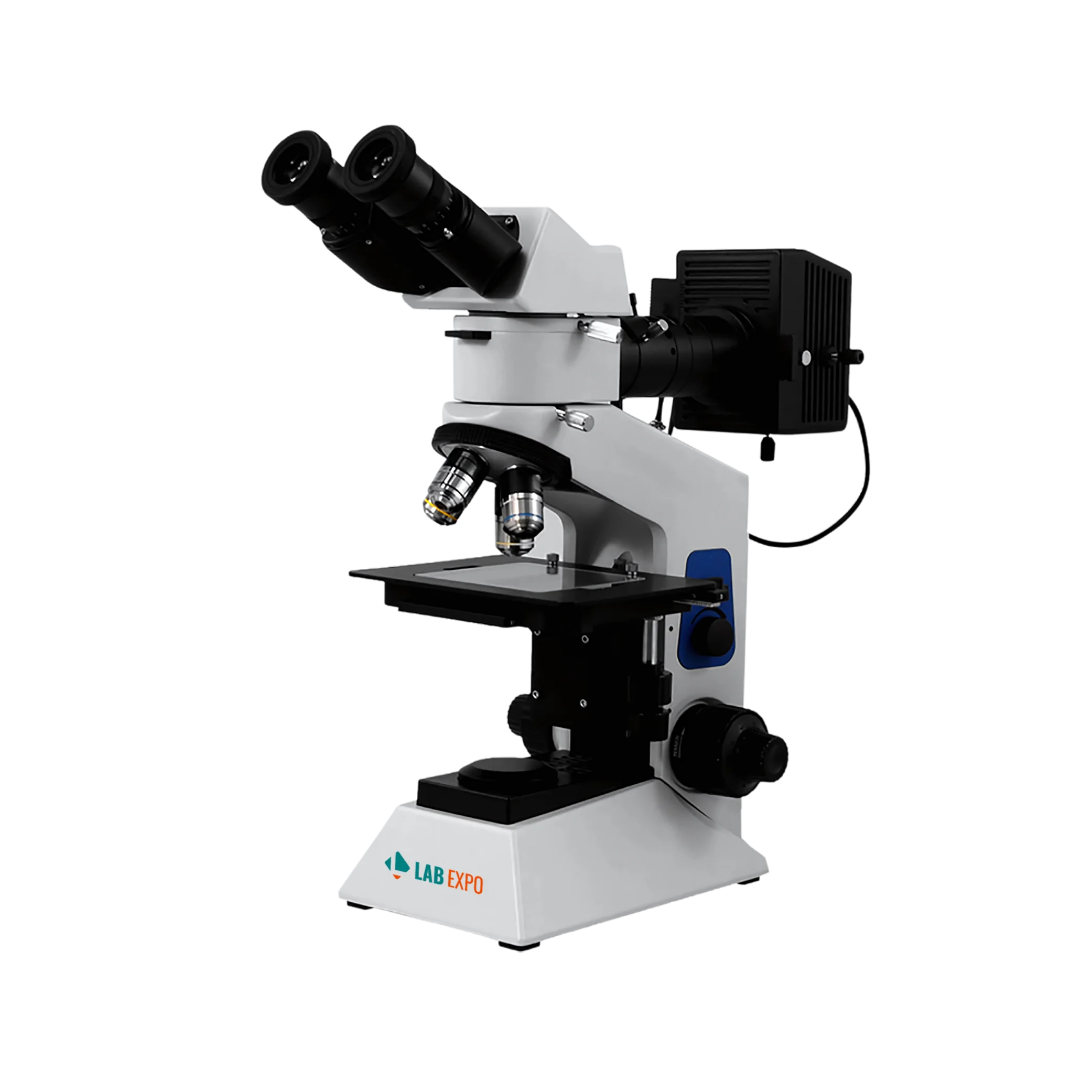

Video Metallurgical Microscope 43-MMS300 features a 10X plan eyepiece with an 18mm field of view for detailed specimen examination. The stage includes a mobile platform with coarse and fine coaxial adjustments for precise specimen handling. It consists of the Epi-fall Kolar lighting system with an anti-reflection structure for enhanced image clarity. The focusing system has separate switches for independent control of upper and lower lighting, improving flexibility.
$9,600.00 $ 8000
Specifications
| Eyepiece | Wide field WF10X(FNΦ18mm), Micrometre available Wide field WF15X(FNΦ13mm), Micrometre available Wide field WF20X(FNΦ10mm), Micrometre available |
| Infinite flat field achromatic objective | PL L5X/0.12 Working distance:15.5 mm PL L10X/0.25 Working distance:8.7mm PL L20X/0.40 Working distance:8.8mm PL L50X/0.70 Working distance:5.1 mm |
| Nosepiece | Quintuple (4 standard lenses of 5X, 10X, 20X, 50X, and one optional 100X) |
| Converter | Internal positioning four-hole converter |
| Focusing system | Low hand coarse and micro coaxial focusing mechanism Fine adjustment accuracy of 0.002mm Equipped with an adjusting slack device to prevent sliding Mechanical upper limit device Adjusting elastic device to prevent sliding Random limiting device to prevent chip damage and fast focusing |
| Stage | Composite double-deck mechanical platform Table surface size: 140 mm × 132 mm (add 180 × 145 mm Flat plate platform,102 × 102 mm Glass loading platform, Facilitate the placement of larger size samples) Moving range: 76 × 50mm, precision: 0.1mm |
| Condenser | N.A.1.25 Cora lighting condenser set preset center, Rack and pinion lift (Fixed type Cora lighting) |
| Illuminating system | Halogen Lamp: 100-240V AC wide voltage Power: 6V/30W Adjustable filament center, continuous adjustable light intensity, variable aperture diaphragm, variable field stop, center adjustable |
| Photograph System | 0.35X/0.5X/0.65X/1XC-Mount, Adjustable focus |
| Imaging system | 4K high-definition imaging system USB3.0 computer version imaging system Super depth of field fusion functional imaging system High-precision measurement imaging system Metallographic analysis imaging system |
| Dimensions | 570 × 470 × 260 mm |
| Net Weight | 8.3 Kgs |
| Gross Weight | 12.5 Kgs |
Features
Applications
Video Metallurgical Microscope is used for detailed analysis of metal samples, used in metallurgy. It finds applications in quality control processes, material research, forensic investigations, and educational settings.
Optional Accessories
USB2.0 Industrial camera
Lab Expo metallurgical microscopes are intended to inspect, identify, and study metal and alloy structures. They have trinocular heads for easy vision. They have high-point, wide-field eyepieces for thorough observation. They offer improved coaxial coarse and fine focusing adjustments with vertical objective movement. They provide strong and clean illumination using halogen bulbs. They include quintuple nosepieces and infinity plan achromatic targets. Our metallurgical microscopes provide precise and dependable investigation of metallographic materials.
