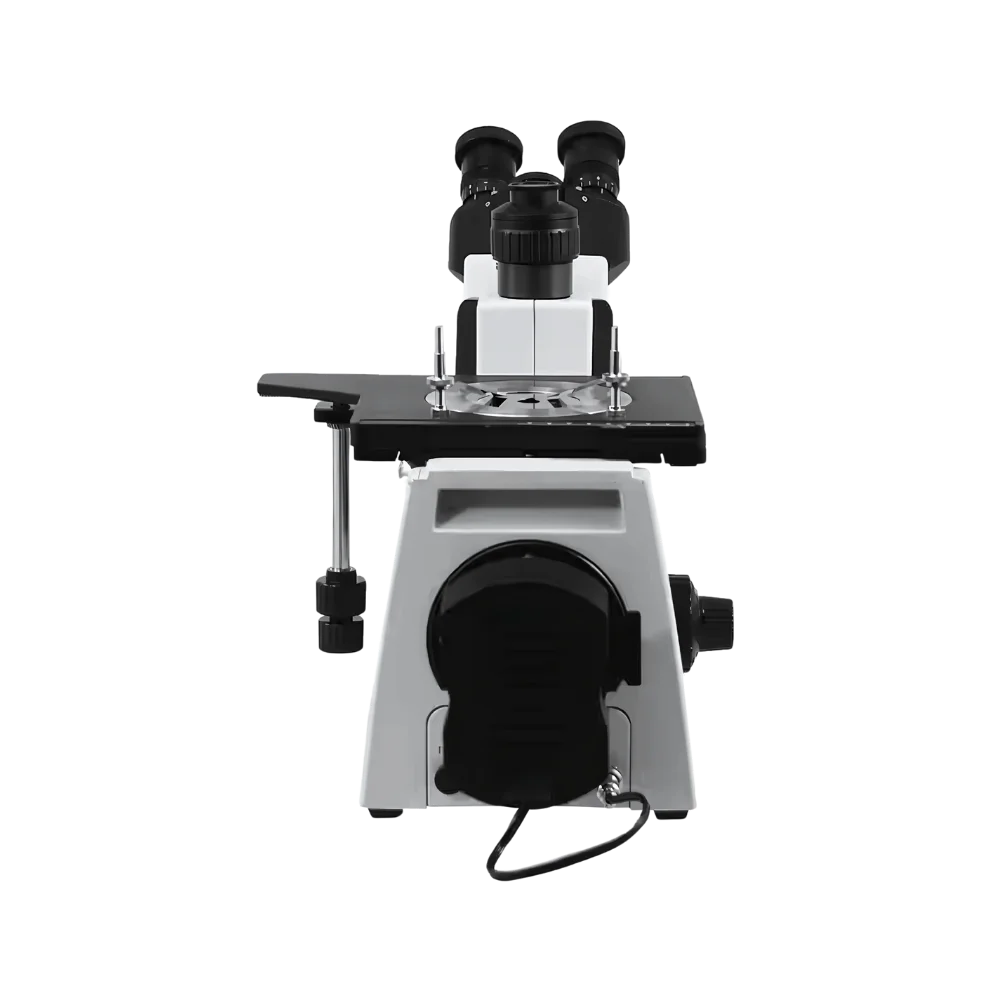

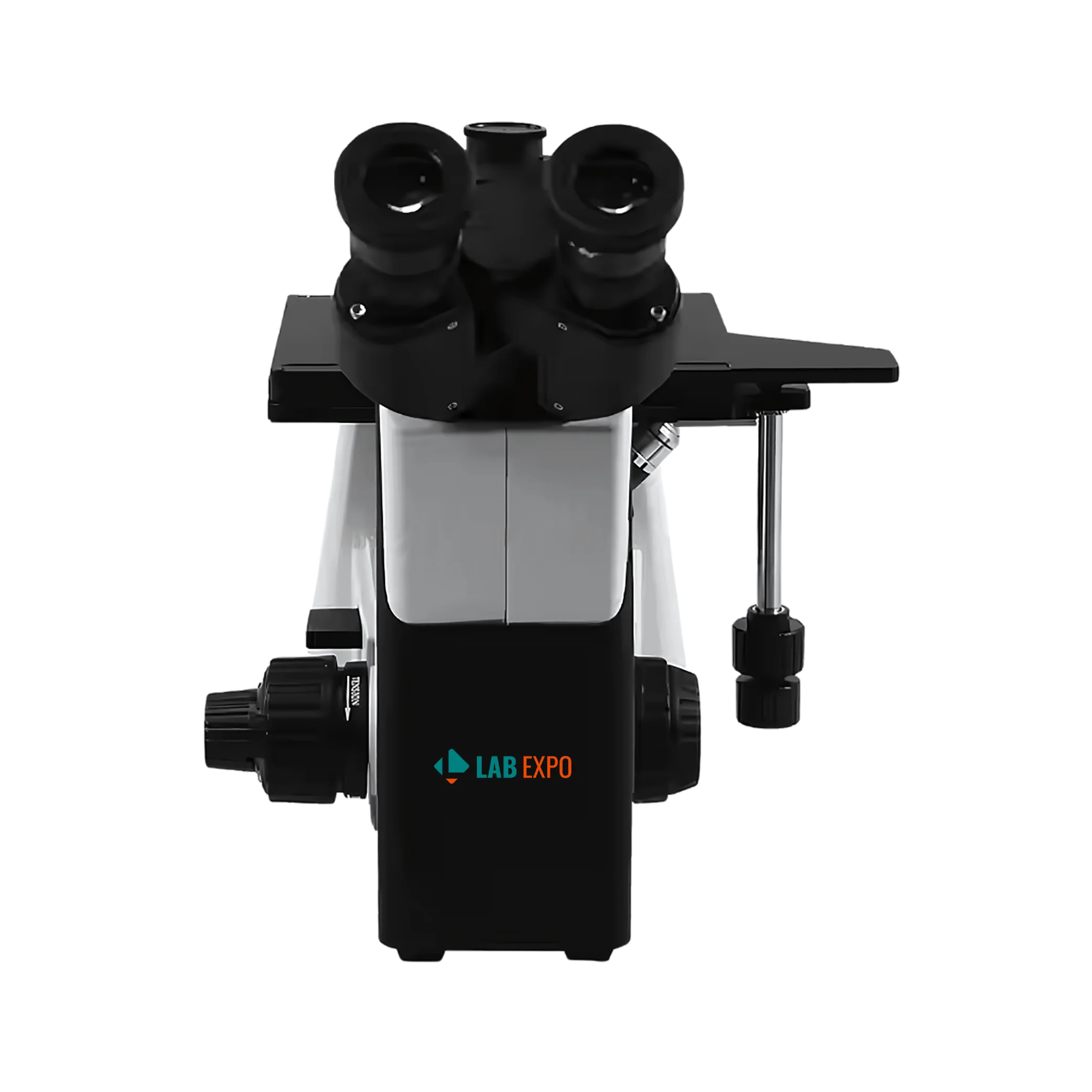

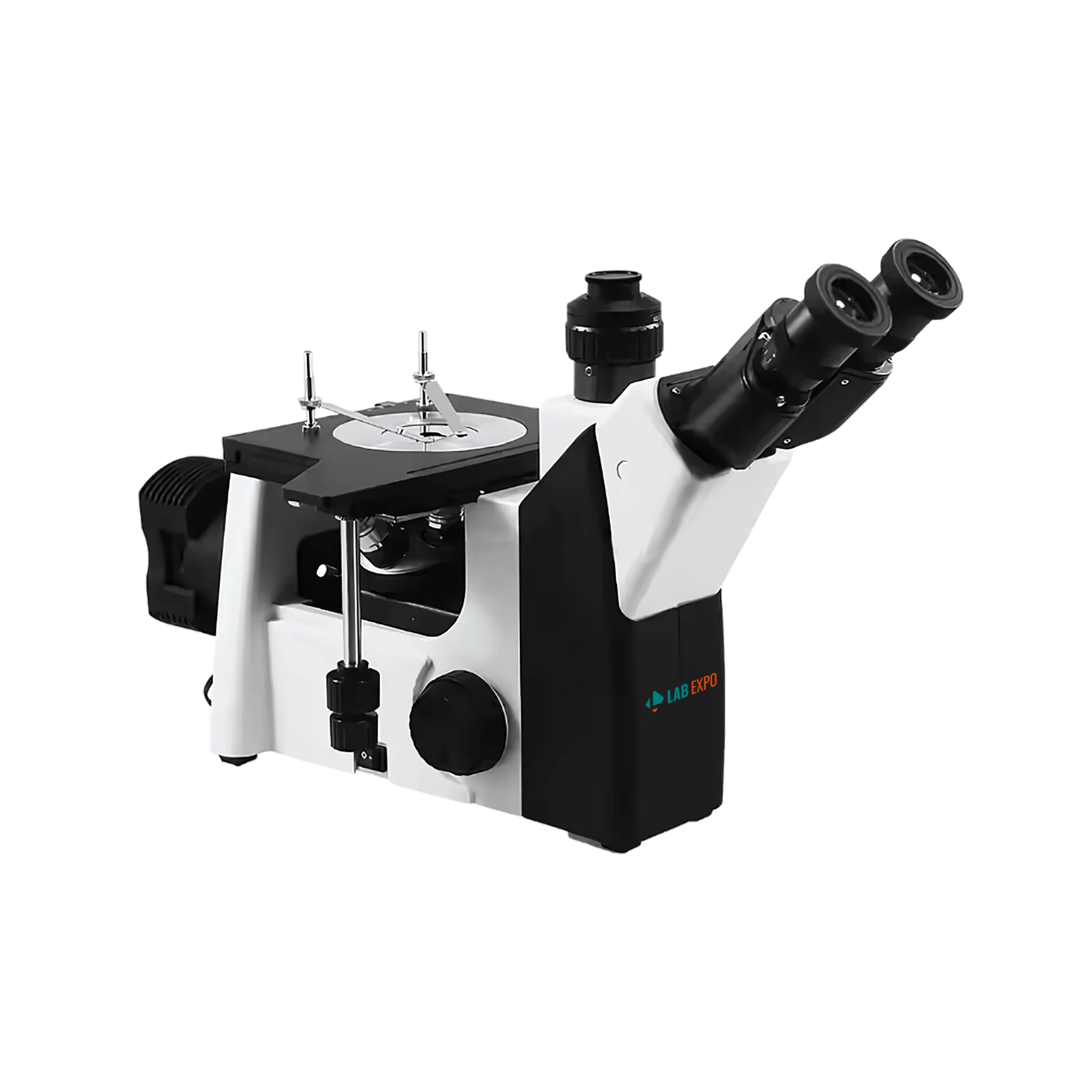

Metallurgical Microscope 45-MMS101 is designed with a 45° inclined trinocular configuration, offering comfortable viewing. It offers high eyepoint wide field plan eyepiece, specifically the PL10X/18mm model. It features smooth coarse and fine adjustment on both sides for precise, easy, and comfortable image clarity. Our metallurgical microscope features an ergonomic design that prioritizes user comfort and efficiency.
Specifications
| Viewing Head | 45° Inclined, Trinocular, Interpupillary Distance Adjustable between 54-75mm Binocular: Trinocular Ratio= 80%: 20% |
| Eyepiece | High eyepoint wide field plan eyepiece PL10X/18mm |
| Objectives | LMPL5X / 0.125, Working Distance 15.5mm LMPL10X / 0.25, Working Distance 8.7mm LMPL20X / 0.40, Working Distance 8.8mm LMPL50X / 0.60, Working Distance 5.1mm |
| Optical System | Finity Color Corrected Optical System |
| Nosepiece | Four-position nosepiece; Five-position nosepiece (optional) |
| Focusing Adjustment | Low position coaxial coarse and fine adjustment system Coarse adjustment stroke: 38mm, Fine adjustment accuracy: 0.02mm |
| Stage | Three-ply mechanical stage, Area 180mm × 155mm Right-hand low position control, Moving range: 75mm × 40mm |
| Stage Plate | Metal stage plate, Center hole diameter φ12mm |
| Illumination | Reflection Koehler illumination With Variable aperture diaphragm and center adjustable field diaphragm Wide range Voltage: 100V-240V, Single 5W warm color LED with continuous intensity |
| Focusing Adjustment | Koehler illumination with variable aperture diaphragm and center adjustable field diaphragm Wide-range voltage 100V-240V, 6V/30W halogen bulb with continuous intensity (optional) |
| Color Filters | Yellow, Green, Blue, and Matte color filters |
| Metallographic Analysis Software | FMIA2020 Metallographic analysis software, Sony chip, 5 million camera devices 0.5X adapter lens interface, High-precision micrometer |
| Dimension | 650×450×600 mm |
| Weight | 20kg |
Features
Applications
Metallurgical Microscope 45-MMS101 is used in the study of the microstructure of metals and alloys and is widely used in Metal and Alloy Manufacturing, Quality Assurance Labs, Research Institutions, Material Science, Maintenance, and Repair
Optional Accessories
Accessory | Description |
Eyepiece PL10X/18mm with optional micrometer | 10X magnification, 18mm field of view, includes micrometer. |
Eyepiece WF15X/13mm with optional micrometer | 15X magnification, 13mm field of view, includes micrometer. |
Eyepiece WF20X/10mm with optional micrometer | 20X magnification, 10mm field of view, includes micrometer. |
Objective LMPL100X/0.80 WD2.00mm | 100X magnification, 0.80 numerical aperture, working distance of 2.00mm. |
Polarizing Kit | Includes polarizer insert, fixed analyzer insert, and 360° rotating analyzer insert. |
HP Computer | High-performance computer suitable for data processing and imaging analysis. |
Lab Expo metallurgical microscopes are intended to inspect, identify, and study metal and alloy structures. They have trinocular heads for easy vision. They have high-point, wide-field eyepieces for thorough observation. They offer improved coaxial coarse and fine focusing adjustments with vertical objective movement. They provide strong and clean illumination using halogen bulbs. They include quintuple nosepieces and infinity plan achromatic targets. Our metallurgical microscopes provide precise and dependable investigation of metallographic materials.
