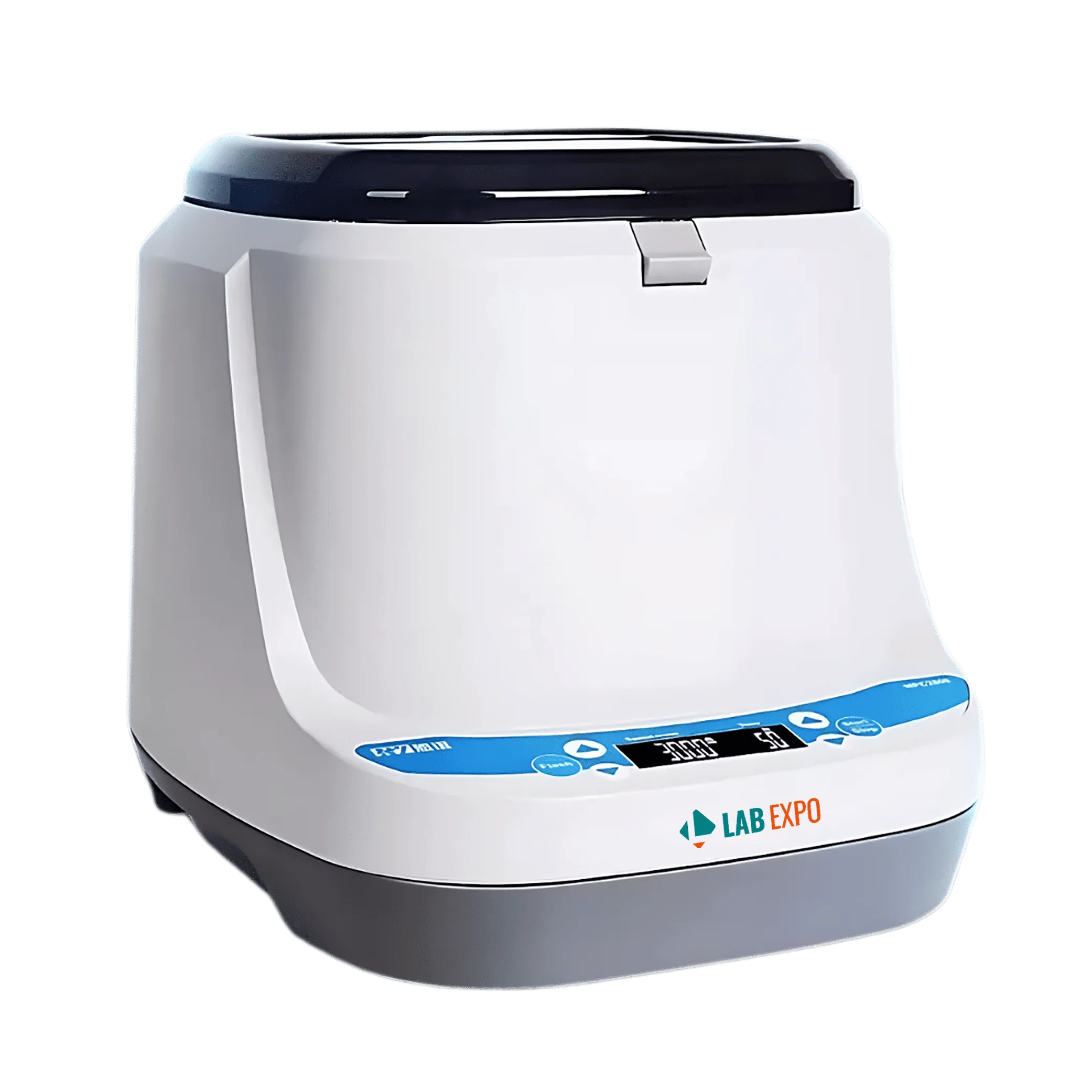

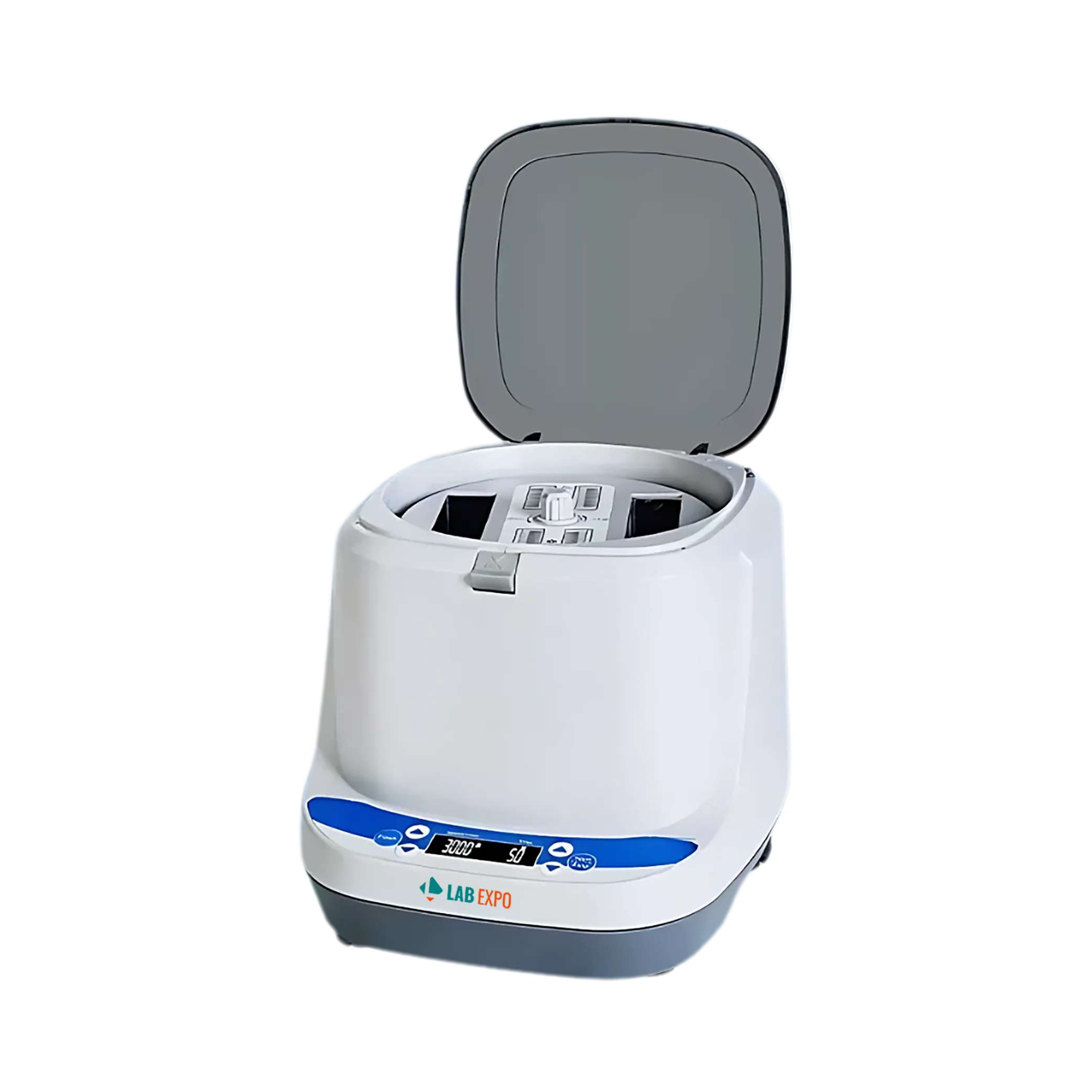

Microplate Centrifuge 02A-MPC100 offers a versatile speed range from 300 to 3000 rpm for precise centrifugation control. It accommodates two 96-hole PCR or enzyme label plates for high-throughput sample processing. It features quick acceleration and deceleration, enabling rapid attainment of maximum speed and faster completion. Our centrifuge is equipped with an LCD screen that displays result codes, providing real-time feedback.
Specifications
| Speed Range | 300 to 3000 ±15 rpm |
| Speed Step Increase | 10 rpm |
| Maximum RCF | 608×g |
| Maximum Capacity | 2×96-hole PCR plate/enzyme label plate |
| Noise Level | 60 dB(A) |
| Allowable Ambient Temperature | +5°C to 40°C |
| Relative Humidity | ≤80% |
| Effective Centrifuge Time | 1 to 99 min, 1 to 59 sec |
| Fastest Acceleration Time | ≤6 seconds |
| Fastest Deceleration Time | ≤5 seconds |
| Misoperation/Alarm Failure | Sound prompt + display code |
| Sample Loading Method | Place vertically downward |
| Display Mode | Highlight LCD |
| Degree of Protection | IP20 |
| Interference Suppression Standard | EN 61010-1, EN 61010-2-020, EN 61326-1, EN 61010-3-2/A2 |
| Input Power | DC24V/2.75A |
| Motor/Drive Mode | DC24V DC brushless variable frequency motor |
| Power Consumption | 55W |
| Dimensions (L×W×H) | 225 mm × 255 mm × 215 mm |
| Weight | 3.9 kg |
Features
Applications
Function Implementation Microplate processing Rapid separation of 96-well and similar formats Sample integrity protection Soft acceleration minimizing splashing or cross-contamination Routine lab workflows Quick setup and straightforward controls Operational safety Imbalance shutdown preventing damage to plates and rotor Bench-top compatibility Quiet, vibration-minimized operation for shared lab spaces
Rotor Selection
Rotor Type | Capacity | Max Speed (rpm) | Max RCF (× g) |
Swing-out Rotor 01 | 2 × 96 Hole | 4000 rpm | 608 × g |
Lab Expo Microplate Centrifuge supports high-throughput centrifugation workflows where simultaneous processing of multiple plates and rapid cycle transitions are required. This centrifuge microplate system operates with digitally regulated speed and time control to manage parallel runs efficiently. Rapid acceleration and deceleration reduce turnaround time, while integrated safety features such as lid protection, overspeed detection, and imbalance monitoring ensure controlled, repeatable operation for routine laboratory processing.
