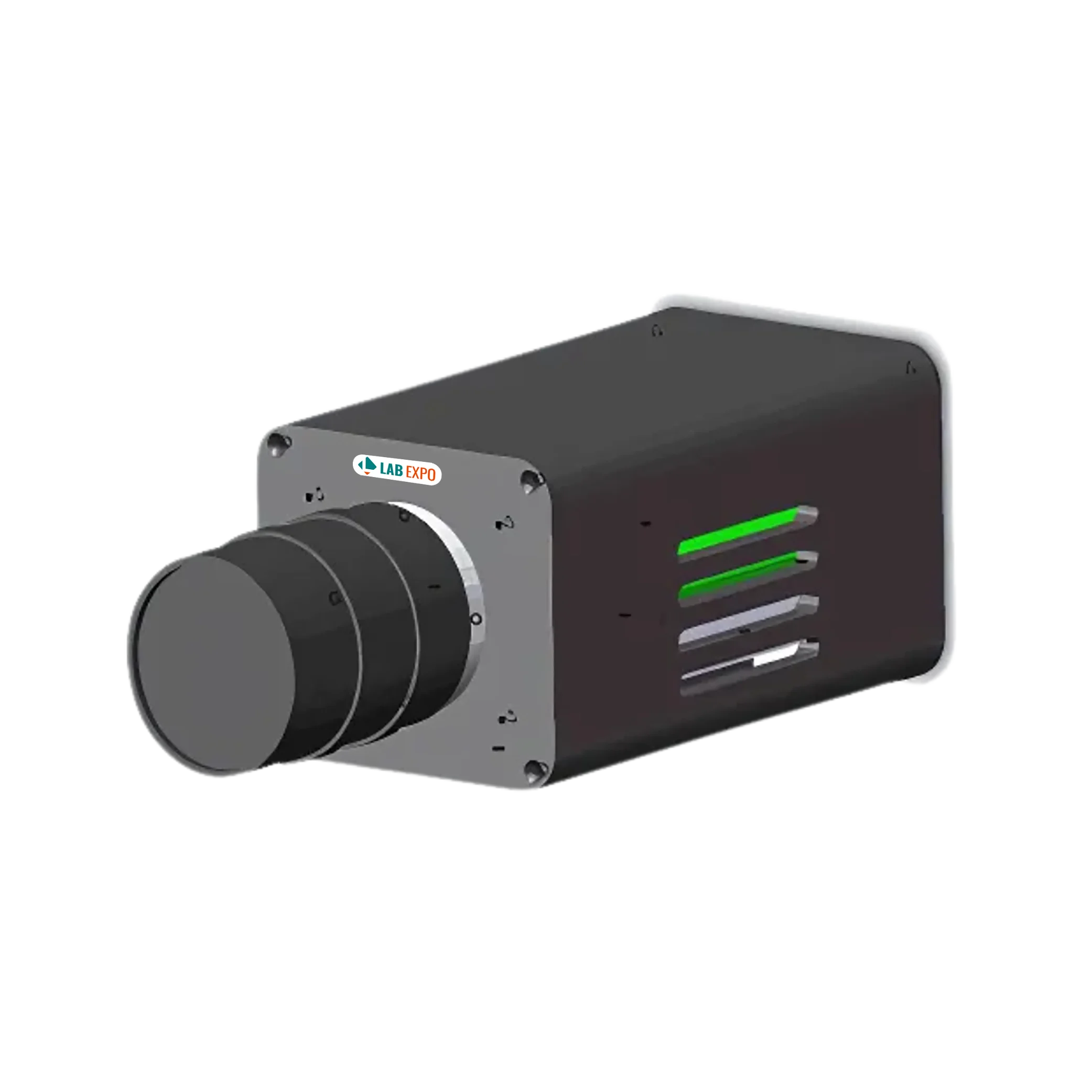

Microscopic camera is adopted with digital image CMOS Sony IMX253 sensor, used to improve low light performance and obtain high resolution images. Its image analysis software includes image previewing, capturing, analyzing, processing and sharing to give user the latest image processing experience.
$10,901.00 $ 9084
Specifications
| Sensor type | CMOS Sony IMX253 sensor |
| Camera type | Black & white or colored camera |
| Sensor size | 1” |
| Resolution | 12 MP |
| Pixel size | 3.1 × 3.1 µm |
| Total active pixels | 4090 × 3072 |
| Frame rate | 40 fps at 4090×3072 |
| Scan method | Progressive scan mode |
| Exposure time | 10 µs to 600 minutes |
| Exposure control | Manual/Auto/Area Exposure |
| Shutter | ESR & global reset |
| Dynamic rate | 66 dB |
| SNR | 24 dB |
| Spectral response range | 350 to 1100 nm |
| Data interface | USB 3.0, up to 56 bps, 1.8 meter cable |
| Power | DC 12V ± 5% |
| Current | Appx. 500 mA |
| White balance | Manual/Auto/Area white balance |
| Product indicator | Power LED , RS 485 communication light |
| Less mount | C- mount |
| Working temperature | 0 to 60°C |
| Working Humidity | 0 to 85 % RH |
| Product Dimension | 29 × 29 × 60 mm |
| Gross weight | 700 g |
Features
Applications
Used for microscopic imaging, visual inspection, and measurement of test specimen across life science, gemology, archeology, forensic science and other industries.
Standard Accessories
| Accessories No. | Name |
|---|---|
| 1 | 1.8 meters USB 3.0 cable |
| 2 | Drive & application CD |
Optional Accessories
| Accessories No. | Name |
|---|---|
| 1 | PCI-E USB3.0 card |
| 2 | USB3.0- Optical fiber |
| 3 | USB3.0- Converter cable |
Lab Expo microscopic cameras include high-resolution sensors that enable detailed picture capturing. They have USB requirements for rapid data transfer and seamless live imaging. These cameras provide a variety of spectral response ranges and progressive scanning modes. They have both automatic and manual white balance controls to improve image quality. These come with image analysis software to capture, analyze, and process pictures. Our tiny cameras provide remarkable performance in research, forensic analysis, and industrial applications.
