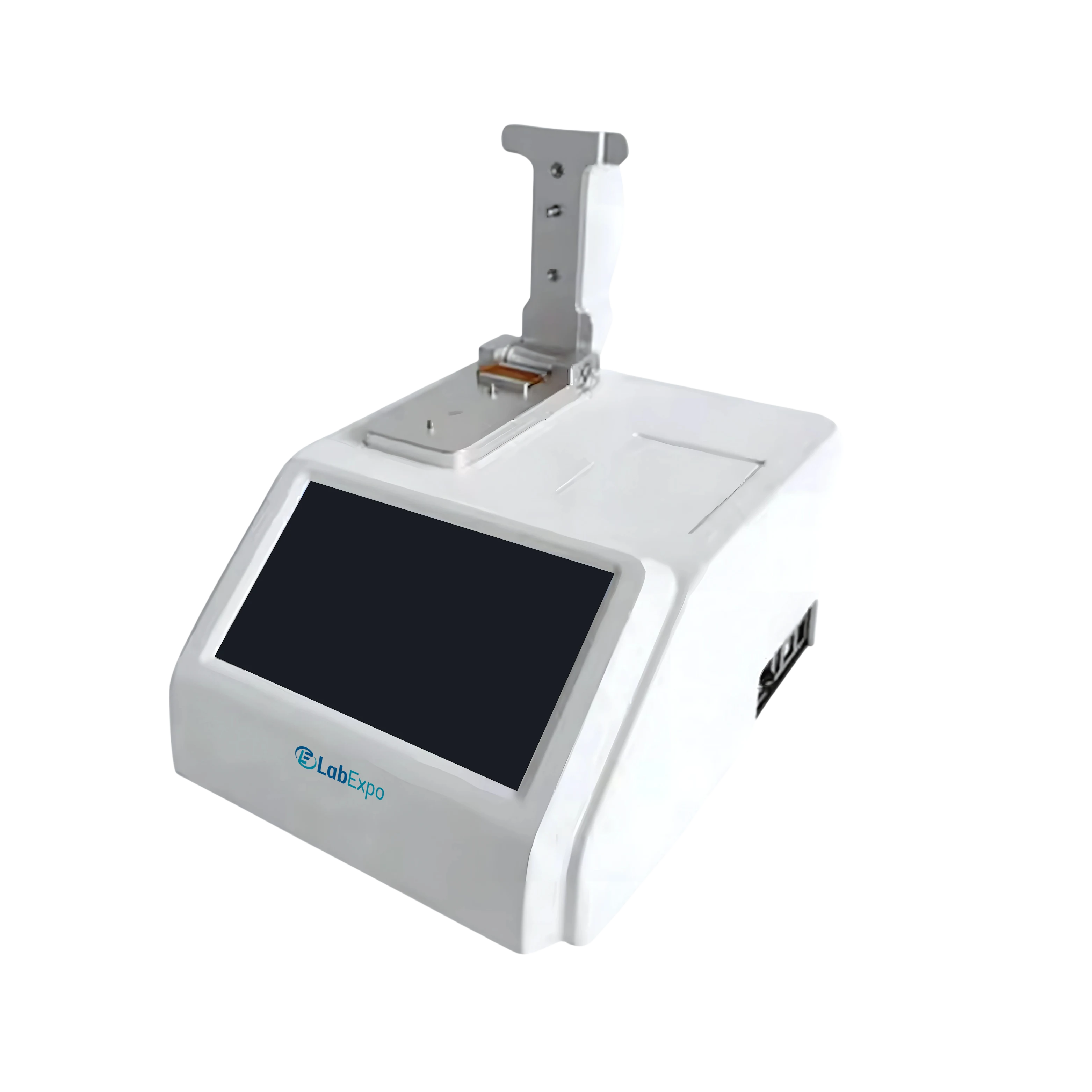

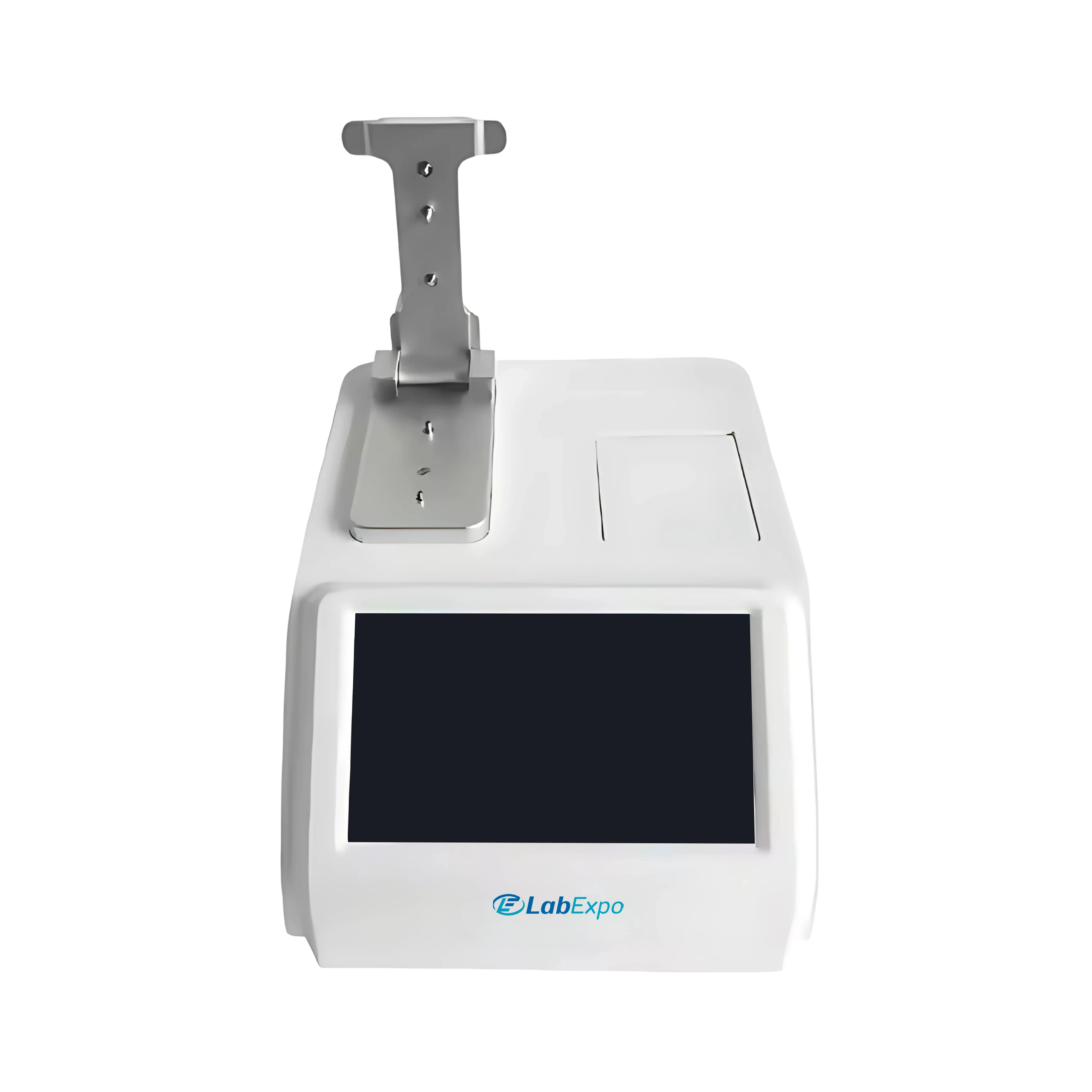

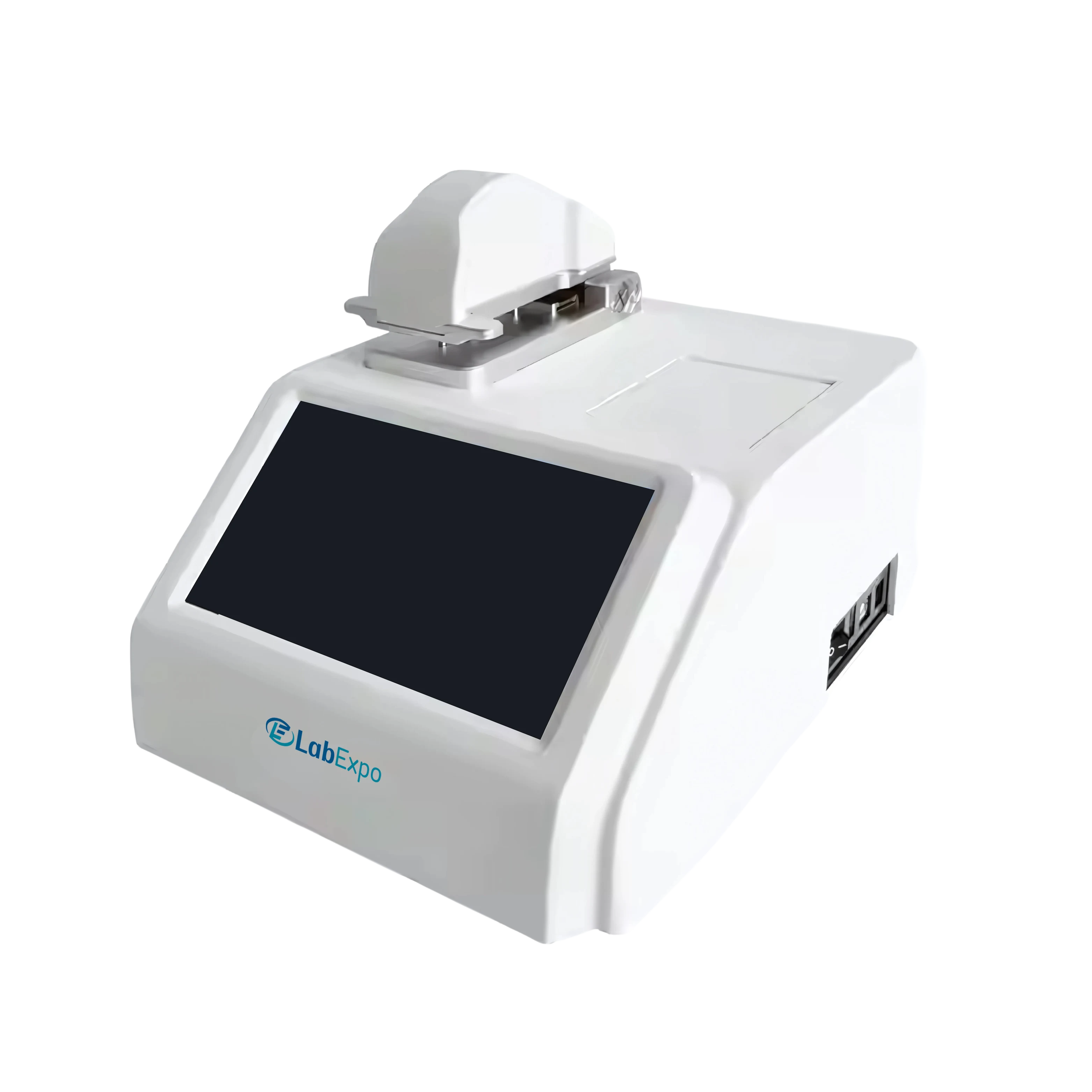

Microspectrophotometer LE-MS101 is optimized for measuring ultra-low sample volumes ranging from 0.5 to 2 µl with high precision. It offers optical path conversion between 1.2 mm, 1.0 mm, and 0.2 mm for enhanced flexibility across sample types. Equipped with a broad wavelength for accurate readings across the spectrum. Our Microspectrophotometer delivers dependable performance in a compact and user-friendly design for modern lab workflows.
Specifications
| Sample Volume | 0.5 to 2 µl |
| Path Length | 0.2mm, 1.0m, 1.2mm |
| Wavelength | 180 to 910 nm |
| Wavelength Accuracy | ± 1 nm |
| Wavelength Precision | ± 0.2 nm |
| Absorbance Accuracy | ±1%（7.332 Abs at 260nm） |
| Absorbance Precision | 0.002Abs |
| Absorbance Range | 0.04 to 90 A (equaled 10mm) |
| Spectral Resolution | ≤ 1.5nm（FWHM @ Hg 253.7nm） |
| Nucleic Acid Detection Range | dsDNA: 2 to 4500ng/µL ssDNA:1.32 to 2970ng/ µL RNA:1.6 to 3600ng/ µL |
| Protein Detection Range | A280: 0.04 to 80.4mg/m1 BSA: 400mg/ml IgG: 290mg/ml Lysozyme: 0.026 to 30.5mg/ml |
| Sample Pedestal | 304 Stainless Steel and Quartz Fiber |
| Data Export | USB |
| Light Source | Xenon Lamp |
| Detector | 2048 -Element Linear Silicon CMOS Array |
| Measurement Time | ＜ 6 seconds |
| Power Adapter | 12 V 4 A |
| Power Consumption | 48W (working) / <6.5W (standby) |
| Dimension | 270 × 210 × 196 mm |
| Weight | 3.3 kg |
Features
Applications
Microspectrophotometer LE-MS101 is extensively used in chemistry, biotechnology, material science, pharmaceutical research, clinical diagnostics, food safety, and environmental monitoring for precise nucleic acid or protein quantification, absorbance analysis, and optical characterization across a wide wavelength range.
Standard Accessories
Lab Expo Microspectrophotometer is designed for high-precision spectral analysis of microscopic samples. Their advanced optics and integrated software enable measurement of absorbance spectra. They provide accurate measurements across a broad wavelength range, supporting diverse analytical requirements. These are integrated with data storage and connectivity options to facilitate seamless data management. Our Microspectrophotometer delivers reliable performance across research, forensic, and quality control environments.
