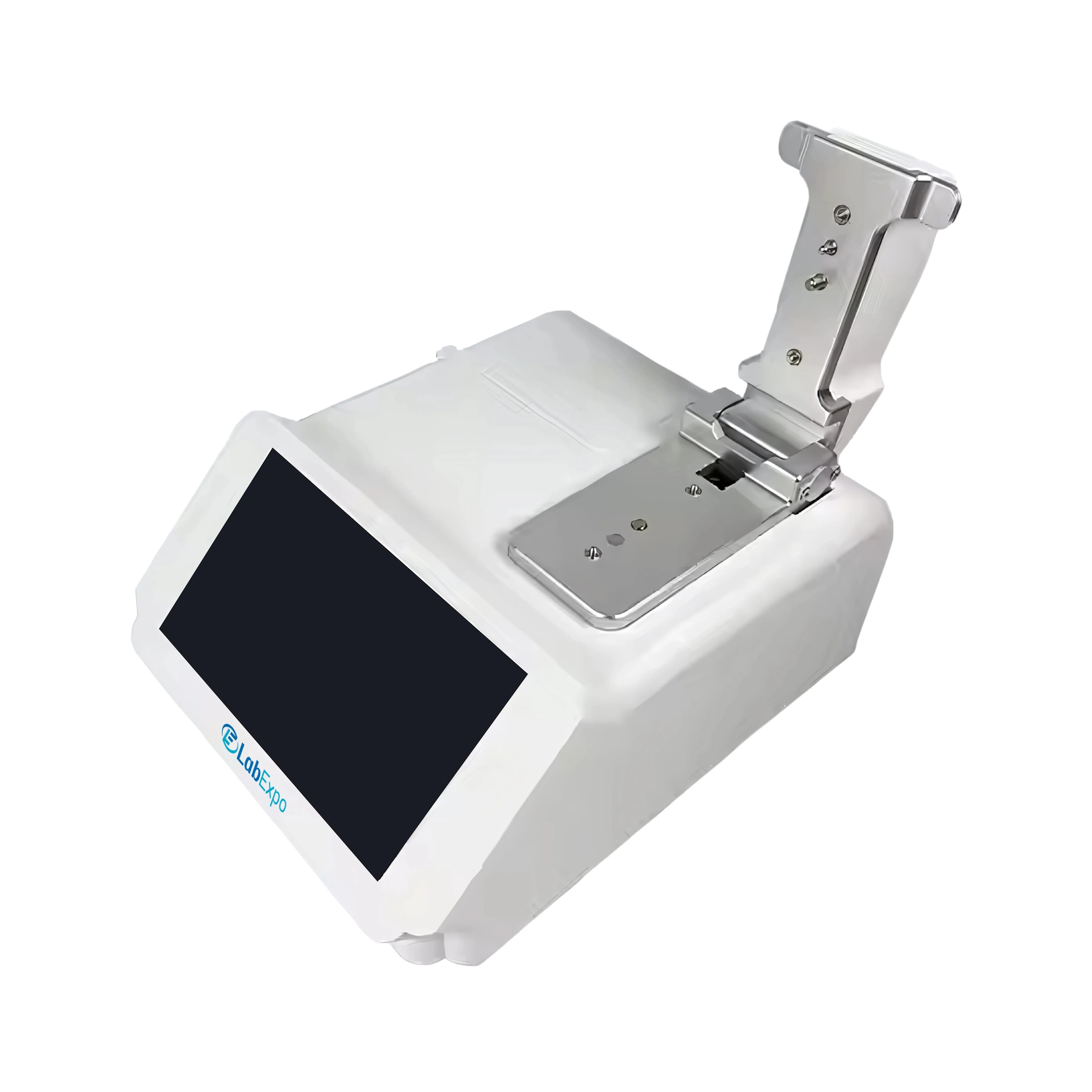

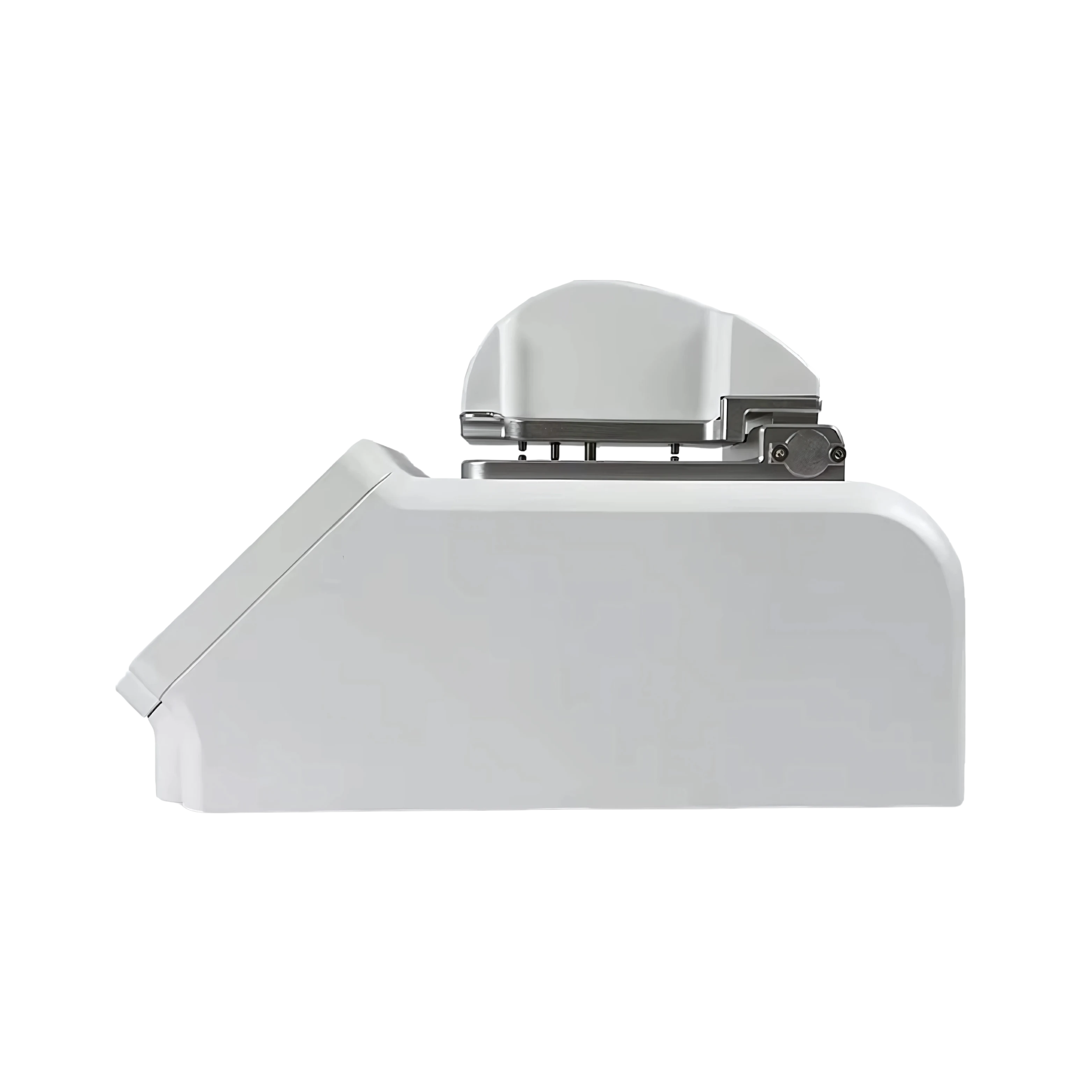

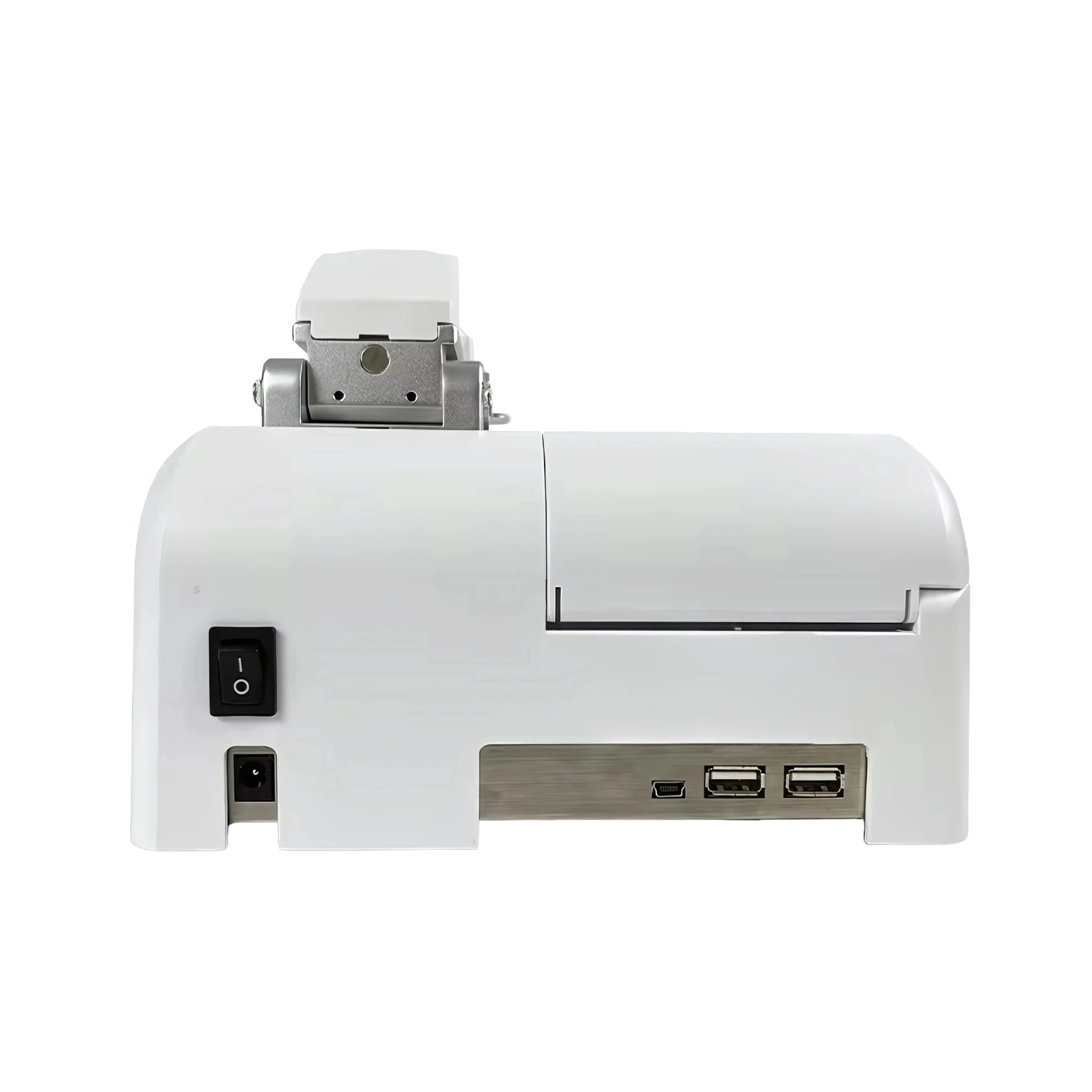

Microspectrophotometer LE-MS103 detects wavelengths ranging from 180 to 910 nm, enabling precise and reliable analysis. It is equipped with a xenon flash lamp that provides stable, high-intensity light. Built in with a 2048-element linear silicon CMOS array detector for rapid processing speed. Our Microspectrophotometer delivers fast and accurate spectral readings.
$7,721.00 $ 6434
Specifications
| Sample Volume | 0.5 to 2.0 µl |
| Path Length | 0.2mm, 1.0m, 1.2mm |
| Wavelength | 180 to 910 nm |
| Wavelength Accuracy | ± 1 nm |
| Absorbance Range | 0.04 to 90 A (equaled 10mm) |
| Absorbance Accuracy | ±1%（7.332 Abs at 260nm） |
| Absorbance Precision | 0.002Abs |
| Spectral Resolution | ≤ 1.5nm（FWHM @ Hg 253.7nm） |
| Nucleic Acid Detection Range | dsDNA: 2 to 4500ng/µL |
| Protein Detection Range | BSA: 120mg/ml IgG: 58.7mg/ml |
| Sample Pedestal | 304 Stainless Steel and Quartz Fiber |
| Light Source | Xenon Flash Lamp |
| Detector | 2048 -Element Linear Silicon CMOS Array |
| Measurement Time | ＜ 6 seconds |
| Operation System | Android |
| Data Export | USB |
| Power Adapter | 12 V 4 A |
| Power Consumption | 48W (working) 5W (standby) |
| Dimension | 270 × 210 × 196 mm |
| Weight | 3.5 kg |
Features
Applications
Microspectrophotometer LE-MS103 is widely used for DNA/RNA quantification, protein concentration analysis, enzyme kinetics and small-volume UV-vis absorbance measurements in biotechnology research, molecular diagnostics, academic laboratories and pharmaceutical development where accuracy, speed and minimal sample volume are essential.
Lab Expo Microspectrophotometer is designed for high-precision spectral analysis of microscopic samples. Their advanced optics and integrated software enable measurement of absorbance spectra. They provide accurate measurements across a broad wavelength range, supporting diverse analytical requirements. These are integrated with data storage and connectivity options to facilitate seamless data management. Our Microspectrophotometer delivers reliable performance across research, forensic, and quality control environments.
