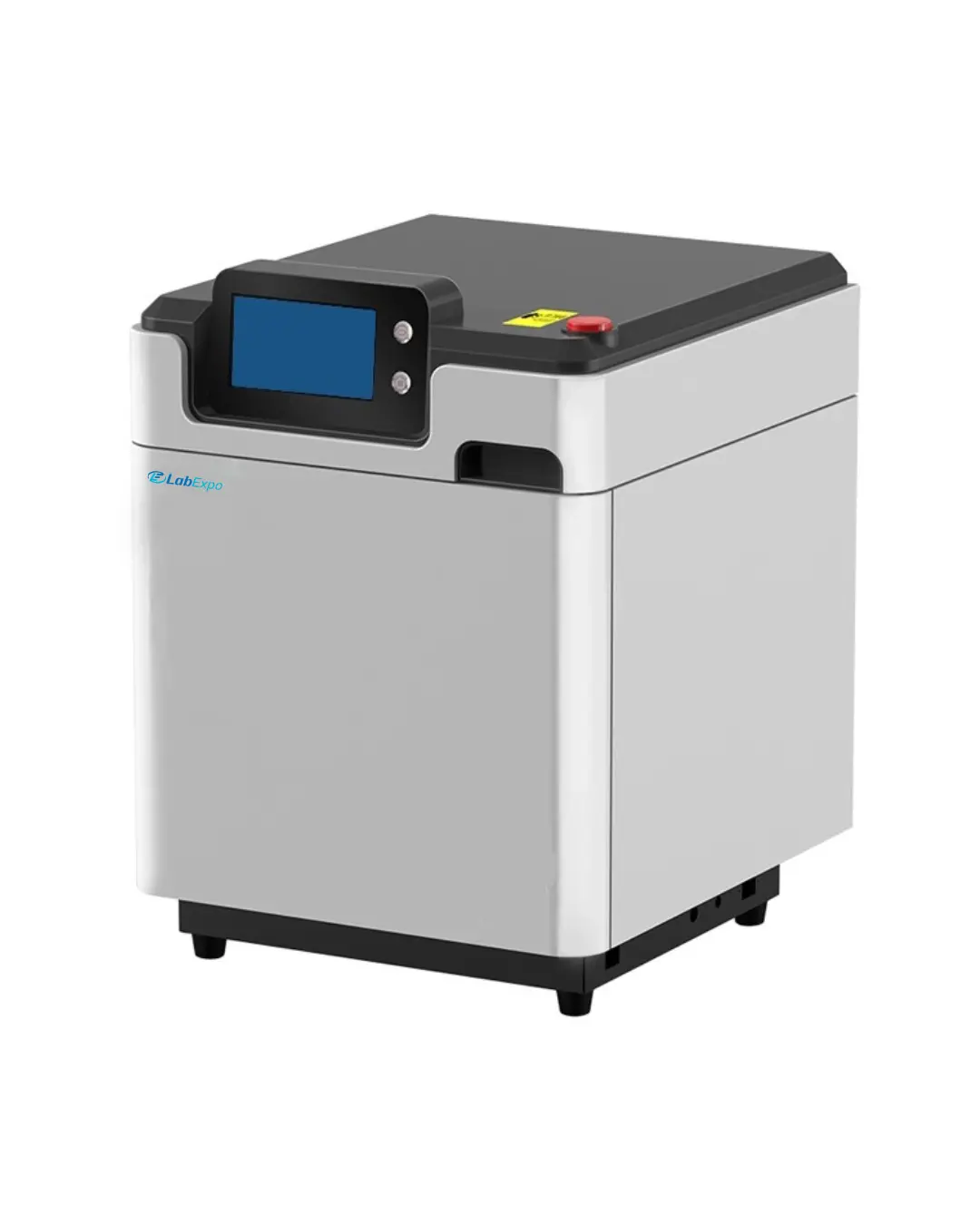

Microwave Digestion System LE-MDS101 supports a maximum working pressure of up to 6 MPa to ensure robust operation. Equipped with 8 high-performance vessels, allowing simultaneous sample processing. Features a contactless pressure sensor for accurate and safe pressure measurement. Built with color touch screen for intuitive and user-friendly control. Our Microwave Digestion System delivers reliable and efficient sample digestion for modern laboratory needs.
Specifications
| Vessel Quantity | 8 |
| Pressure Monitoring | Contactless Pressure Sensor |
| Max. Working Pressure Range | 6 MPa |
| Temperature Monitoring | Contactless IR Sensor |
| Max. Working Temperature | 250℃ |
| Temperature Accuracy | ±0.1℃ |
| Vessel Volume | 100 mL |
| Display | 7 inches Color Touch Screen |
| Rotation | 360° Continuous Rotation |
| Microwave Power | 0 to 1000W (Adjustable) |
| Microwave Frequency | 2450 MHz |
| Cavity Volume | 35 L |
| Microwave Leakage | <5 mW/cm2 |
| Power | AC 220V±10%, 10A, 50/60Hz |
| Dimension | 490 × 560 × 630 mm |
| Weight | 47 kg |
Features
Applications
Microwave Digestion System LE-MDS101 is ideal for precise and efficient sample digestion in environmental analysis, food safety testing, pharmaceutical research, and materials science laboratories.
Optional Accessories
Sample Pretreatment/Acid-removing Heating Equipment (Heating Blocks), set of 12
1: How many vessels does the LE-MDS101 model support?
The LE-MDS101 supports up to 8 high-performance digestion vessels, allowing efficient batch sample processing.
2: What is the maximum working pressure of the system?
The system supports a maximum working pressure of 6 MPa, ensuring robust and reliable operation.
3: How is temperature and pressure monitored during digestion?
The system uses contactless infrared sensors for temperature and contactless pressure sensors for real-time pressure monitoring, ensuring safe and accurate readings.
4: Does the system feature any safety mechanisms?
Yes, it includes an explosion-proof cavity, electromagnetic protection design, and high-power turbulent air cooling to ensure safe operation.
5: Can the system be used for different types of sample analysis?
Absolutely. It is ideal for environmental testing, food safety analysis, pharmaceutical research, and materials science applications.
6: What is a Microwave Digestion System?
A microwave digestion system is a laboratory instrument that uses microwave energy to rapidly heat and break down sample materials in sealed vessels for subsequent elemental analysis.
7: How does the auto-vent and self-resealing mechanism work?
This feature allows vessels to automatically release excess pressure in case of overpressure and then instantly reseal, minimizing the risk of accidents and preserving sample integrity.
8: What is the advantage of contactless monitoring?
Contactless sensors reduce the risk of sample contamination and wear, while improving measurement precision and safety during digestion.
9: Are different models available under this category?
Yes, Lab Expo offers a range of microwave digestion systems with varying vessel capacities, power outputs, and automation features tailored to diverse laboratory needs.
10: What applications is this system suitable for?
It is ideal for sample digestion in applications such as TOC analysis, TIC/TC/TOC measurement, chemical digestion, inorganic and organic compound digestion, and elemental testing across various scientific disciplines.
Lab Expo Microwave Digestion System is designed for batch experiments with support for up to 40 high-performance digestion vessels. They feature an auto-vent and self-resealing mechanism to safely release excess pressure and instantly reseals. Their temperature and pressure monitoring system delivers accurate, real-time measurement. They provide large storage capacity to enable flexible and efficient workflow management. Our Digestion System avoids cross-contamination and enables precise tracking of digestion conditions.
