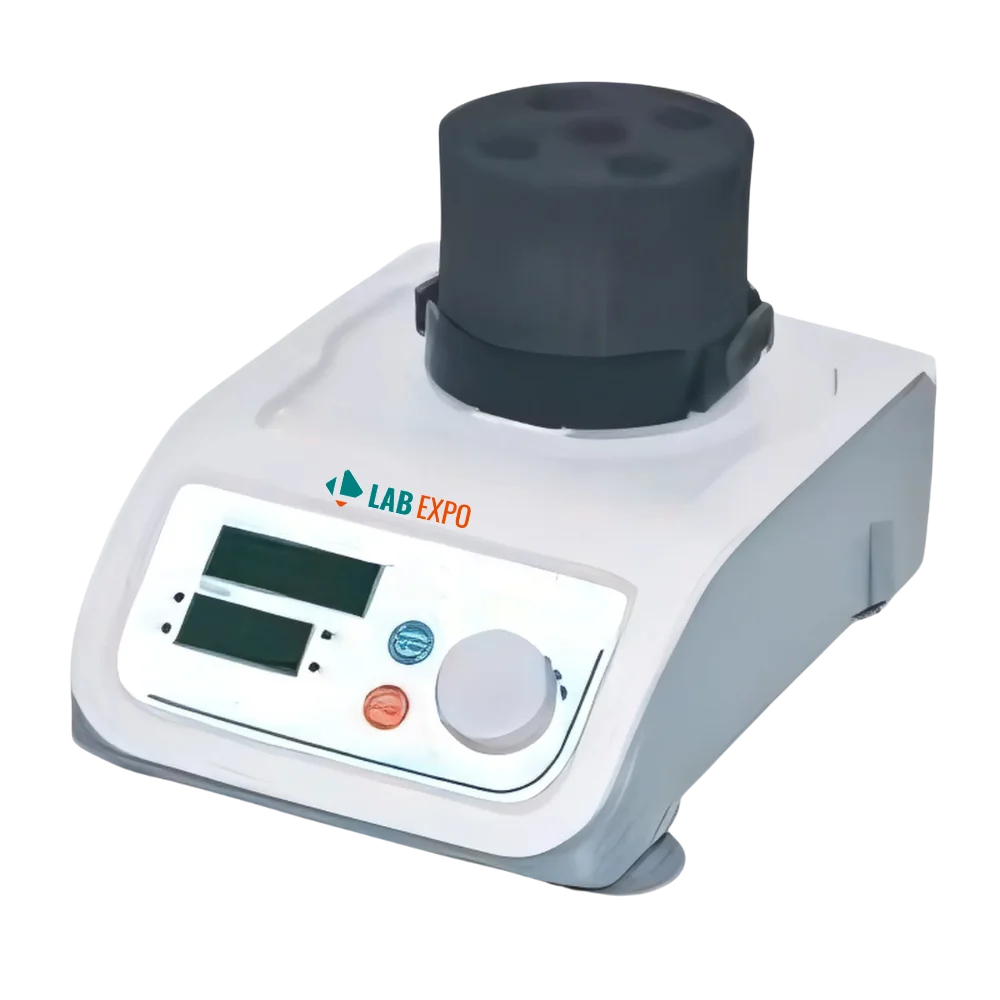

Multi-Function Vortex Mixer 3000-MFVM100

Multi-Function Vortex Mixer 3000-MFVM100

Multi-Function Vortex Mixer 3000-MFVM100 operates with a speed range of 200 to 3000 rpm, providing gentle agitation and high-speed mixing. It has an IST analysis system for precise control and reliable operation. It features an operation mode with touch push and continuous options for versatile function. Our multi-function vortex mixer features an LED digital tube for clear visibility and precise monitoring.

$1,896.00 $ 1580

Specifications

Max Load 1.5 kg
Speed Range 200 to 3000 rpm ± 15
Shaking Mode Orbital
Motor/Drive Mode DC24V Permanent magnet brushless motor / direct drive
Control Mode PWM stepless frequency conversion speed regulation
Operation Mode Touch push / Continuous mode
Speed Function/Display Full segment / high-brightness LED digital tube
Time Function/Display Digital timing: 1s–999min countdown, jog positive timing / high-brightness LED digital tube
Orbital Diameter (mm) 4.6
Fastest Acceleration Time ≤3s
Fastest Deceleration Time ≤3s
Power Fuse PPTC / resettable fuse / no need to replace
Power Consumption 18 W
Power Supply AC 100 to 250V / 50/60Hz
Exterior Dimensions (mm) 198 x 138 x 67
Packing Dimensions (mm) 315 x 190 x 220
Net Weight (kg) 4.1 kg
Gross Weight (kg) 5.5 kg

Features

  • High-Efficiency Motor
  • Brushless Design
  • Fast Acceleration and Deceleration
  • Compact structure
  • Smooth and simple operation
  • Durable construction
  • Overheating protection

Applications

Multi-Function Vortex Mixer is used for fixing, shaking, and mixing various reagents, solvents, and chemical substances. It is widely used in biochemistry, genetic engineering, medicine, and other experimental needs.

Standard Accessories



Name

Standard Gasket

Flat Bottom Flask Fixtures

Microplate Holder

φ10mm*30Hole Test Tube Gasket

φ17mm*5Hole Test Tube Gasket

φ12/13mm*16Hole Test Tube Gasket

Optional Accessories

Name

φ15mm*12Hole Test Tube Gasket

PCR0.2ml*8 Even Tube or 0.2ml Test Tube PCR96Hole Plate Use Test Tube Gasket

φ17mm*12Hole Test Tube Gasket

50ml*2Hole Test Tube Gasket

φ25mm*4Hole Test Tube Gasket

Catalog

Multi-Function Vortex Mixer 3000-MFVM100 Catalog
