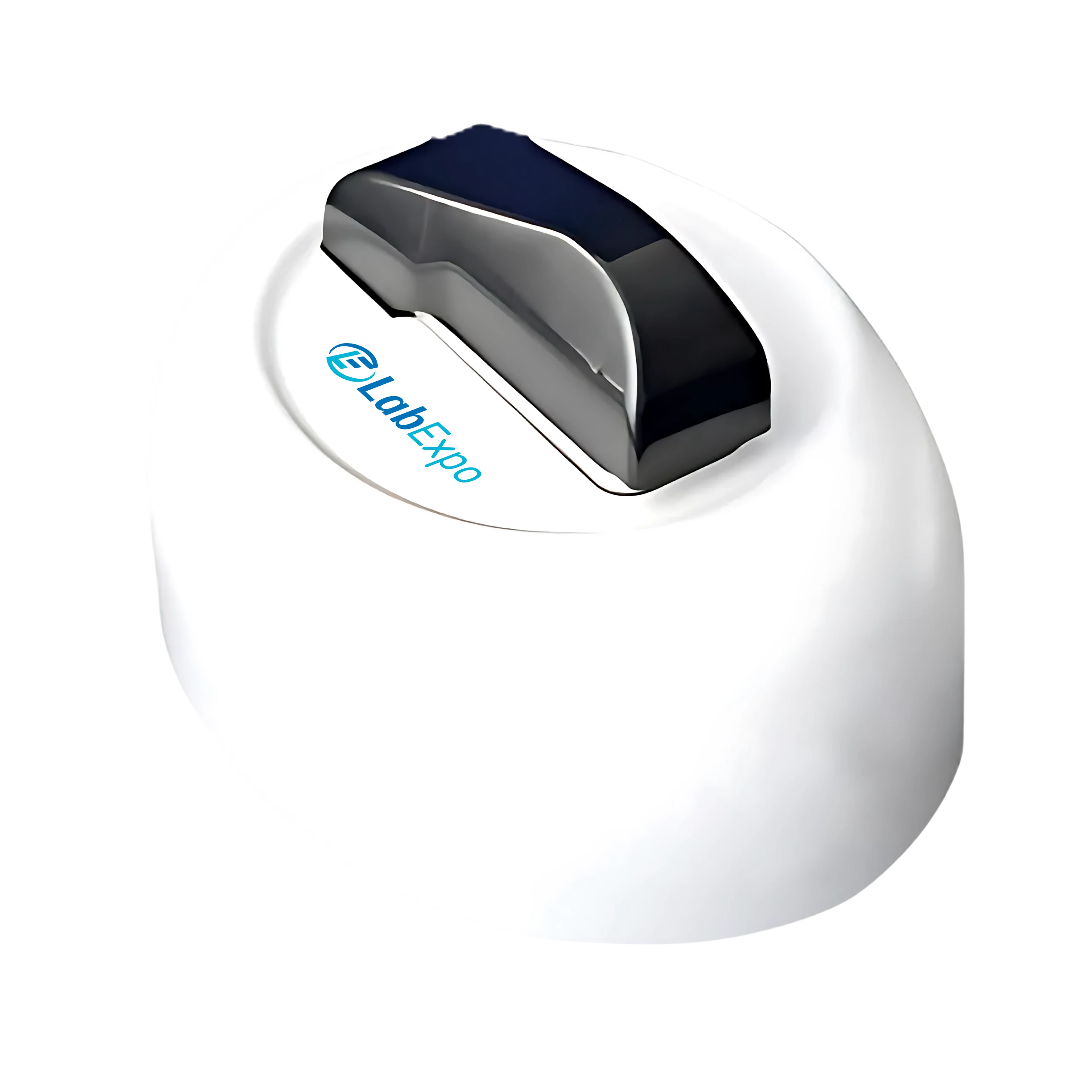

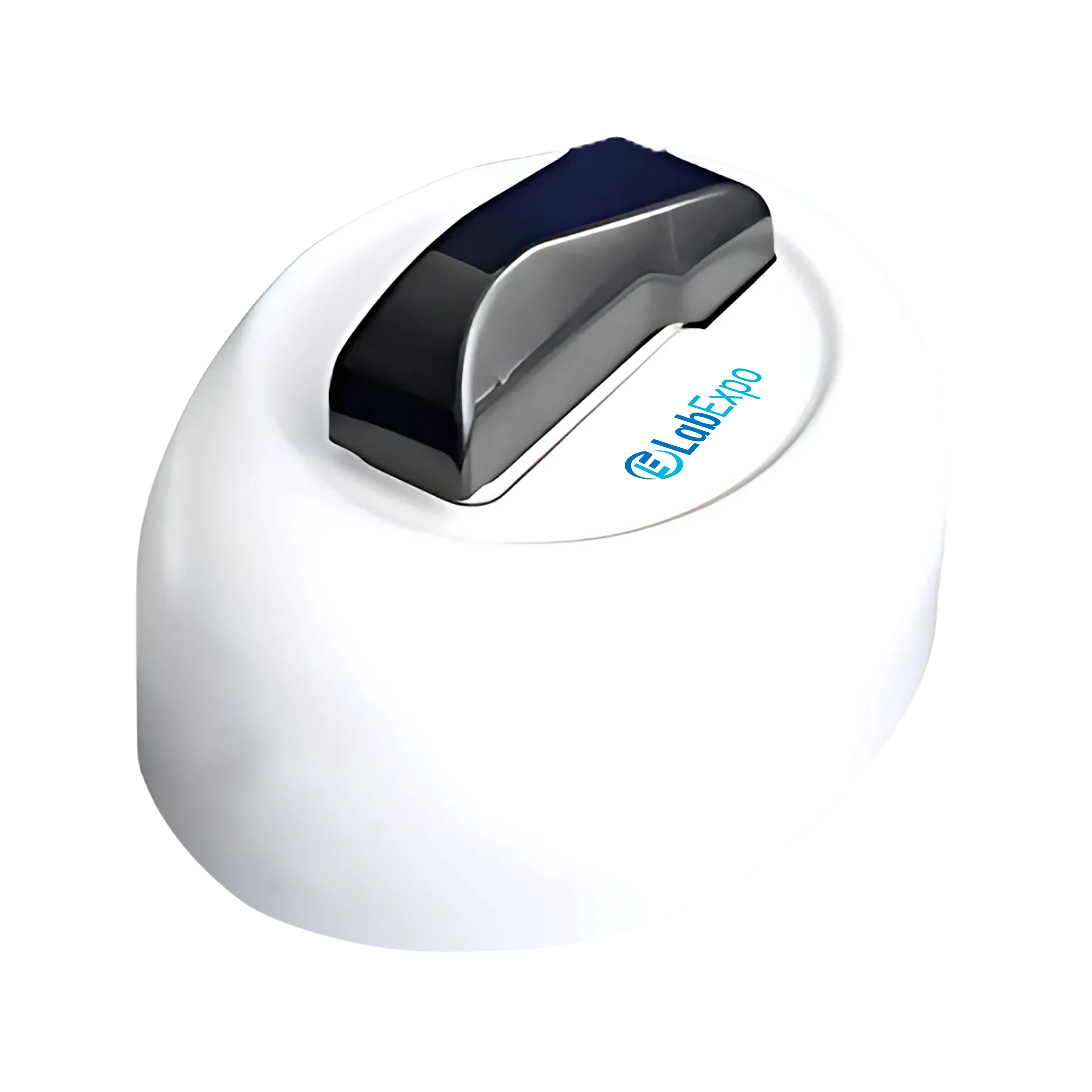

Nano Spectrophotometer with full spectrum light covers a wide wavelength range of 200 to 850 nm. It requires only 0.3 - 2 µl sample for measurement which takes place within 5 seconds. It uses Xenon flash lamp as light source which has high stability and long operating life.
Specifications
| Wavelength range | 200 - 850 nm |
| Path length | 1 mm, 2 mm, 5 mm, 10 mm |
| Wavelength accuracy | ± 1 nm |
| Wavelength Resolution | 2 nm (FWHM at Hg 546 nm) |
| Minimum Sample size | 0.3 - 2.0 µl |
| Absorbance range | 0.002 ~ 75 A (150, 300 optional, 10mm equivalent absorbance) |
| Absorbance precision | 0.002 Abs |
| Absorbance accuracy | 1 % (0.76 absorbance at 350 nm) |
| Light source | Xenon flash lamp |
| Measurement time | < 5 s |
| Detector Type | 2048-element linear silicon CCD |
| Detects nucleic acid up to | 2 - 3750 ng/µL (7500,15000 optional, dsDNA) |
| Detects protein up to | 0.1 - 100 mg/mL (200,400 optional, BSA) |
| Dimension | 210 x 170 x 110 mm |
| Weight | 1.35 kg |
Features
Applications
Nano spectrophotometer are used in detection of micro volume quantities of DNA/RNA and chemicals , liquids and its components in laboratory, food industries, chemistry, microbiology, medicine research and development.
Lab Expo Nano Spectrophotometers measure light intensity across different wavelengths to determine the absorbance and transmittance of samples. They are designed for quick and precise micro-volume sample analysis. These advanced instruments are equipped with a high-performance detector and a stable light source, providing accurate results. They handle micro-volume sampling with precision, requiring only a minimal amount, and delivering precise measurements. These are equipped with a 3864-element linear silicon CCD array detector, ensuring high sensitivity and accuracy. They are integrated with long-life xenon flash lamps for extended use and reliable performance. These feature a user-friendly interface along with a digital display and intuitive controls for easy operation.
