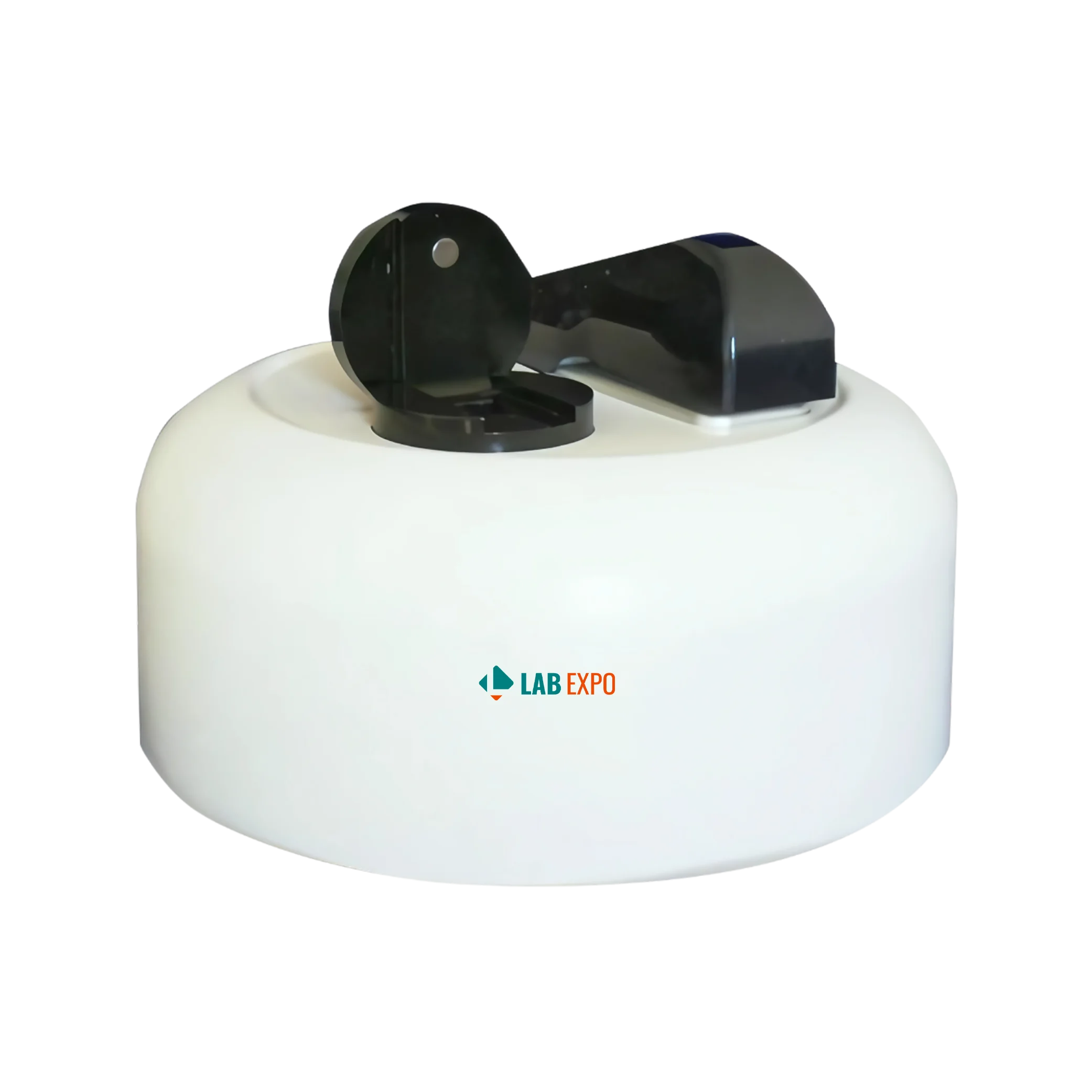

Nano Spectrophotometer 15A-NSP102

Nano Spectrophotometer 15A-NSP102

Nano Spectrophotometer 15A-NSP102 is micro volume UV spectrophotometer which takes measurements at 230 nm, 260 nm, 280 nm. It utilizes CCD detector, Xenon flash lamp as light source which has high stability and long operating life. They are used to detect micro volume quantities of nucleic acids and other concentrated or dilute components is specially designed to analyze the concentration of pure of nucleic acid. The data can be printed with built in printer and can be transferred via SD- RAM card or USB. It requires only minimal amount of sample for accurate measurement.

Specifications

Wavelength range 200 to 850 nm
Path length 1 mm, 2 mm, 5 mm, 10 mm
Wavelength accuracy ± 1 nm
Wavelength Resolution 2 nm (FWHM at Hg 546 nm)
Minimum Sample size 0.3 to 2.0 µl
Absorbance range 0.00 2 to 75 A (150, 300 optional, 10mm equivalent absorbance)
Absorbance precision 0.002 Abs
Absorbance accuracy 1 % (0.76 absorbance at 350 nm)
Light source Xenon flash lamp
Measurement time < 5 s
Detector Type 2048-element linear silicon CCD
Detects nucleic acid up to 4 to 3750 ng/µL (7500,15000 optional, dsDNA)
Detects protein up to 0.01 to 100 mg/mL (200, 400 optional, BSA)
Dimension 240 x 210 x 110 mm
Weight 1.92 kg

Features

  • Wavelength measurement at 230 nm, 260 nm, 280 nm
  • 0.5 µl - 2.0 µl micro-volume sample for direct measurement onto pedestal
  • Rapid measure speed
  • Touch screen & panel operations with user friendly software
  • Long life Xenon flash lamp (10 flashes up to 10 years)
  • Highly concentrated samples can be used
  • Direct Concentration display
  • No cell or cuvettes are required
  • No necessary of PC

Applications

Nano spectrophotometer are used in detection of micro volume quantities of DNA/RNA and chemicals , liquids and its components in laboratory, food industries, chemistry, microbiology, medicine research and development.

Catalog

Nano Spectrophotometer 15A-NSP102 Catalog

Related Models Of Nano spectrophotometer

Lab Expo Nano Spectrophotometers measure light intensity across different wavelengths to determine the absorbance and transmittance of samples. They are designed for quick and precise micro-volume sample analysis. These advanced instruments are equipped with a high-performance detector and a stable light source, providing accurate results. They handle micro-volume sampling with precision, requiring only a minimal amount, and delivering precise measurements. These are equipped with a 3864-element linear silicon CCD array detector, ensuring high sensitivity and accuracy. They are integrated with long-life xenon flash lamps for extended use and reliable performance. These feature a user-friendly interface along with a digital display and intuitive controls for easy operation.
