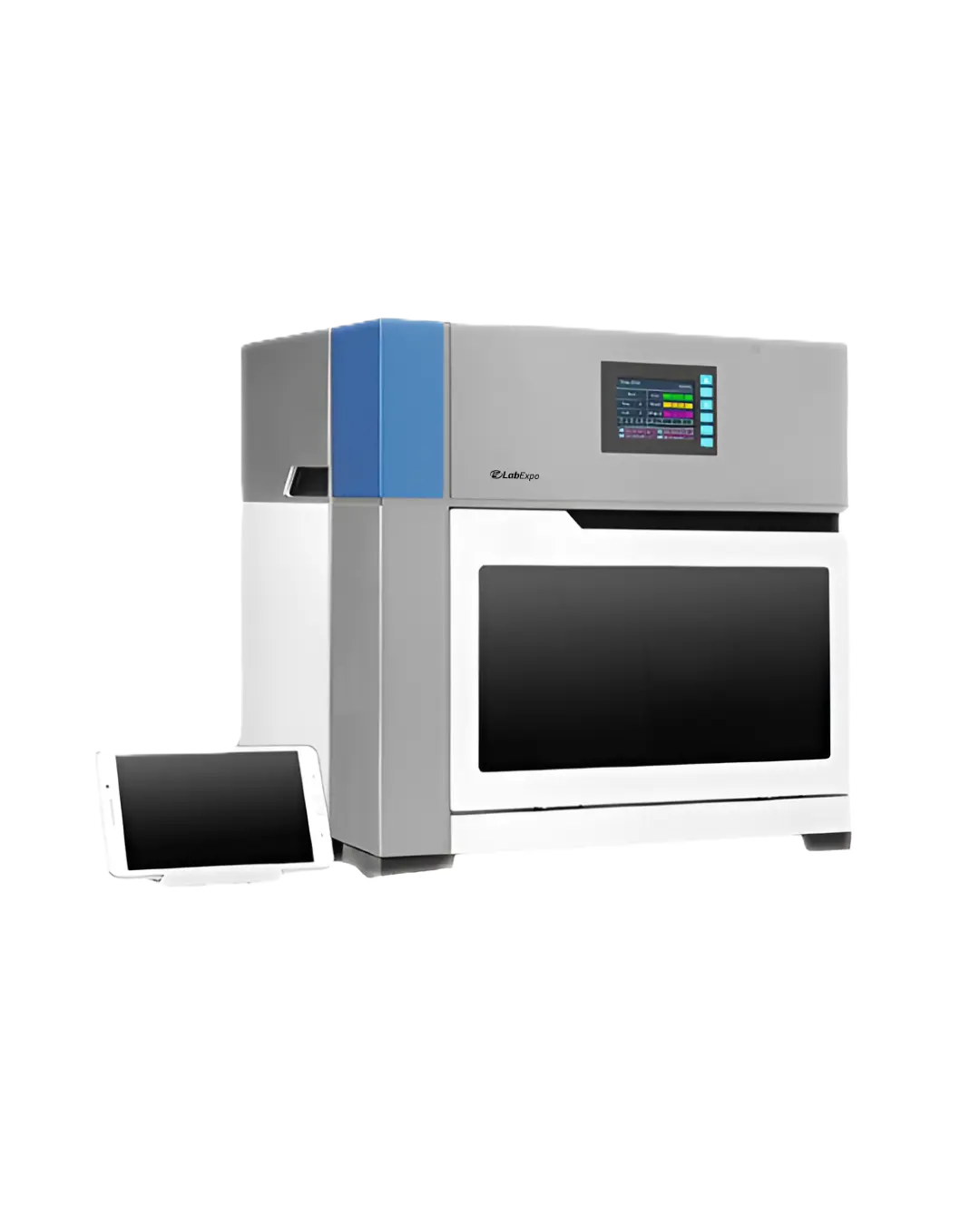

Nucleic Acid Extractor LE-NAE101 offers a processing volume range from 30 to 1000 μl for low and high-throughput sample. Features multi-modes and multi-gears mixing to enable efficient nucleic acid extraction. Built-in UV disinfection module to ensure a sterile working environment. Supports remote control via android devices and on-device operation through screen and buttons. Our Nucleic Acid Extractor comes with magnetic beads-based extraction kits for high-purity nucleic acid isolation.
Specifications
| Processing Volume | 30 to 1000 μl |
| Sample Volume | 200 μl |
| Magnetic Bead Residue | ≤ 1% |
| Applicable Consumables | 96-Well Plates. 6- Tube Strips |
| Heating Temperature | Lysis Heating: RT to 120℃ Elution Heating: RT to 120℃ |
| Operating Temperature Range | 10 to 30℃ |
| Operating Humidity Range | 20% to 85% |
| Mixing Mode | Multi-Modes and Multi-Gears Mixing |
| Reagent Type | Magnetic Beads-Based Extraction Kits |
| Operation Mode | A. Remote Control via Smart Phone /Tablet (Android System) B. Screen/Button Operation |
| Experimental Storage | Up To 15 Sets of Programs Can Be Stored in The Instrument Android Applications Can Store > 500 Programs |
| Program Management | Programs can be created, edited, applied and deleted with high flexibility |
| Contamination Control | Built-in UV disinfection module |
| Power Failure Protection | In the event of an unexpected power failure, there are options available whether or not to continue the experiment |
| Connection Port Type | USB, Ethernet, USB Type-B |
| Network Connection | Mobile/Tablet Wifi Remote Control; Ethernet Remote Control Applicable |
| Power Consumption | 600 W |
| Power Supply | AC 100-240V, 50/60+1Hz; |
| Instrument Dimensions | 435 × 440 × 445 mm |
| Net Weight | 31.5 kg |
Features
Applications
Nucleic Acid Extractor LE-NAE101 is ideal for applications in clinical diagnostics, genetic research, forensic analysis, and molecular biology requiring efficient and contamination-free nucleic acid extraction.
1: What kind of extraction technology does it use?
It uses magnetic beads-based extraction kits for high-purity nucleic acid isolation.
2: Does it support remote operation?
Yes, it supports remote control via Android smartphones or tablets, in addition to on-device screen and button operation.
3: How many programs can be stored?
The extractor can store up to 15 sets of programs onboard, while the Android application can manage over 500 programs.
4: How does the device prevent contamination?
It features a built-in UV disinfection module that sterilizes the chamber, reducing the risk of cross-contamination.
5: What ports and connections are available?
The system includes USB, USB Type-B, and Ethernet ports, along with Wi-Fi support for mobile and tablet remote control.
6: What is a Nucleic Acid Extractor used for?
It is used to isolate DNA or RNA from biological samples for research, diagnostic, forensic, and molecular biology applications.
7: Can I create and manage custom extraction protocols?
Yes, our extractors feature an advanced program management system allowing users to create, edit, apply, and delete protocols with high flexibility.
8: What happens if there is a power failure during extraction?
Our systems are equipped with robust power failure protection, ensuring that experiments can be resumed or safely terminated as per user preference.
9: What sample volumes can the extractors handle?
They are capable of processing a wide range of sample volumes, making them suitable for both low and high-throughput workflows.
10: Does the system support remote monitoring?
Yes, our Nucleic Acid Extractors support remote access and real-time monitoring to enhance usability and control.
Lab Expo Nucleic Acid Extractor is designed to handle a wide range of sample volumes for various research and diagnostic applications. Their advanced program management system allows users to create, edit, apply, and delete protocols with high flexibility. They utilize magnetic beads-based extraction kits to ensure high-purity. These extractors offer robust power failure protection. Our Nucleic Acid Extractor enables remote access and real-time monitoring of experiments.
