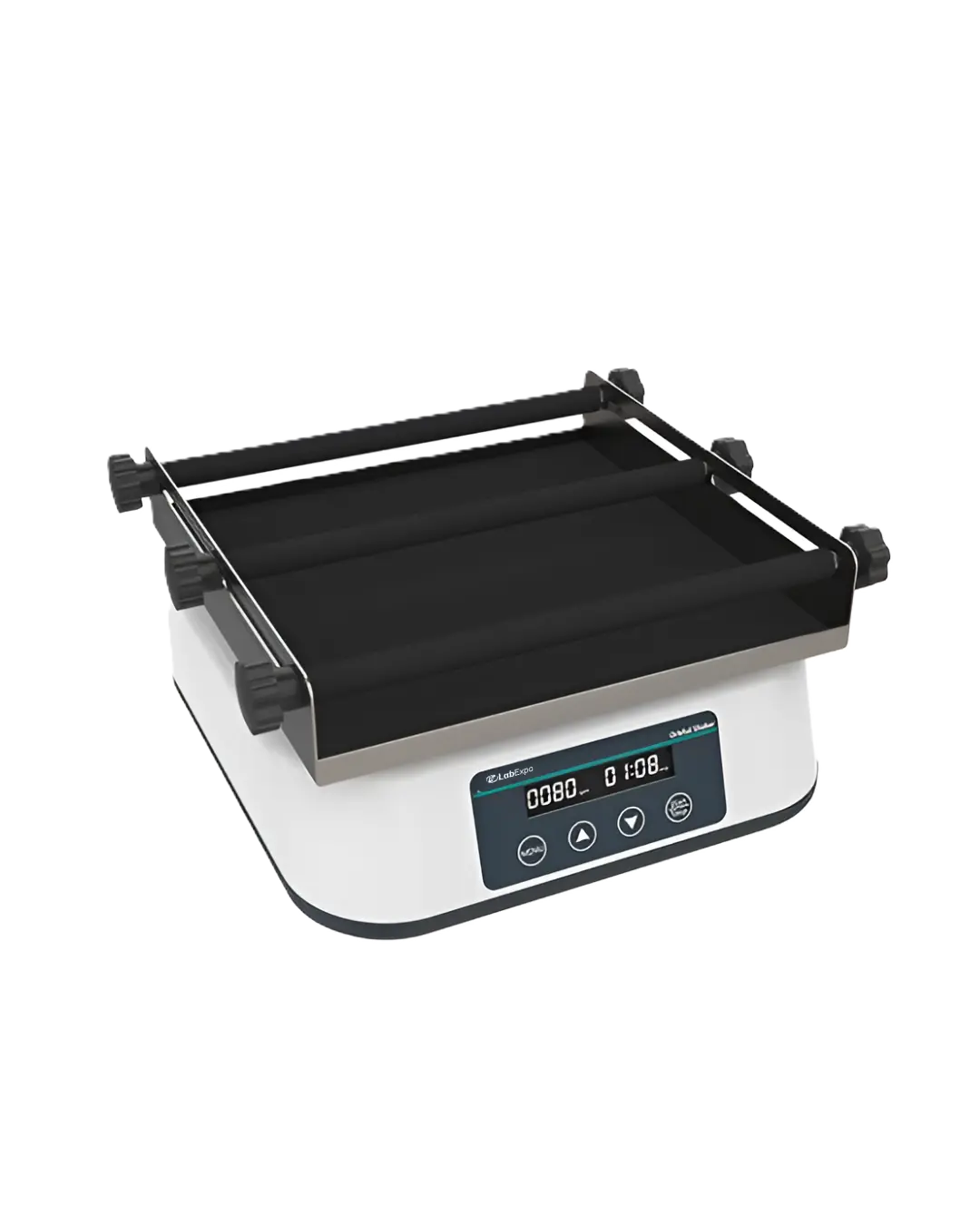

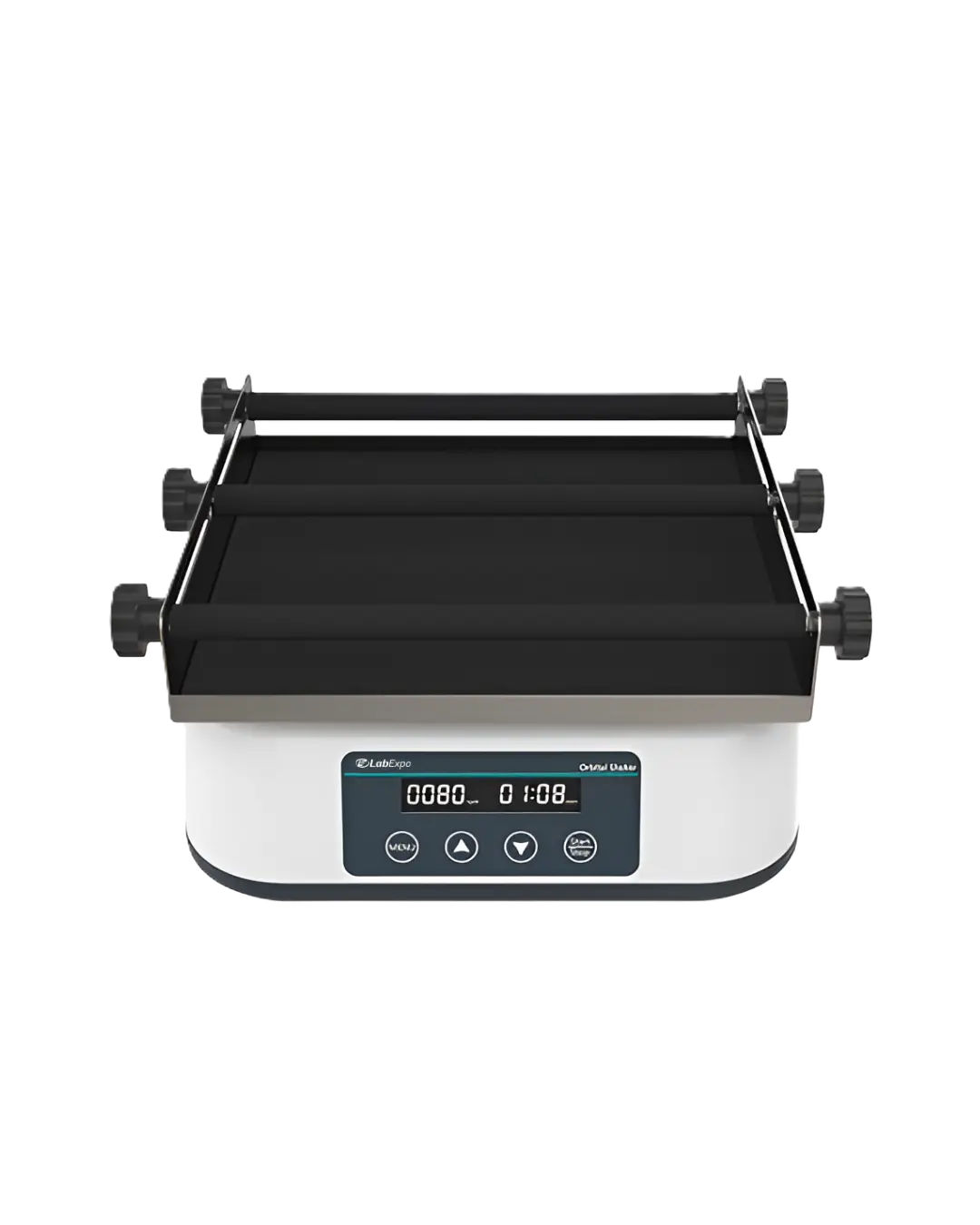

Orbital Shaker LE-OSH203 is built with a universal tray measuring 200 × 200 mm for holding a wide variety of vessels. Supports a maximum load capacity of 2 kg to enable reliable mixing of multiple samples. Powered by a brushless motor for silent, low-maintenance, and long-lasting operation. Constructed for routine laboratory use with chemical-resistant materials. Our Orbital Shaker delivers reliable mixing for cell culture, staining, solubility testing, and more.
Specifications
| Plate Dimension | Universal Tray 200 × 200 mm |
| Maximum Load | 2 kg |
| Type | Circular |
| Orbit Diameter | 20 mm |
| Speed Range | 40 to 200 rpm |
| Timing Range | 1 min to 24 hr |
| Motor Type | Brushless Motor |
| Allowable Ambient Temperature | AC100 to 240 V |
| Dimension | 235 × 220 × 95 mm |
Features
Applications
Orbital Shaker LE-OSH203 is well-suited for a range of laboratory tasks, including sample preparation, compound dissolution, reagent mixing, and incubation of biological cultures.
Catalog
1: What types of vessels can the Orbital Shaker LE-OSH203 support?
It includes a universal 200 × 200 mm tray, making it adaptable for a wide variety of vessels such as beakers, flasks, petri dishes, and microplates.
2: What control interface does the device offer?
It features a digital control panel that allows for real-time adjustments to speed and timing with precision.
3: What is the typical motion type and orbit diameter?
Our shaker uses circular motion with a 20 mm orbit diameter, ensuring even mixing throughout the vessel.
4: What makes the motor reliable for continuous operation?
It uses a brushless motor known for quiet operation, minimal maintenance, and extended lifespan, ideal for continuous protocols.
5: Can I set both short and extended mixing durations?
Yes, the timing function ranges from 1 minute to 24 hours, and it also supports continuous operation if required.
Lab Expo Orbital Shakers delivers smooth and stable orbital motion for efficient sample agitation. They feature user-friendly controls for quick and easy operation. These shakers include durable platforms that accommodate a range of laboratory containers. Their brushless DC motors ensure long-term, maintenance-free performance. Our Orbital Shaker is suitable for tasks requiring gentle to vigorous mixing across multiple scientific fields.
