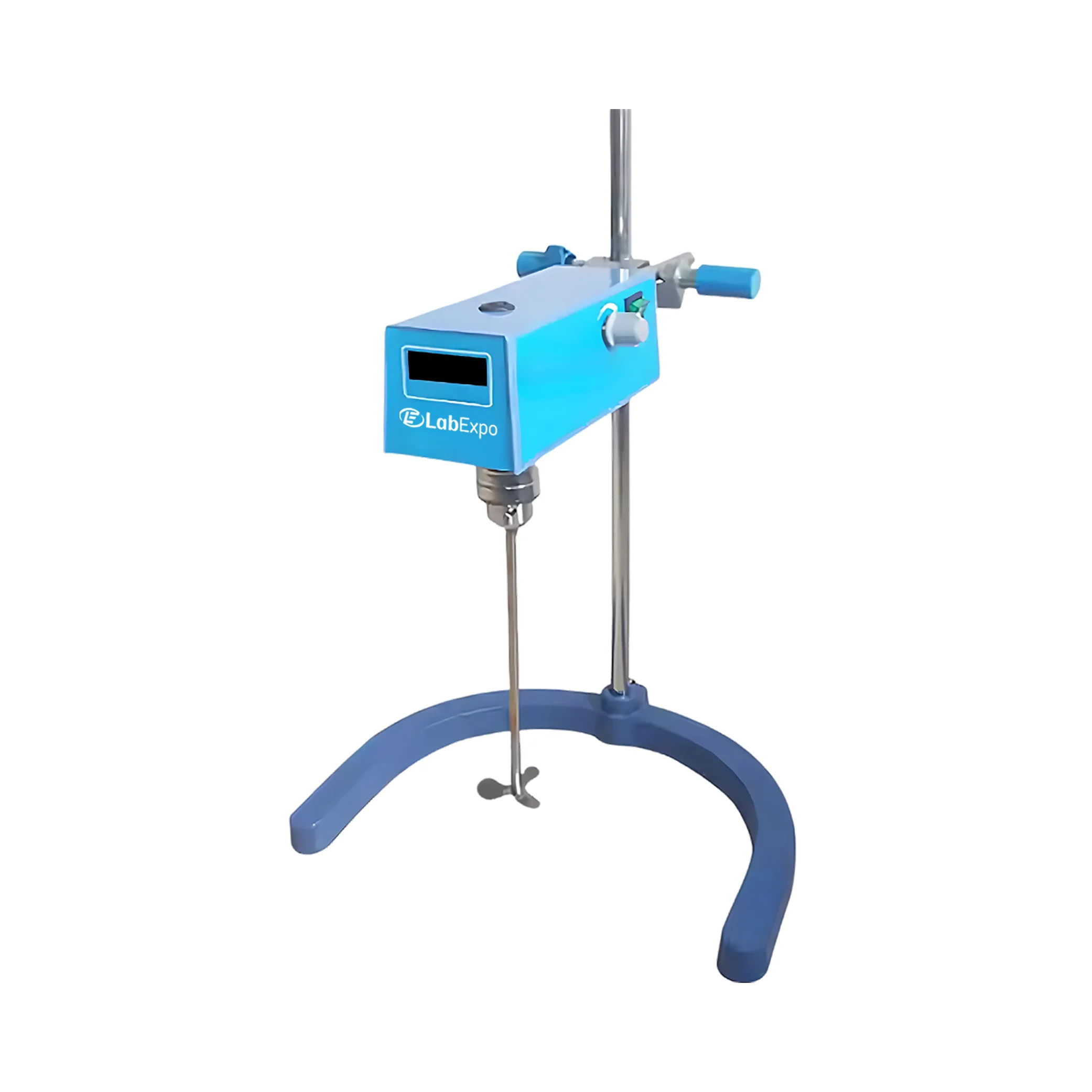

Overhead Stirrer LE-OS105 is designed with a speed range of 60 to 1500 RPM, ensuring smooth and efficient operation. It provides controlled and uniform stirring for various liquid formulations. Equipped with a brushless DC motor drive, it provides stable performance and long-term reliability. Incorporated with an MCO closed-loop control system, it offers precise speed adjustments for consistent results. Our Overhead Stirrer is suitable for mixing shampoo, shower gel, honey, paint, cosmetics, and cigarette oil.
Specifications
| Stir Speed Range | 60 to 1500 RPM |
| Stirring Volume (Water) | 50 L |
| Motor Type | Brushless DC Motor |
| Motor Torque | 450m N.M |
| Stir Rod Length | 350 mm (Standard) |
| Stir Rod Material | SS 304 |
| Holder Length | 700 mm |
| Speed Control System | Closed Loop MCU Control Rotary Encoder Operation |
| Digital Display | LCD |
| Chuck Clamping Range | Ø 1.5 to 13 |
| Motor Power | 100 W |
| Power Supply | 220 V / 110 Optional |
| Dimension | 6.9 × 3.9 × 2.0 mm |
| Gross Weight | 11.5 kg |
Features
Applications
Overhead Stirrer LE-OS105 is suitable for chemical synthesis, pharmaceutical, physical and chemical analysis, petrochemical, cosmetics, healthcare, food, and biotechnology applications.
1: What kind of motor is used in LE-OS105 and why is it beneficial?
The stirrer supports mixing volumes up to 150?L, making it suitable for large-scale applications in laboratories and industrial environments.
2: What types of formulations can be mixed using this stirrer?
These stirrers are capable of handling viscous and fluid materials such as shampoo, paint, cosmetics, honey, and shower gel with uniform consistency.
3: How does the closed-loop MCU control improve mixing precision?
The MCU control system continuously adjusts the stirring speed to maintain a consistent rate, even under changing load conditions.
4: What is the benefit of the rotary encoder operation system?
The rotary encoder allows users to make fine-tuned speed adjustments, offering greater control over the mixing process for optimal results.
5: How does the design support extended operation?
Our stirrer is designed with a penetration-type stirring shaft and stainless-steel components, enabling long continuous working hours without overheating or performance drops.
6: What allows the Overhead Stirrer to maintain a constant speed even when the sample viscosity changes?
A closed-loop feedback system continuously adjusts the motor’s torque to keep the stirring speed steady under varying load conditions.
7: What types of blades can be used with an Overhead Stirrer?
Overhead stirrers support various blades, including propeller, paddle, turbine and anchor types, each suited for specific liquid viscosities and mixing needs.
8: What safety features protect the Overhead Stirrer during operation?
The stirrer includes automatic shut-off in case of overload, overheating or motor malfunction to protect both the equipment and the user.
9: What makes the Overhead Stirrer suitable for mixing large volumes of liquid?
It features a high-torque motor and robust construction to handle large-capacity vessels and maintain consistent stirring performance.
10: What makes the Overhead Stirrer suitable for use in different industries?
Its variable speed control, compatibility with various blade types and high torque output make it ideal for mixing, blending and dispersing in various industries.
LabExpo Overhead Stirrer is designed for effective and dependable mixing of large liquid volumes. They maintain a constant speed, even when the viscosity of the sample changes. These stirrers support different blade types for handling various liquids. Their safety features include automatic shut-off in case of overload or malfunction. Our Overhead Stirrer is useful for mixing, blending, and dispersing in labs, food production, cosmetics, and chemical industries.
