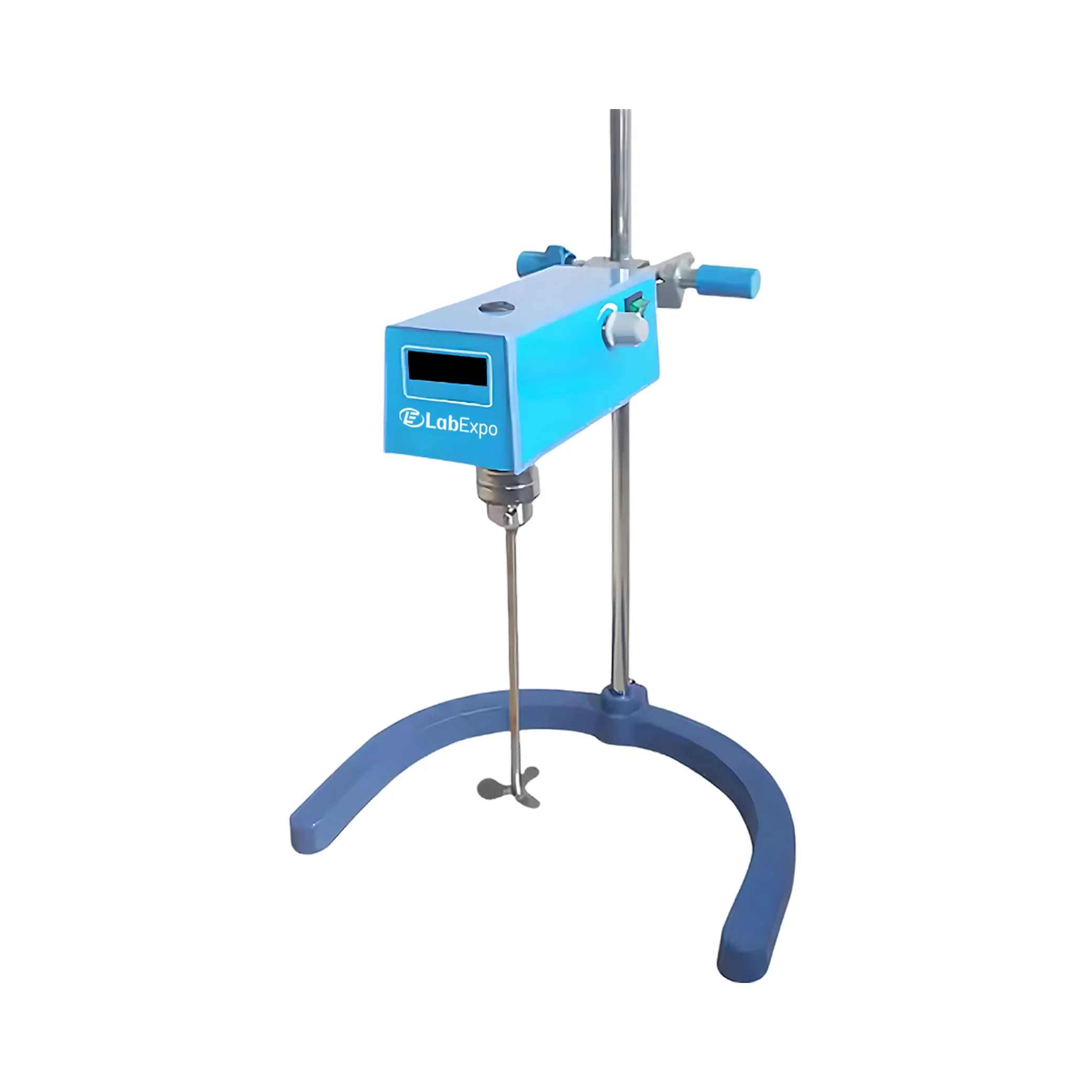

Overhead Stirrer LE-OS107 offers a wide speed range of 60 to 1500 RPM for versatile and precise mixing. It has a digital display that allows real-time monitoring and accurate adjustments. Incorporated with a robust structure and simple operation, it provides user-friendly functionality. Built-in microprocessor control system ensures accurate speed regulation and reliable performance. Our Overhead Stirrer is suitable for laboratories, research facilities, chemical industries, and biotechnology fields.
Specifications
| Stir Speed Range | 60 to 1500 RPM |
| Stirring Volume (Water) | 40 L |
| Timer | 0 to 9999 Min |
| Motor Type | Brushless DC Motor |
| Motor Torque | 450m N.M |
| Stir Rod Length | 350 mm (Standard) |
| Stir Rod Material | SS 304 |
| Holder Length | 700 mm |
| Speed Control System | Micro-processor control |
| Digital Display | LCD |
| Chuck Clamping Range | Ø 1.5 to 10 |
| Motor Power | 100 W |
| Power Supply | 220 V / 110 (Optional) |
| Dimension | 6.9 × 3.9 × 2.0 mm |
| Gross Weight | 11.5 kg |
Features
Applications
Overhead Stirrer LE-OS107 is ideal for laboratories, research facilities, chemical industries, pharmaceuticals, petrochemicals, cosmetics, healthcare, food, and biotechnology sectors.
1: What advantages does the LE-OS107's microprocessor control offer?
The microprocessor ensures precise speed regulation, consistent performance, and protection against sudden load changes during long-duration mixing tasks.
2: How does the programmable time setting improve stirring efficiency?
These stirrers allow users to set forward, reverse, and interval durations, enabling controlled, repeatable mixing cycles suited for complex formulation processes.
3: What makes this overhead stirrer reliable for daily lab use?
They combine robust construction, quiet operation, and a brushless DC motor to deliver long-term stability and reduced maintenance in demanding lab environments.
4: How user-friendly is the control interface of the LE-OS107?
Our stirrer is equipped with an LCD screen and intuitive timer settings, allowing easy setup of stirring durations, direction changes, and cycle intervals.
5: Can it handle both low- and medium-viscosity substances?
The strong motor torque and variable speed range allow it to efficiently stir a variety of liquids, from water-like solvents to denser emulsions and gels.
6: What allows the Overhead Stirrer to maintain a constant speed even when the sample viscosity changes?
A closed-loop feedback system continuously adjusts the motor’s torque to keep the stirring speed steady under varying load conditions.
7: What types of blades can be used with an Overhead Stirrer?
Overhead stirrers support various blades, including propeller, paddle, turbine and anchor types, each suited for specific liquid viscosities and mixing needs.
8: What safety features protect the Overhead Stirrer during operation?
The stirrer includes automatic shut-off in case of overload, overheating or motor malfunction to protect both the equipment and the user.
9: What makes the Overhead Stirrer suitable for mixing large volumes of liquid?
It features a high-torque motor and robust construction to handle large-capacity vessels and maintain consistent stirring performance.
10: What makes the Overhead Stirrer suitable for use in different industries?
Its variable speed control, compatibility with various blade types and high torque output make it ideal for mixing, blending and dispersing in various industries.
LabExpo Overhead Stirrer is designed for effective and dependable mixing of large liquid volumes. They maintain a constant speed, even when the viscosity of the sample changes. These stirrers support different blade types for handling various liquids. Their safety features include automatic shut-off in case of overload or malfunction. Our Overhead Stirrer is useful for mixing, blending, and dispersing in labs, food production, cosmetics, and chemical industries.
