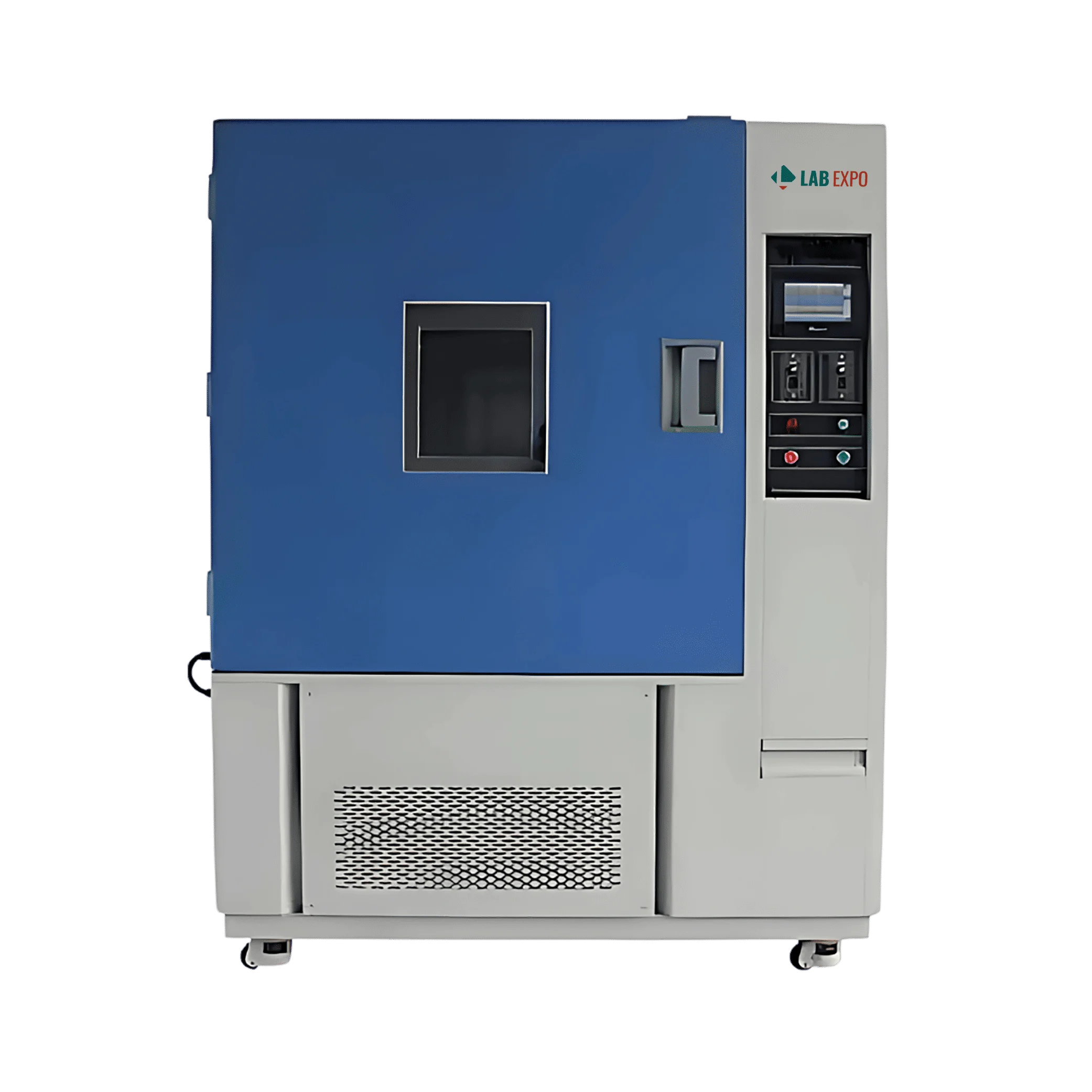

Ozone Test Chamber 24-OTC103

Ozone Test Chamber 24-OTC103 is designed to detect ozone concentration with the help of an ozone detector. Along with low maintenance and noiseless generator this machine has a well-built corrosion resistant body.

Specifications

Diameter of holder (mm) 700
Length of each side (mm) 350
Temperature range 0℃ to 100℃
Humidity range 30 % to 98 % R.H
Temperature fluctuation ± 0.5 ℃
Speed rate for cooling Ambient to 0 ℃ within 20 min
Timing range 0 to 999 hours
Ozone concentration 1 to 1000PPHM
Sample holder rotate speed 0 to 10 r/min (adjustable)
Clamps tensile stretch 5 % to 35 %
Max. ozone concentration 120 g O3/m³
Ozone output 3.5 g O3/h (oxygen input, flow rate 100L/h)
Nominal power 9000 W
Internal dimensions 800 × 1000 × 1000 mm
Overall dimensions (mm) 1280 × 1550 × 2110 mm
Power & voltage AC 380 V 50Hz

Features

  • Use this static and dynamic combined sample holders
  • PID programmable controller with LED touch screen display
  • Equipped with UV detector to detect the concentration of ozone
  • Designed with combination of three control systems- PLC, HMI and SOC
  • Incorporated with protection module for safety voltage
  • Solid and durable structured closed-type compressor unit
  • User-friendly and reliable
  • Stable and require low maintenance
  • Consists of highly efficient low noise ozone generator
  • Made up of corrosion resistant stainless steel body

Applications

Ozone Test Chamber is used in various industries such as automobiles, rubber & plastics, packaging, medical equipment, colleges and universities, research laboratories etc.

Catalog

Ozone Test Chamber 24-OTC103 Catalog

Related Models Of Ozone Test Chamber

Lab Expo offers Ozone Test Chamber designed with a wide temperature range and precise ozone concentration control for reliable testing and analysis. They feature a durable, corrosion-resistant stainless steel body and incorporate a noiseless ozone generator for stable and reliable performance. Our chambers are equipped with a UV detector to measure ozone concentration accurately. They are designed with a flat shelf for convenient sample placement and offer long-lasting structures ideal for various testing needs. Our chamber offers a PID programmable controller with an intuitive LED touchscreen display for easy operation.
