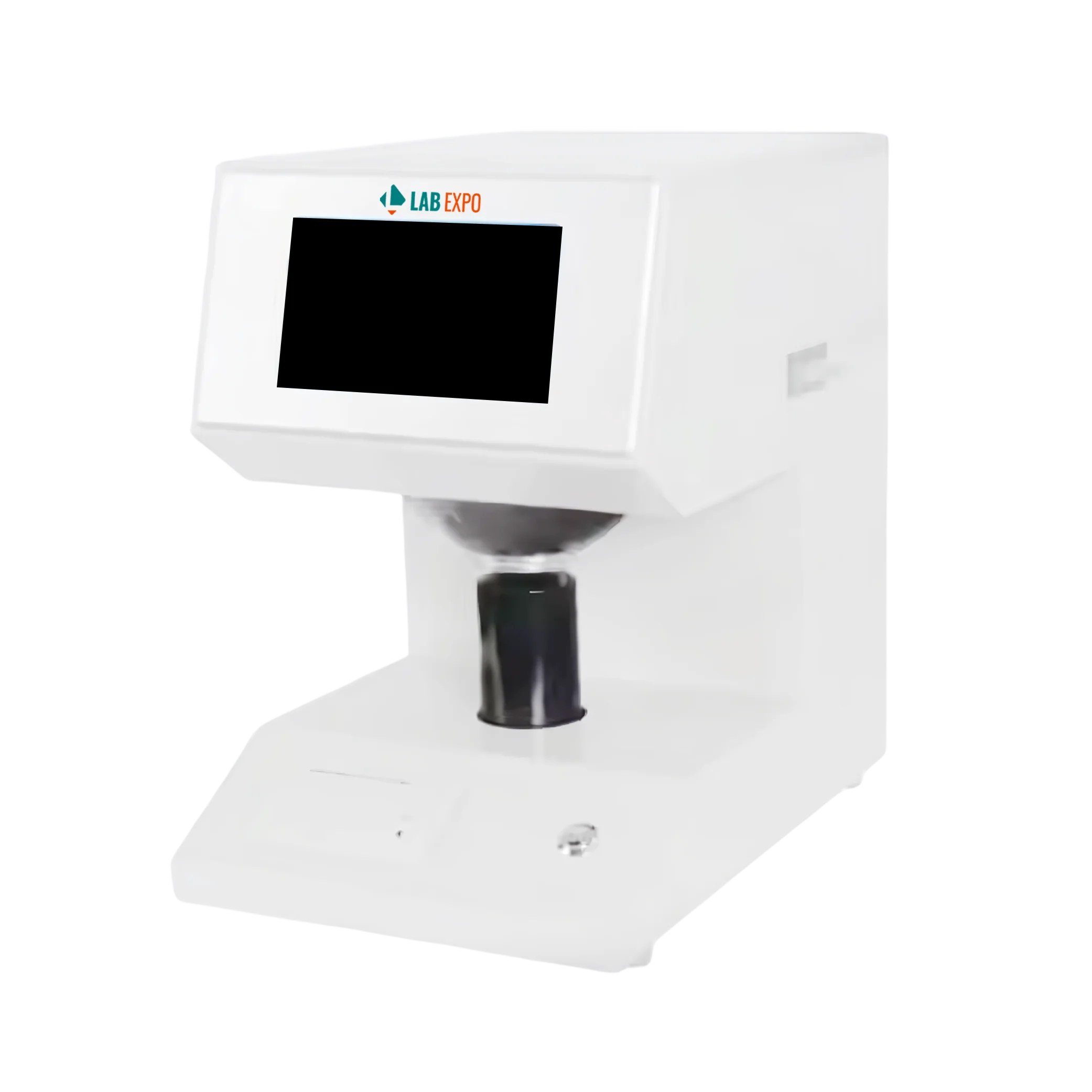

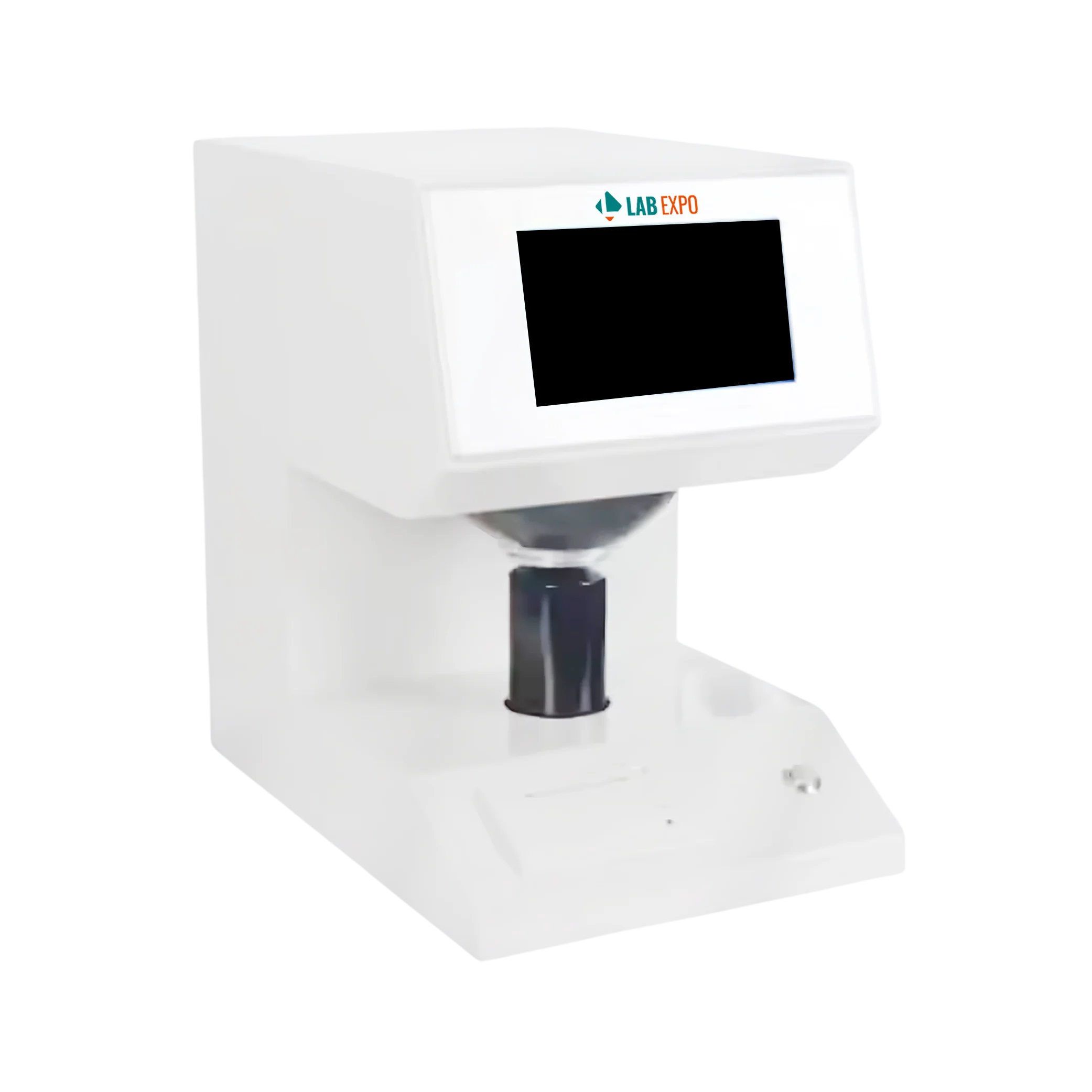

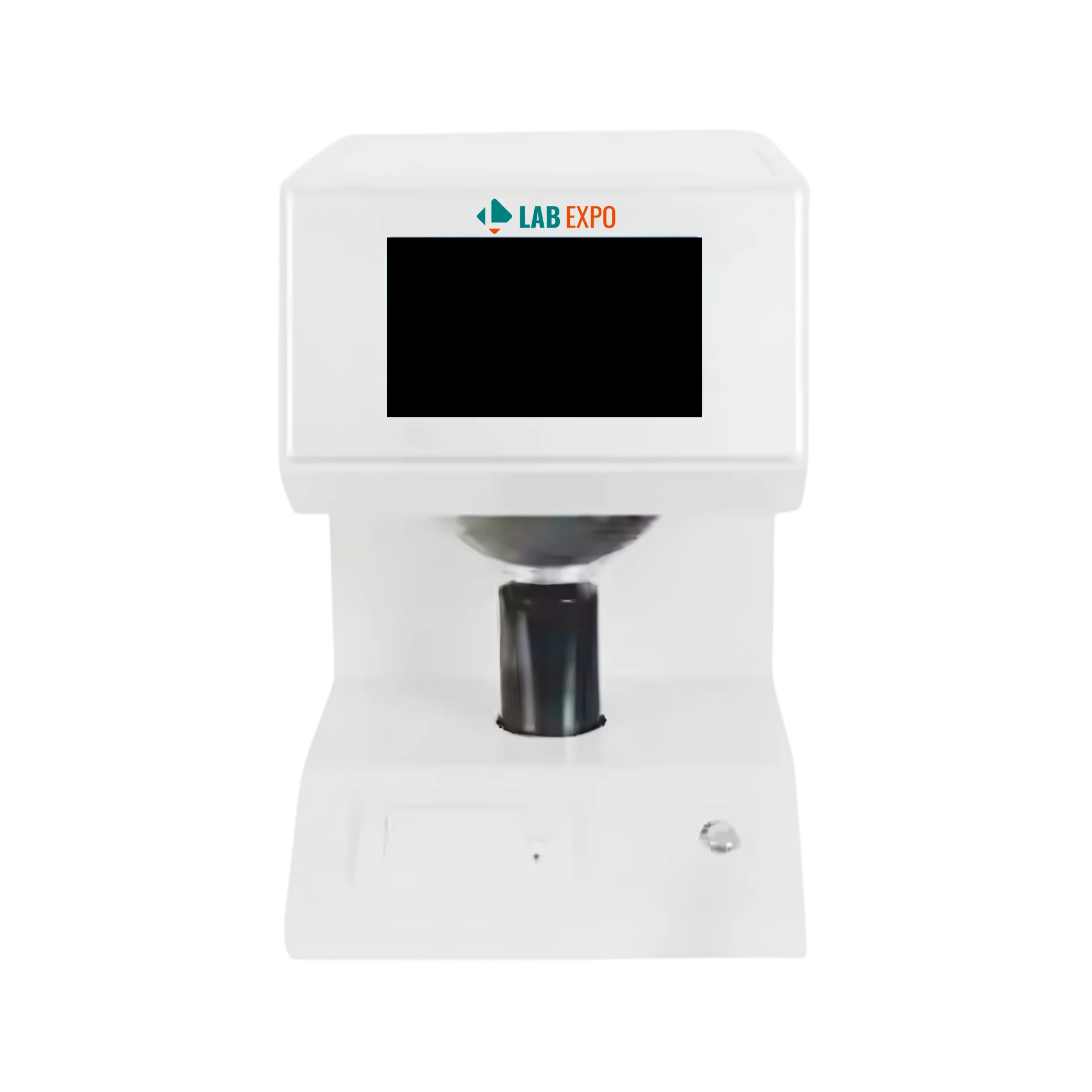

Whiteness & chromaticity Tester 61-PPT100

Whiteness and chromaticity tester measures the whiteness, yellowness, color and color difference, reflectance value, stimulus value of the sample. It measures the paper opacity, transparency, light scattering coefficient, light absorption coefficient and ink absorption value. The compact, advanced circuit design ensures the accuracy and stability of measurement data. This color tester measures the ISO brightness (blue whiteness R457) & Z whiteness (Rz) of fluorescent whitening sample due to the emission of the fluorescent material.

$4,301.00 $ 3584

Specifications

Sample (size) length Diameter ≥30 mm, Thickness ≤ 40 mm
Measurement mode Diffuse reflection factor Rx, Ry, Rz, stimulus value Y10, X10, Z10, chromaticity coordinates x10, y10, z10; lightness L *, chroma a * b *, chroma C * ab, hue angle h * ab, dominant wavelength λd, excitement purity Pe, color difference ΔE * ab, lightness difference ΔL *, chroma difference ΔC * ab, hue difference ΔH * ab, Hunter system L , A, b
Stability ≤ 0.1 within 30 min
Accuracy Chromaticity co-ordinate 0.0001
Repeatability Rx, Ry and Rz s ≤ 0.1 chromaticity co-ordinate s ≤ 0.0010, R457 s ≤ 0.10
System D/0 lighting geometrical viewing conditions, diffuser diameter (d) 150 mm, testing hole diameter 30 mm
Light measurement CIE whiteness (Ganz whiteness W10, Color cast value TW10), WH hunter whiteness, YI Yellowness, ISO brightness R457
Storage 9 reference samples
Dimension (L*W*H) 360 × 264 × 400 mm
Net weight 23 kg
Power supply 220 V ± 10 %, 50 Hz

Features

  • Stimulate D65 illuminator to illuminate
  • Measurement of the opacity, transparency
  • Determination of light scattering coefficient ‘S’ and optical absorption coefficient ‘A ‘
  • Measuring ink absorption value
  • Measures WH hunter whiteness, YI Yellowness, CIE whiteness
  • Use of large screen color touch LCD to view measurement, statistical data
  • User-friendly data operations
  • Equipped with RS232 interface, with PC connections for data communication
  • Power protection, No loss of data on power off

Applications

Whiteness & color tester is used to measure color values, brightness, whiteness in papermaking, printing, ceramics, chemicals, textile printing and dyeing, building materials, food, salt and other industries.

Catalog

Whiteness & chromaticity Tester 61-PPT100 Catalog
