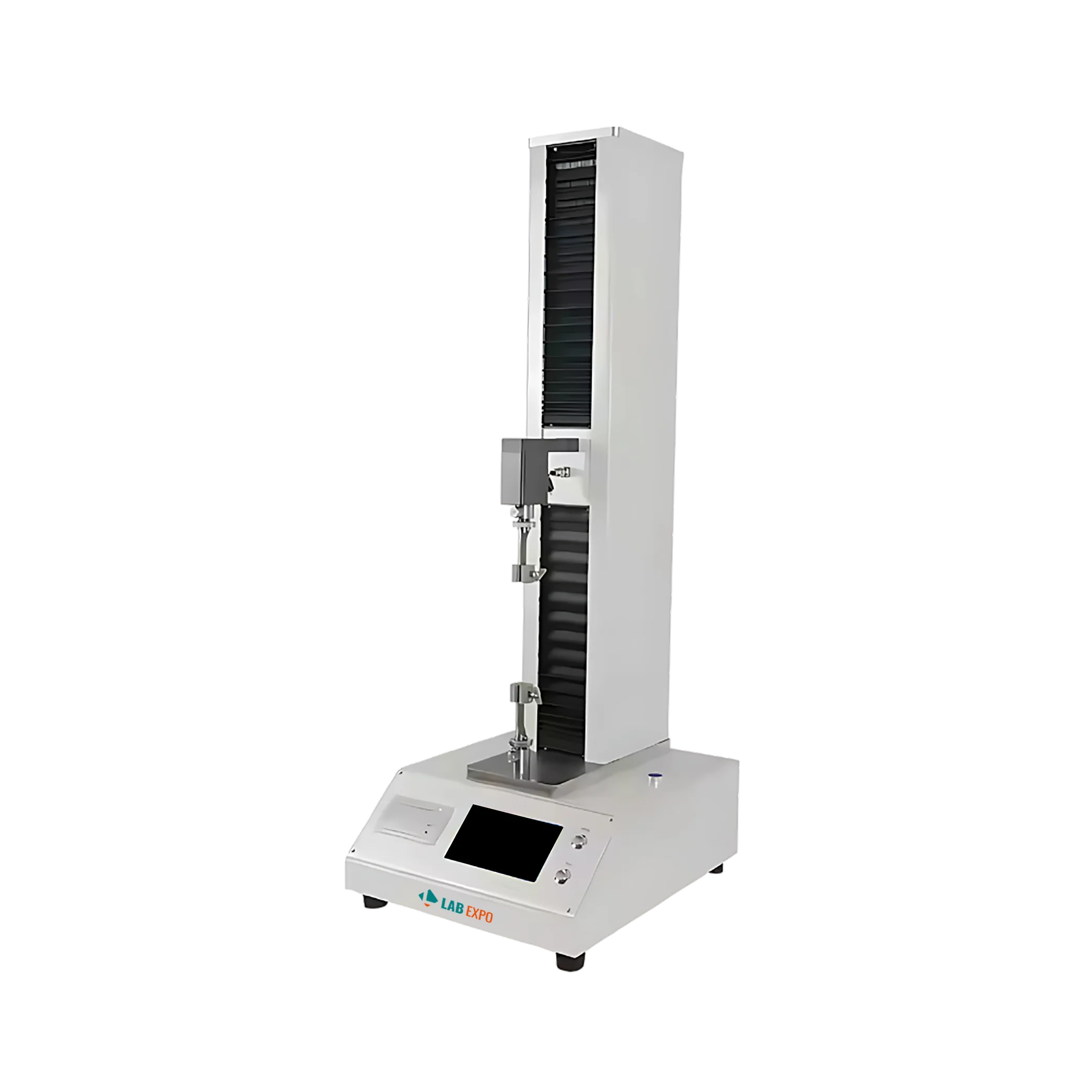

Vertical tensile tester is microprocessor controlled adopted with vertical, many pillar structure. The clamp distance can be adjusted within the specified scope. Test directly for the normal size sample and can adjust sample length and measurement range as per the needs. It is used to test the tensile strength, tensile force, tensile energy absorption, fracture length, tensile index, 180° peel strength of paper, paperboard, plastic film & other non-metal materials.
Specifications
| Sample (size) length | 0 to 200 mm adjustable |
| Sample width | 15 mm |
| Measuring range | 0 to 30 N (tissue paper), 0 to 100 N,0 to 300 N, 0 to 500 N, 0 to 1000 N |
| Accuracy | ± 1 % |
| Tensile strength velocity | 1 to 399 mm/min (adjustable) |
| Tensile return velocity | 1 to 399 mm/min (adjustable) |
| Dimension (L*W*H) | 450 × 550 × 120 mm |
| Net weight | 55 kg |
| Power supply | 220 V ± 10 %, 50 Hz |
Features
Applications
Tensile horizontal tester is used in paper, paperboard, plastic film & other non-metal materials industry to test tensile strength, tensile force, tensile energy absorption, fracture & other parameters.
Lab Expo offers Paper Testing Instruments designed for a wide range of sample sizes to test packaging materials with high precision. Our paper testing instruments are designed with a compact and portable structure, easy to transport, and ideal for testing in various environments. They offer a built-in printer that ensures efficient printing of test results for seamless documentation. Their advanced signal-transmitting pressure system offers precise control, ensuring reliable and accurate performance. Our instruments feature a user-friendly LCD to provide real-time monitoring of stiffness and burst strength values.
