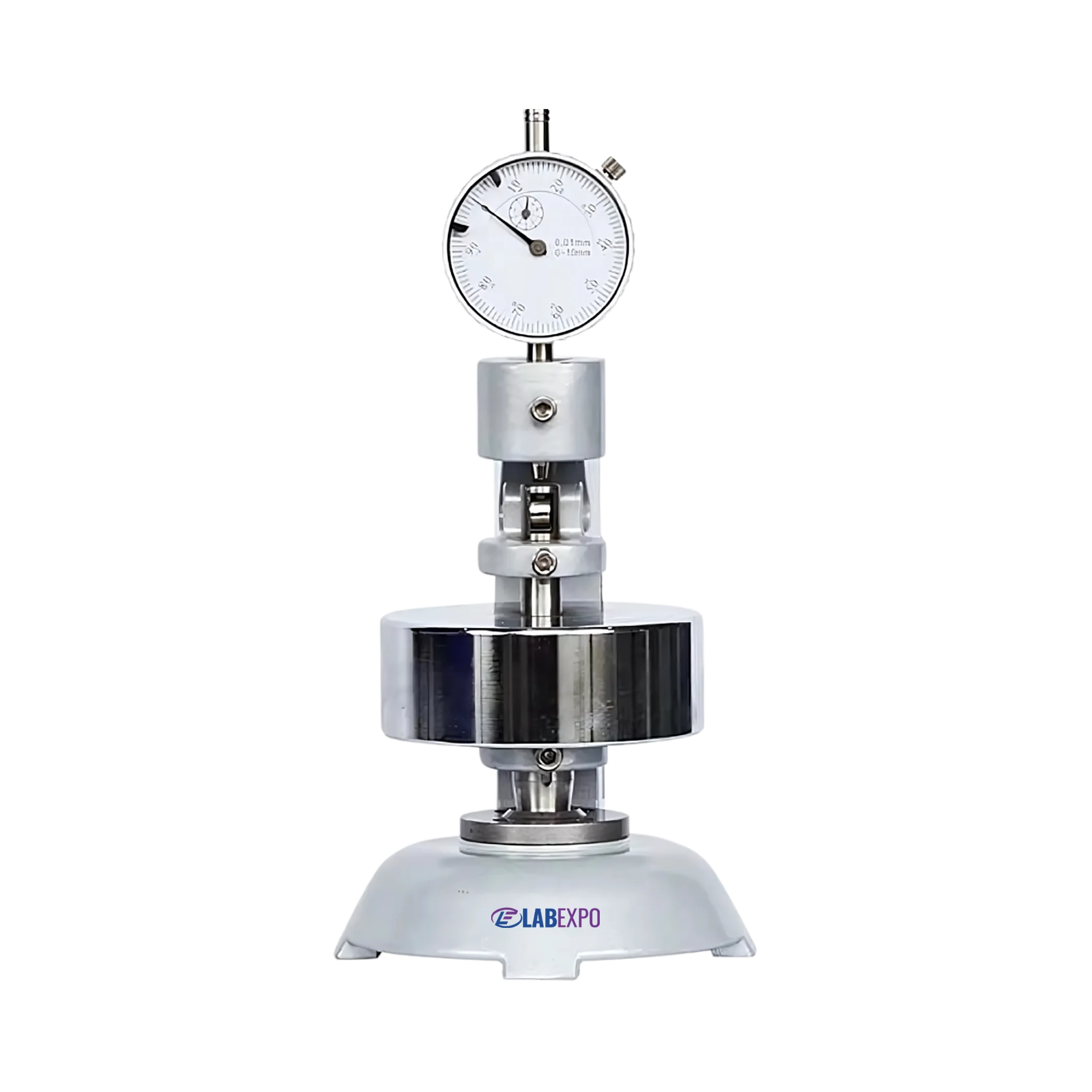

Paper and Cardboard Thickness Meter 61-PPT112 measures the thickness of paper, and corrugated papers using contact measurement method. The Analogue (pointer type) type gauge display is mounted at top with a false weight so as to develop a uniform, reproducible constant pressure on the anvil through the foot. It finds applications in paper, printing, and packaging industry.
Specifications
| Measuring range | 0 to 4 mm |
| Accuracy | 0.01 or 0.001 mm |
| Gauge | Analogue gauge display |
| Contact pressure (to create false weight) | 100 ± 10 kPa |
| Contact diameter | 16.0 ± 0.5 mm |
| Error of depth parallelism | 0.005 mm or 1 % |
| Indicating Error | ± 0.0025 mm or ± 0.5 % |
| Indication variability | ≤ 0.0025 mm or ≤ 0.5 % |
| Dimension | 233×160×120 mm |
| Weight | 5.5 kg |
Features
Applications
Paper and Cardboard Thickness Meter is used to measure the thickness of paper, corrugated paper, cardboard & other sheets widely used in paper testing, printing, packaging industry.
Lab Expo offers Paper Testing Instruments designed for a wide range of sample sizes to test packaging materials with high precision. Our paper testing instruments are designed with a compact and portable structure, easy to transport, and ideal for testing in various environments. They offer a built-in printer that ensures efficient printing of test results for seamless documentation. Their advanced signal-transmitting pressure system offers precise control, ensuring reliable and accurate performance. Our instruments feature a user-friendly LCD to provide real-time monitoring of stiffness and burst strength values.
