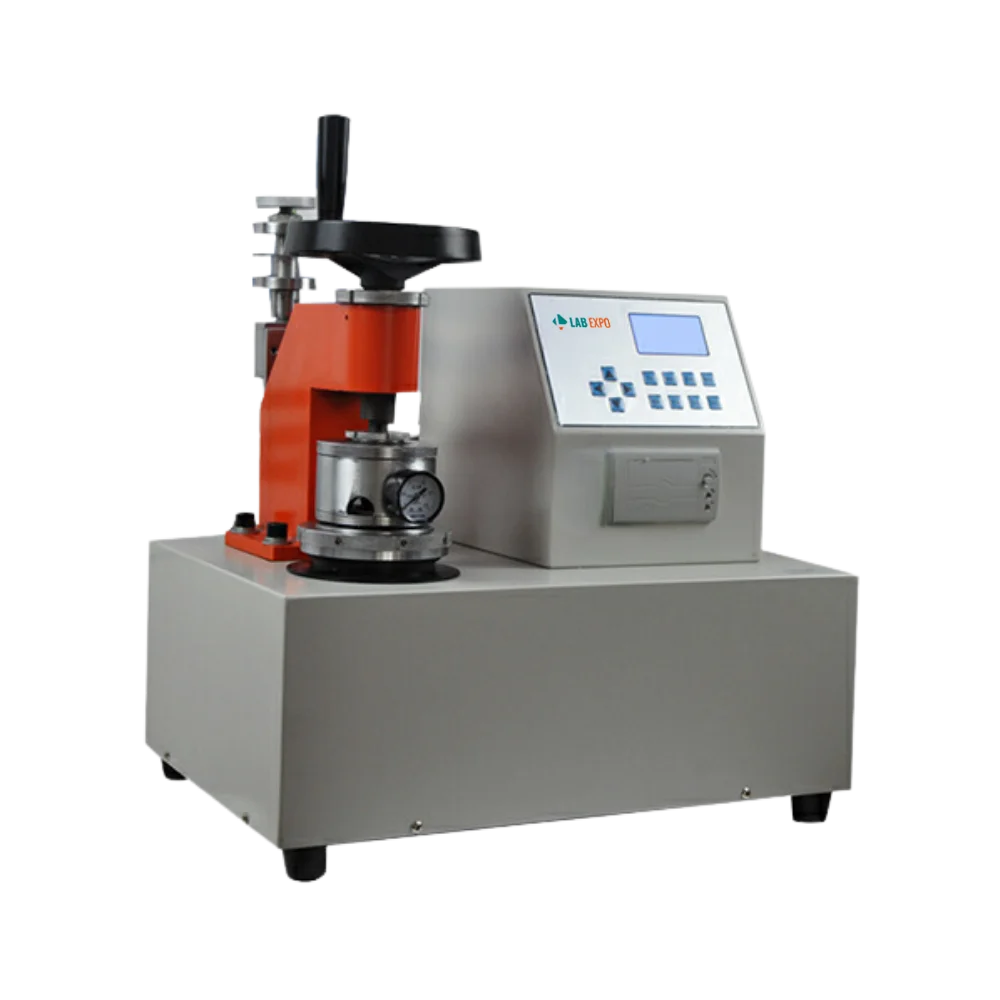

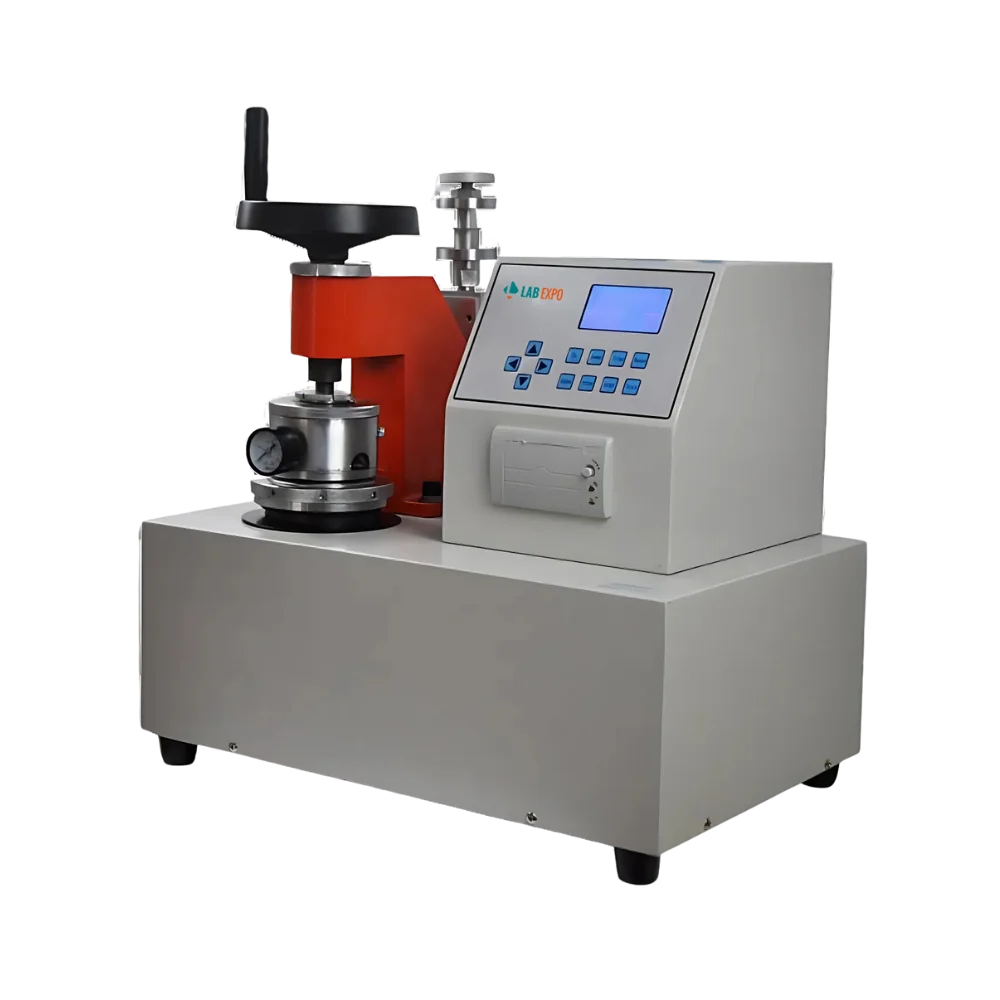

Bursting Tester 61-PPT133 is designed with a precise measurement range of 250 to 6000 kPa, ensuring reliable burst testing performance. It features a hydraulic transmission speed of 170 ml/min for efficient operation. It utilizes a hydraulic oil-driven mechanism that delivers precise and powerful force, ensuring accurate specimen burst testing. Our tester features a Real-Time LCD interfacefor instant monitoring of test parameters and results.
Specifications
| Measure Range | 250 to 6000 kPa |
| Pressure Between Platen | >690 kPa |
| Transmit Hydraulic Speed | 170±15 ml/min |
| Diaphragm Resistance | Protruding 10mm, (170 to 220) mm Protruding 18mm, (250 to 350) mm |
| Continuous Testing Time | 5 s |
| Resolution | 1 kPa |
| Accuracy | ±0.5% F.S |
| Hydraulic System Tightness | On the measurement limit, one minute drop <10% Pmax |
| Upper Platen Aperture Dia. | (31.5±0.05) mm |
| Lower Platen Aperture Dia. | (31.5±0.05) mm |
| Motor Power | 90 W |
| Power Supply | 220 V ±10% 50 Hz |
| Dimensions L×W×H | 440×370×520 mm |
| Weight | 55 kg |
Features
Applications
Bursting Tester 61-PPT133 is used to measure the burst strength of materials and is widely used in the Packaging Industry, Textile and Fabric Manufacturing, Paper and Pulp Industry, Food and Beverage, and Laboratories.
Lab Expo offers Paper Testing Instruments designed for a wide range of sample sizes to test packaging materials with high precision. Our paper testing instruments are designed with a compact and portable structure, easy to transport, and ideal for testing in various environments. They offer a built-in printer that ensures efficient printing of test results for seamless documentation. Their advanced signal-transmitting pressure system offers precise control, ensuring reliable and accurate performance. Our instruments feature a user-friendly LCD to provide real-time monitoring of stiffness and burst strength values.
