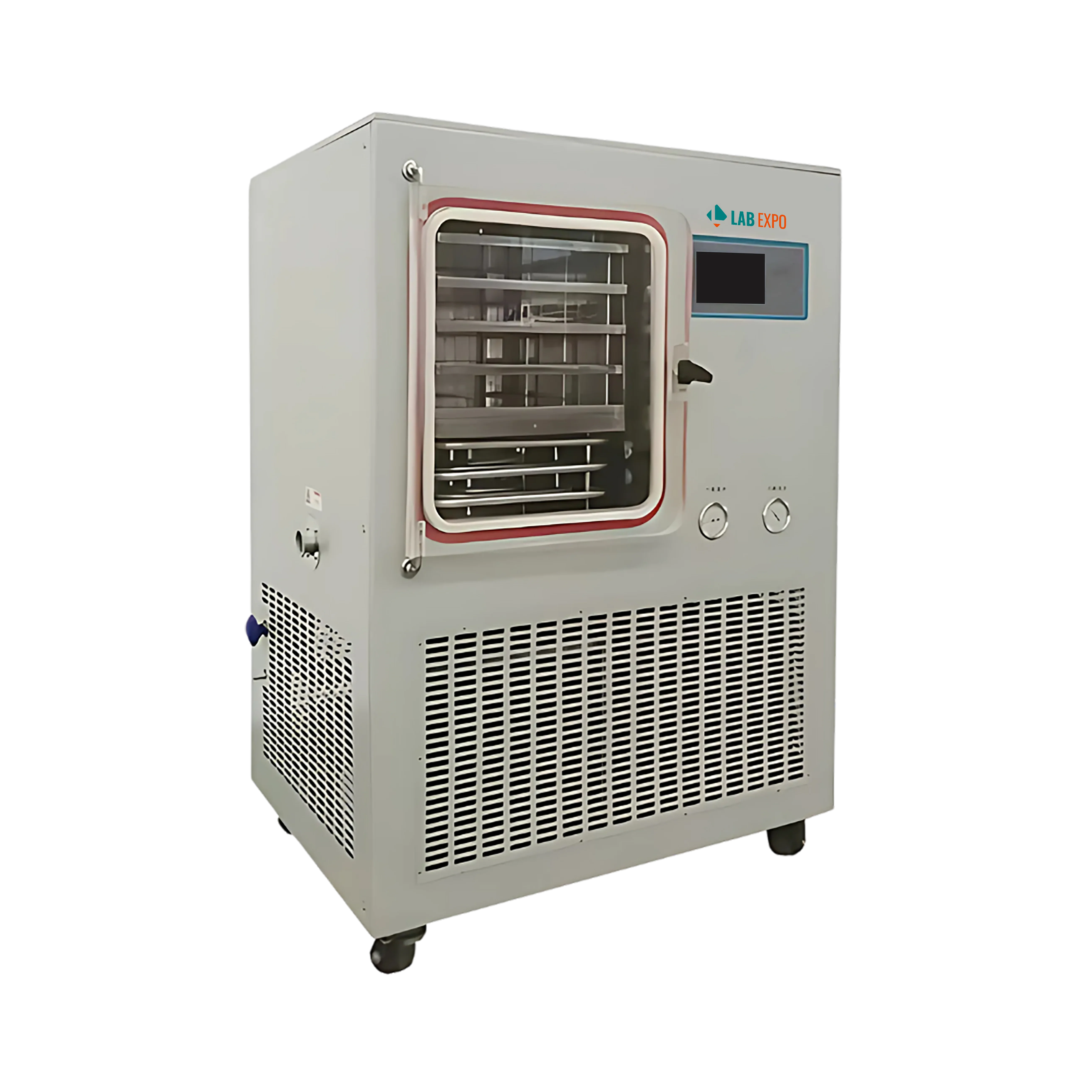

Pilot Scale Standard Freeze Dryer 19A-PSF300 is designed to handle lyophilization needs for scale-up production. Equipped with 10 kg condenser capacity and a temperature of -80 °C for effective lyophilization. It's ideal for freeze drying samples with low eutectic temperatures. The temperature-controllable shelves are designed for complete moisture removal and storage facilities of various biological materials. Precise vacuum control enables faster freeze drying and reproducible results.
Specifications
| Condenser temperature | - 70 °C |
| Condenser capacity | 10 kg / 24 h |
| Freeze drying area | 0.7 m² |
| Bulk capacity | 6 L |
| Vial capacity Φ 12 mm | 4920 pieces |
| Vial capacity Φ 16 mm | 2728 pieces |
| Vial capacity Φ 22 mm | 1408 pieces |
| Display | LCD touch screen |
| Shelves | 5 shelves |
| Shelves dimension | Φ 50 mm |
| Shelf temperature | -50 °C to 70 °C |
| Final Vacuum | < 10 Pa |
| Voltage | 220 V / 50 Hz |
| Power | 1700 W |
| Dimensions | 960 x 785 x 1450 mm |
| Weight | 380 kg |
Features
Applications
Function Implementation Research labs 10 kg condenser capacity handles large sample volumes Clinical trials -70 °C condenser temperature enables effective lyophilization Industrial production 1700 W power supports continuous freeze drying operations Quality control < 10 Pa final vacuum ensures precise moisture removal Pharmaceutical manufacturing 0.7 m² freeze drying area accommodates bulk production
Lab Expo Pilot Freeze Dryers support pilot-scale lyophilization workflows where precise temperature control, stable vacuum regulation, and batch-level process monitoring are required for sensitive materials. The system operates with ultra-low temperature condensation and temperature-controlled shelves to maintain uniform sublimation conditions. Automated batch control manages cycle execution and data logging, while corrosion-resistant cold traps, oil-return filtration, and fault alarms ensure controlled operation and repeatable freeze-drying performance for development and scale-up use.
