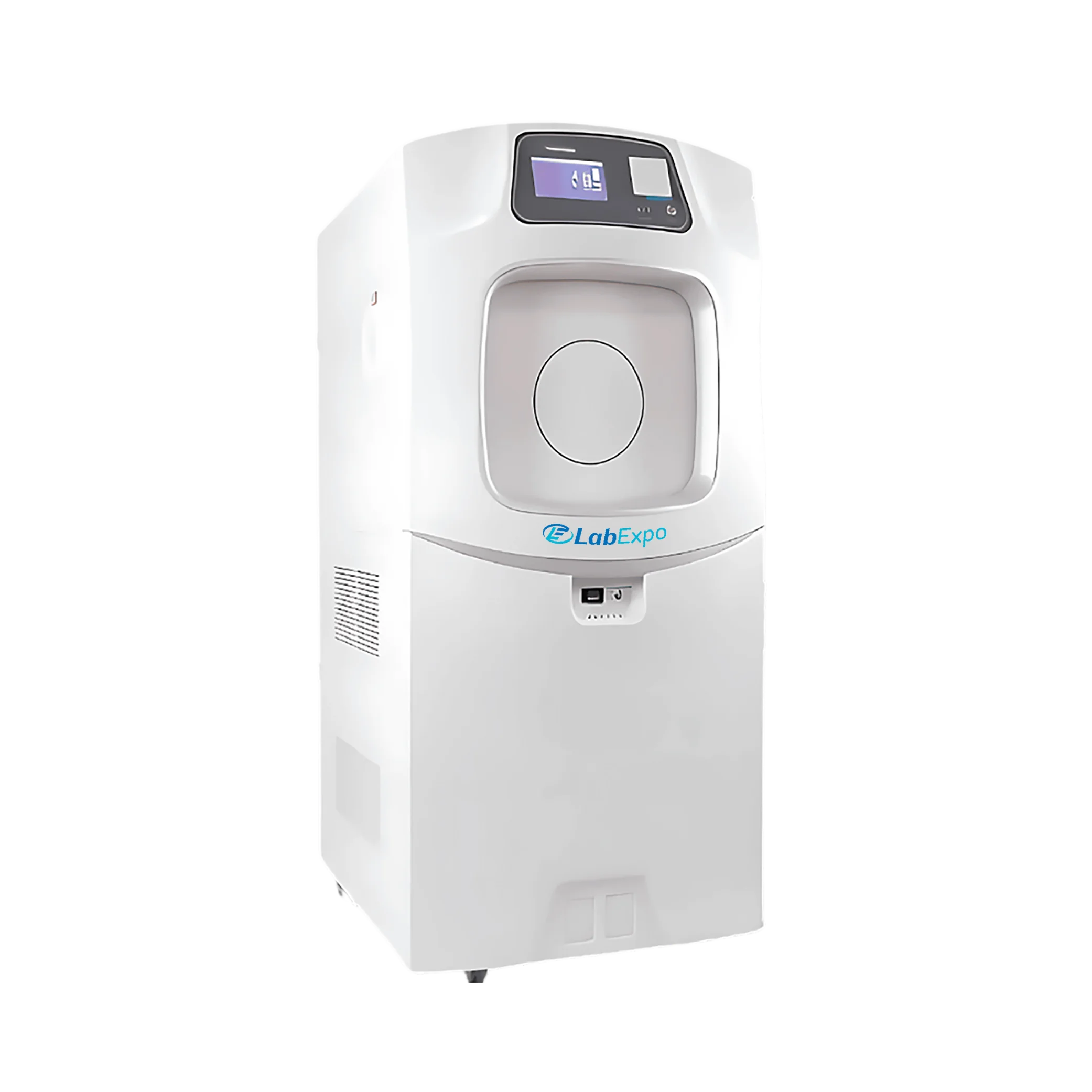

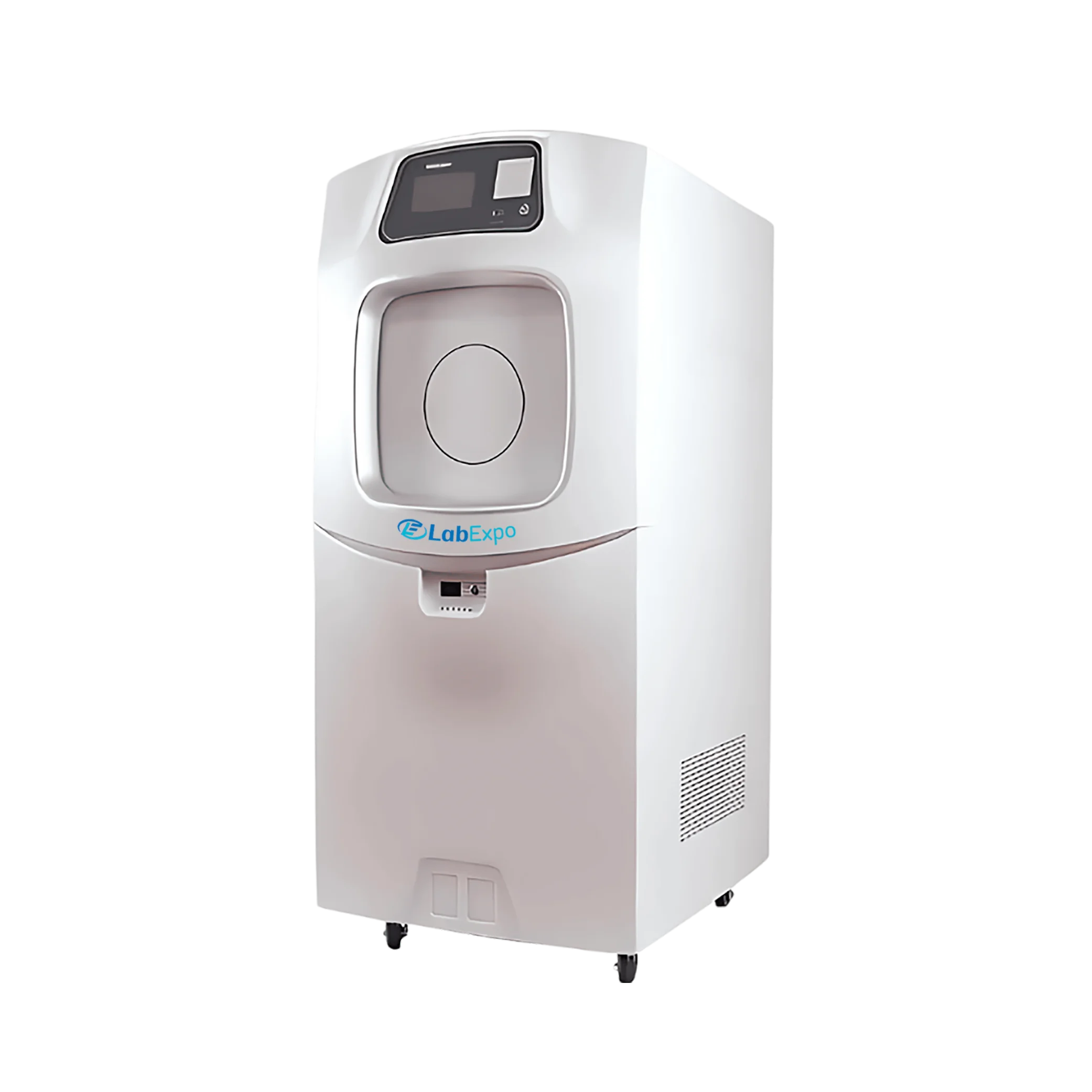

Plasma autoclave comes with sliding door, rectangular chamber design, microprocessor PLC controlled system and 220 L volume capacity. Adopted with excellent thermal conductivity ensures 100% maintenance of gaseous hydrogen peroxide. Equipped with high and low temperature alarm system, pressure and temperature sensors, H2O2 resistant rotary vane vacuum pump for quality performance. The maximum storage space is obtained by loading items on the two layers of aluminum alloy punching plate.
Specifications
| Chamber Volume | 220 L |
| Sterilization temperature | 50 ± 5°C |
| Working pressure | -50 Pa |
| Sterilizing agent | 60 % (H2O2) hydrogen peroxide |
| Sterilizing time | 45 to 50 min |
| Installation environment temperature | 5 to 45°C |
| Vacuum speed | Absorb to – 50 Pa in five minutes |
| High anti-pressure valve | 10 Pa |
| Door type | Rectangular type, sliding door |
| Operation height (for chamber design) | ≤ 160 cm |
| Chamber material | Anti-corrosion type SUS 304 stainless steel |
| Chamber temperature heating power | 2.75 kW, pre-heating time 30 mins |
| Electrode material | Anti-corrosion type SUS 304 stainless steel |
| Sealing door material | Anti-corrosion type SUS 304 stainless steel |
| Carton material | Carbon steel baking plastic powder and ABS |
| Storage U disk capacity | ≥ 8 G |
| Air filter accuracy | ≤ 0.2 µm |
| Chamber dimension (L*W*H) | 820 × 510 × 460 mm |
| Packaging dimension (L*W*H) | 1070 × 810 × 1780 mm |
| Power | 5.15 kW |
| Power supply | heating method AC220 V, 50 Hz |
| Gross weight | 450 kg |
Features
Applications
Function Implementation Low-Temperature Sterilization Heat-sensitive medical instruments and devices Pharmaceutical Materials Temperature-sensitive components and formulations Laboratory Equipment Delicate lab tools unsuitable for high heat Clinical Consumables Items requiring sterilization without thermal stress
Optional Accessories
| Accessories No. | Name |
| 1 | Hydrogen Peroxide (6-10 g/ bottle) |
| 2 | Indicative tape (20 × 25 mm/ roll) |
| 3 | Biological indicator (25 pieces/ box) |
| 4 | Chemical indicative card (200 pieces/ box) |
| 5 | Chemical indicative label |
| 6 | Sterilization packing bag |
| 7 | Non-woven fabrics |
Lab Expo Plasma Autoclaves are applied in low-temperature sterilization workflows where heat-sensitive instruments require non-thermal processing without material degradation. These units operate using hydrogen peroxide vapor to achieve deep penetration during short sterilization cycles. Digital controls manage cycle execution and monitoring, while integrated safety features such as leak detection sensors and automatic door locking support controlled operation throughout each sterilization cycle.
