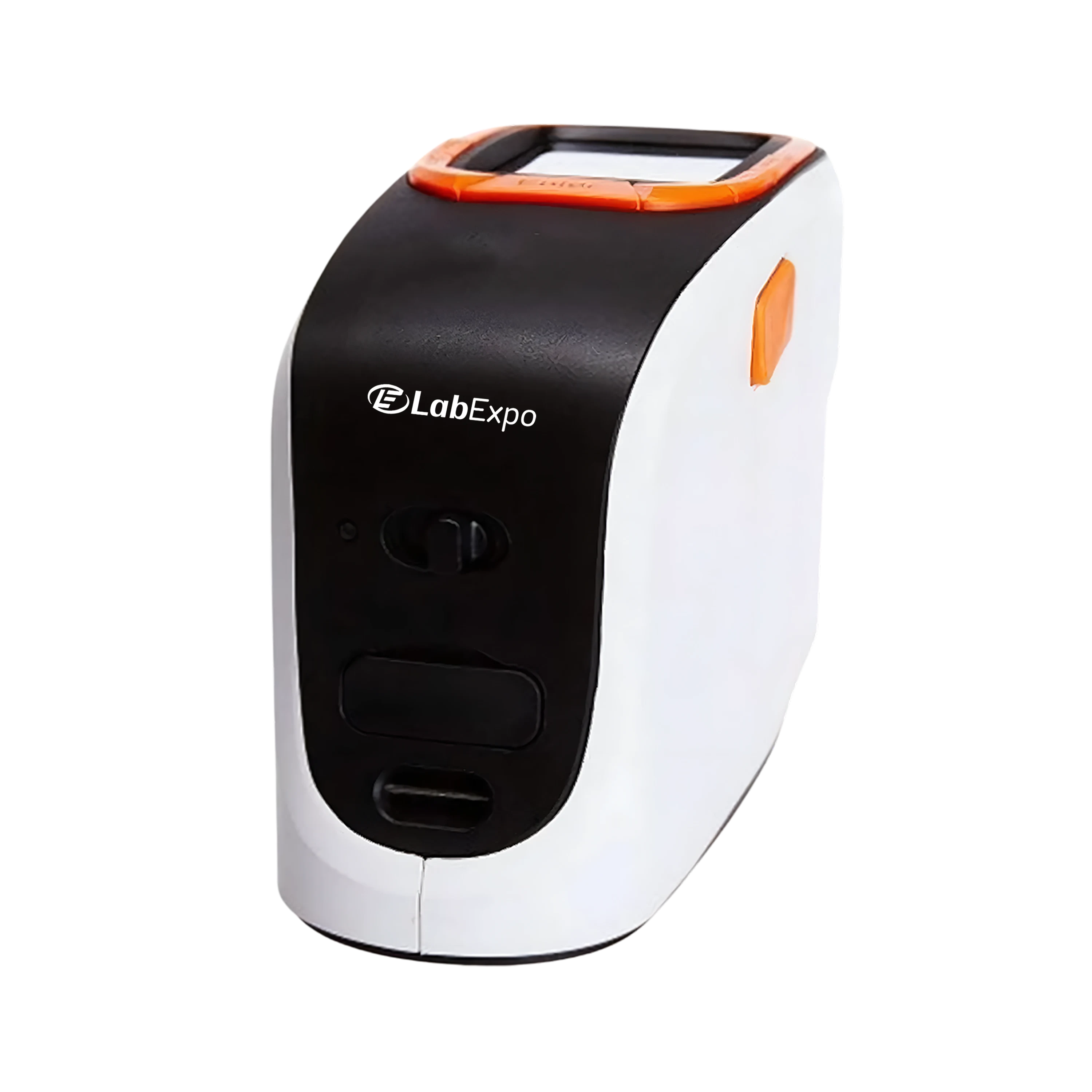

Portable Spectrophotometer 15A-PSP103 is adopted with every test calibration ETC technology, where the standard whiteboard is included in the optical system for great accuracy of every measurement. Equipped with automatic gloss compensation technology to ensure the accuracy of the color measurement data for the surface of different glosses. The measurement of the color of the powder, granules & other materials can be done by adding the powder accessories to this spectrophotometer.
Specifications
| Illumination | d/8 (Diffused lighting, 8° observation angle) SCS optical engine (light splitting and integration system) ETC (real time calibration technology ) SCI (specular reflection included) & SCE(specular reflection excluded)simultaneous measurement |
| Repeatability | Light splitting reflectivity：standard deviation within 0.08% Color values:ΔE*ab<=0.02(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals) Maximum：0.04 |
| Sensor | Photoelectric diode sensor |
| Size of integrated sphere | 40 mm, alvan diffused reflection surface coating |
| Illumination light source | CLED |
| Light source | A, C, D50, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, DLF, TL183, TL184, NBF, U30, CWF |
| Wavelength range | 400-700 nm |
| Wavelength interval | 10 nm |
| Half spectral width | 5 nm |
| Reflectivity range & resolution | 0 to 200%, 0.01% |
| Observation angle | 2°/10° |
| Measurement time interval | 0.5 seconds |
| Measurement time | 2 seconds |
| Measuring aperture | 11 mm (can be customized to 4 mm,6 mm,8 mm) |
| Color space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance, hunterlab, munsell Mi, CMYK, RGB, HSB |
| Color difference formula | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555,color classification |
| Other colorimetric indices | WI (whiteness) (ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby) YI (yellowness) (ASTM D1925，ASTM E313-00,ASTM E313-73),Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, adhesive/changing Color fastness, ISO illuminance, 8 gloss |
| Color matching system | Matches |
| UV light source | Not included |
| Work temperature range | 0 to 45℃, relative humidity 80% or below( at 35°C ),no condensation |
| Storage temperature range | 25℃ to 55℃ relative humidity 80% or below(at 35°C ),no condensation |
| Battery capacity | Rechargeable, 20000 continuous tests, 7.4V/6000 mAh |
| Data being displayed | SPD distribution/data，sample\'s color values，color difference values/graph，pass/fail results,color error tendency，color simulation display measurement area，history data color simulation，manual input standard sample generate measurement report |
| Interface | USB, Bluetooth |
| Data storage | 100 test samples , 200 measurement records for each sample |
| Display | True color 2.8 inch TFT touch screen |
| Light source longevity | 10 years, 3 million tests |
| Dimension (L*W*H) | 181 × 73 × 112 mm |
| Weight | 550 g |
Features
Applications
Portable spectrophotometer 15A-PSP103 has applications in textile, plastic, food, paint, printing, automobile industries, laboratories & on-site applications for quality control purpose.
Standard Accessories
| Accessories No. | Name |
| 1 | Power cord |
| 2 | USB cable |
| 3 | Driving software |
| 4 | Color QC software |
| 5 | Black and white calibration tile |
Lab Expo Portable Spectrophotometers are designed to measure light intensity at specific wavelengths. They offer a broad wavelength range, ensuring accurate and reliable measurements. These measure specular reflections included (SCI) and excluded (SCE) for accurate color and gloss analysis. They offer large storage capacity for numerous test samples and measurement records, ensuring efficient data management. These features with ETC technology ensure consistent accuracy and reliability. They include USB and Bluetooth options for efficient data transfer and storage. They have a CLED light source, providing consistent illumination for stable results. They use gloss compensation technology to ensure accurate color measurements across surfaces with varying gloss levels. Our portable spectrophotometer features a touchscreen, providing a clear display and intuitive operation for user convenience.
