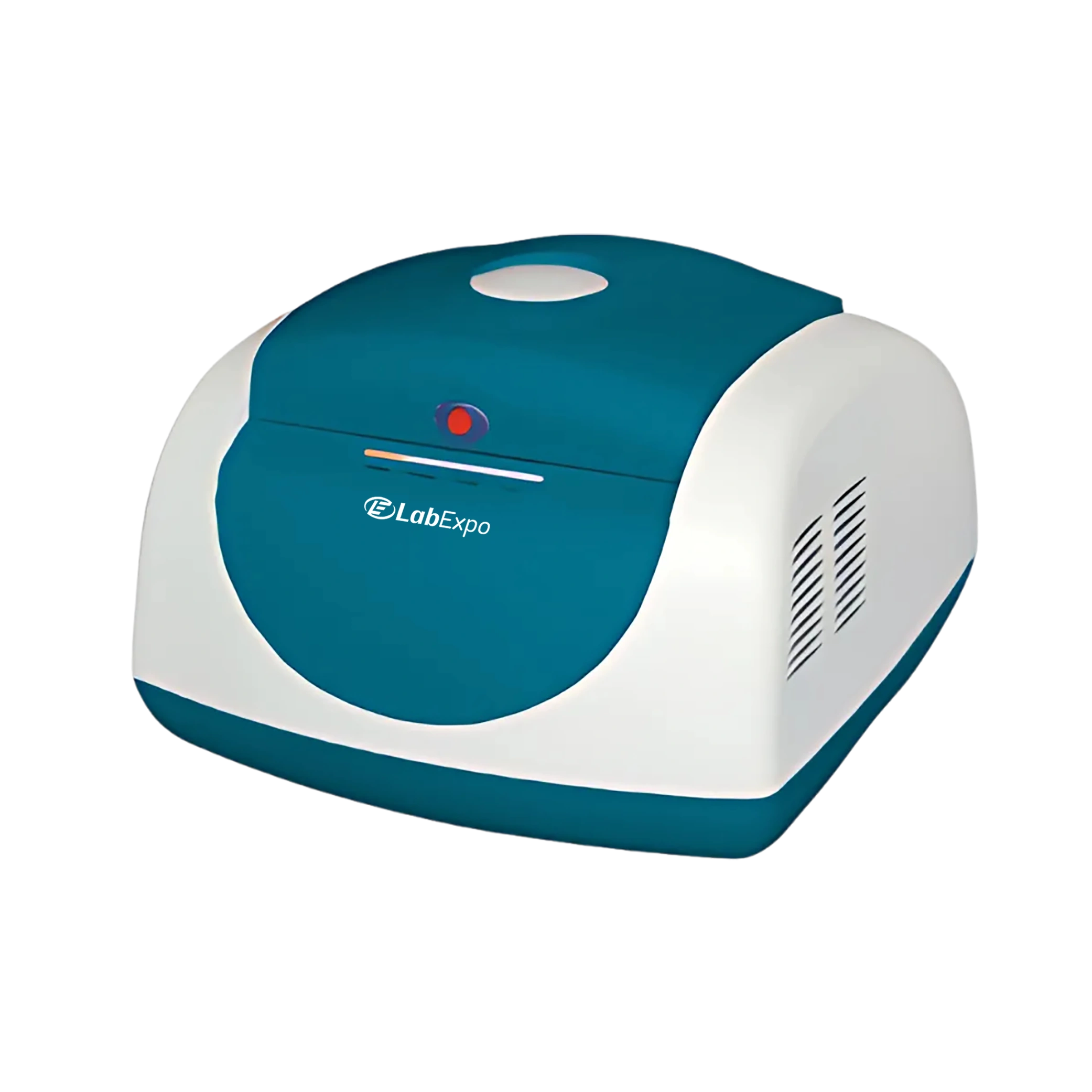

Real-Time PCR 62-RTP300

Real-Time PCR 62-RTP300

Real-Time PCR 62-RTP300 comes with 48 well capacity, durable, energy efficient design and advanced Ferrotec peltier and fibre optic technology. Equipped with advanced multi point temperature control module maintains thermal uniformity. It creates temperature gradient across the sample block. With ability to handle one, two, three, four combinations of excitation and emission wavelengths this PCR finds applications across many fields

$17,280.00 $ 14400

Specifications

Sample Capacity 48 × 0.2 ml
Emission Wavelength Standard channels: F1 : 525 nmF2 : 564 nm F3 : 584 nm F4 : 612 nm
Excitation Wavelength Standard channels: F1 : 470 nmF2 : 523 nm F3 : 543 nm F4 : 571 nm
Sample Volume Range 10 to 100μL
Dynamics Range 10 to 1010 Copies
Max. channels number of fluorescence detection 4 channels
Detected Fluorescence F1：FAM,SYBR Green I;F2： HEX,VIC F3：TAMRA,JOE,Cy3 F4：TEX RED,ROX
Block Temp. Range 4 to 99.9℃
Temp. Control Accuracy ≥ 4.0 ℃/sec
Temp. Uniformity ≤ ± 0.3 ℃
Ramping Rate 4.0 ℃/sec
Gradient Temp. Range 1 to 24 ℃
Hot-lid Temp. Range 80℃ to 110℃
Operation System Windows 2000/XP
Power Supply 100 to 240 V, 50/60 Hz, 650 W
Dimension ( L × W × H ) 520 x 450 x 320 mm
Weight 25 kg (Without computer)

Features

  • 4 individual filters cover wide range of fluoresence detection wavelength
  • Constant current power supply improves thermal efficiency
  • Multi-point temperature control module
  • Fibre optics system provides reduced S/N ratio
  • Data storage during accidental power cut off
  • Automatic amplitude adjustment
  • Overheat protection, alarm warning
  • Electric heat preservation cover
  • Temperature gradient control up to 24°C
  • USB, RS232 interface for data transfer

Applications

Real time PCR used in sequencing, genotyping, cloning, mutagenesis and routine applications that require quantification and characterization of nucleic acids in academic institutes, research centres, diagnostics and laboratories.

Catalog

Real-Time PCR 62-RTP300 Catalog

Related Models Of Real Time PCR

Lab Expo offers Real-Time PCR systems with high-capacity thermal cycler designed for precision and efficiency in molecular biology applications. They accommodate well plates with a transparent bottom for optimal fluorescence detection. Our PCR system supports multi-point temperature control and offers a temperature gradient capability for diverse experimental needs. They operate at advanced emission wavelength ranges ensuring compatibility with a wide array of fluorescence dyes and probes. Our PCR systems feature high-efficiency LED lighting and robust fluorescence detection capabilities for reliable performance.
