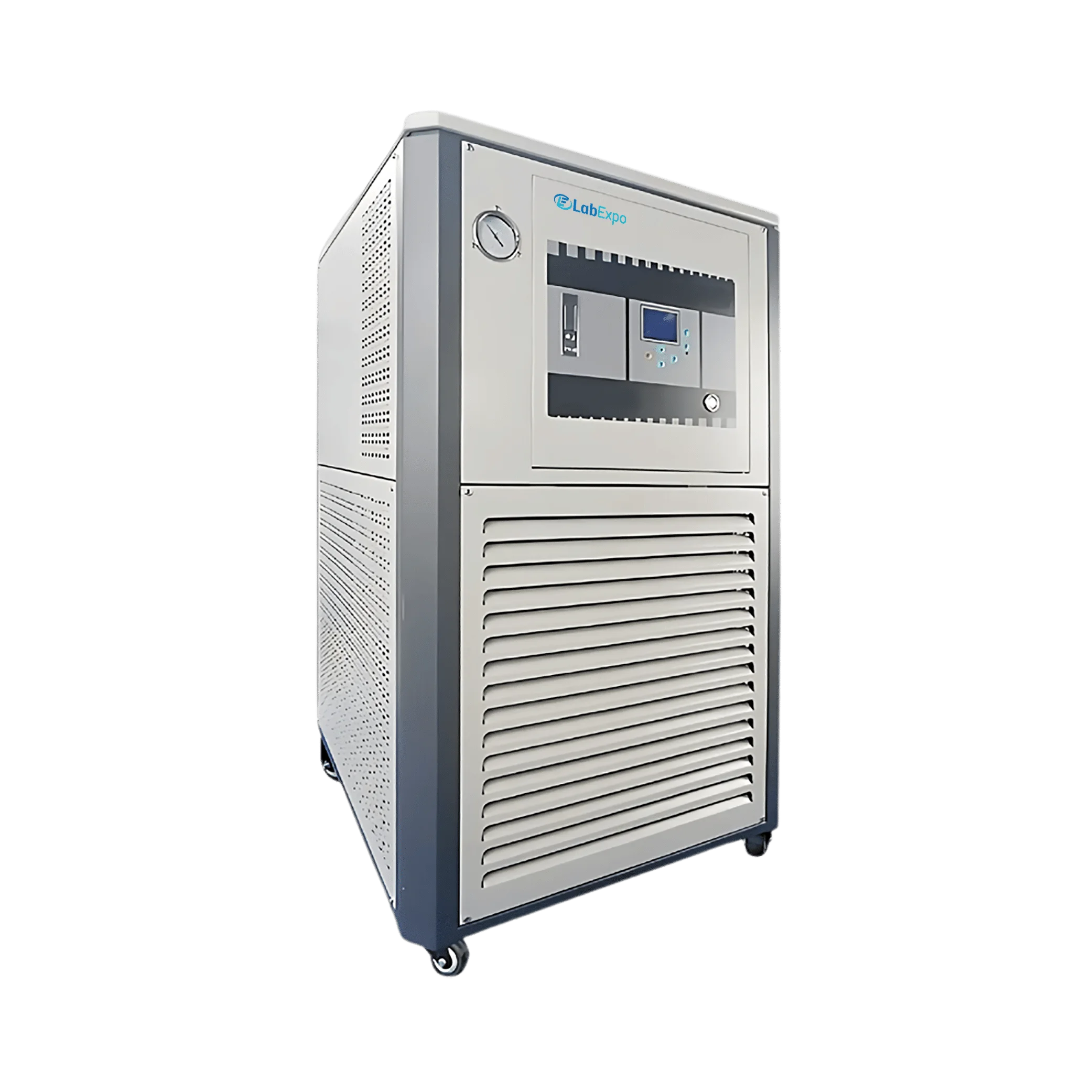

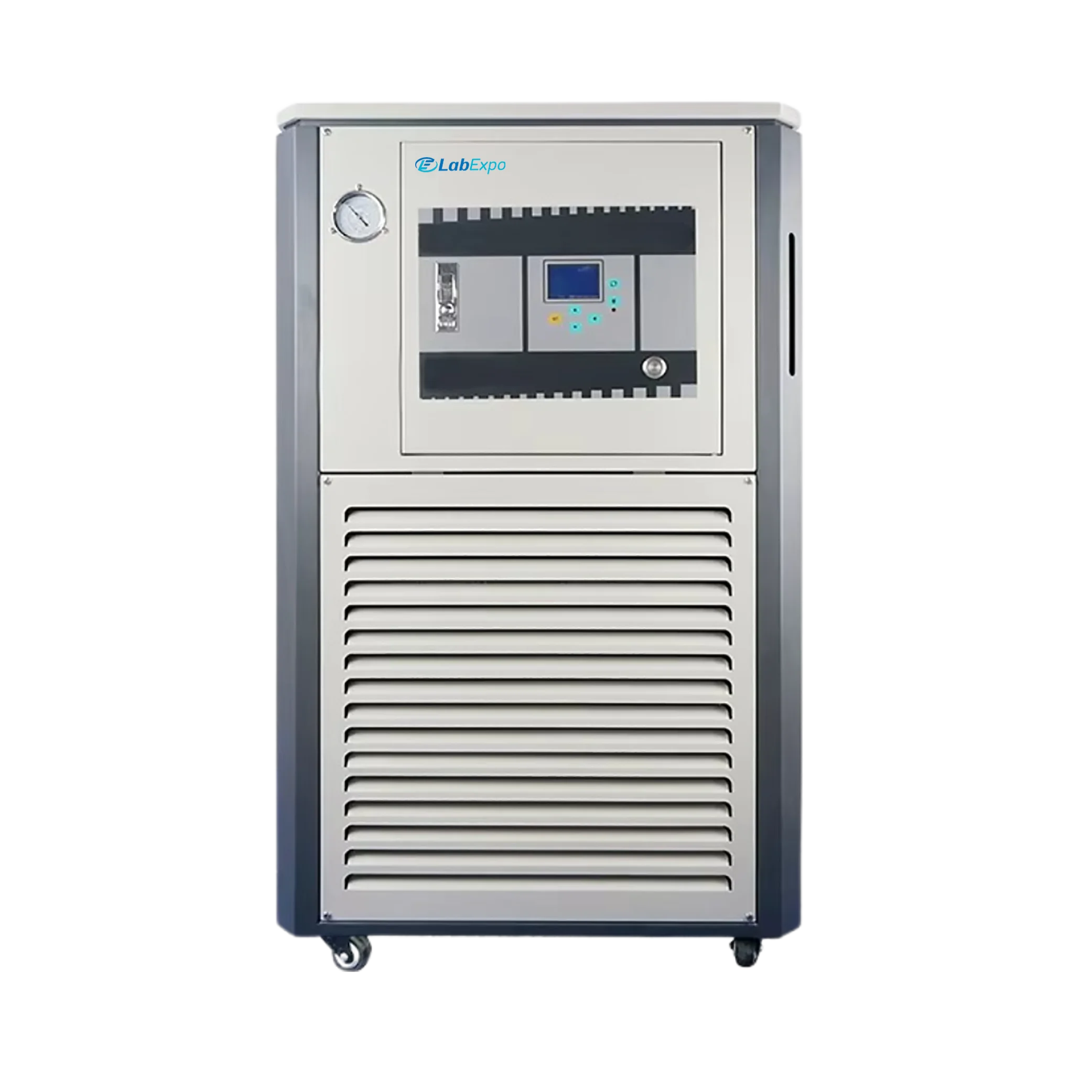

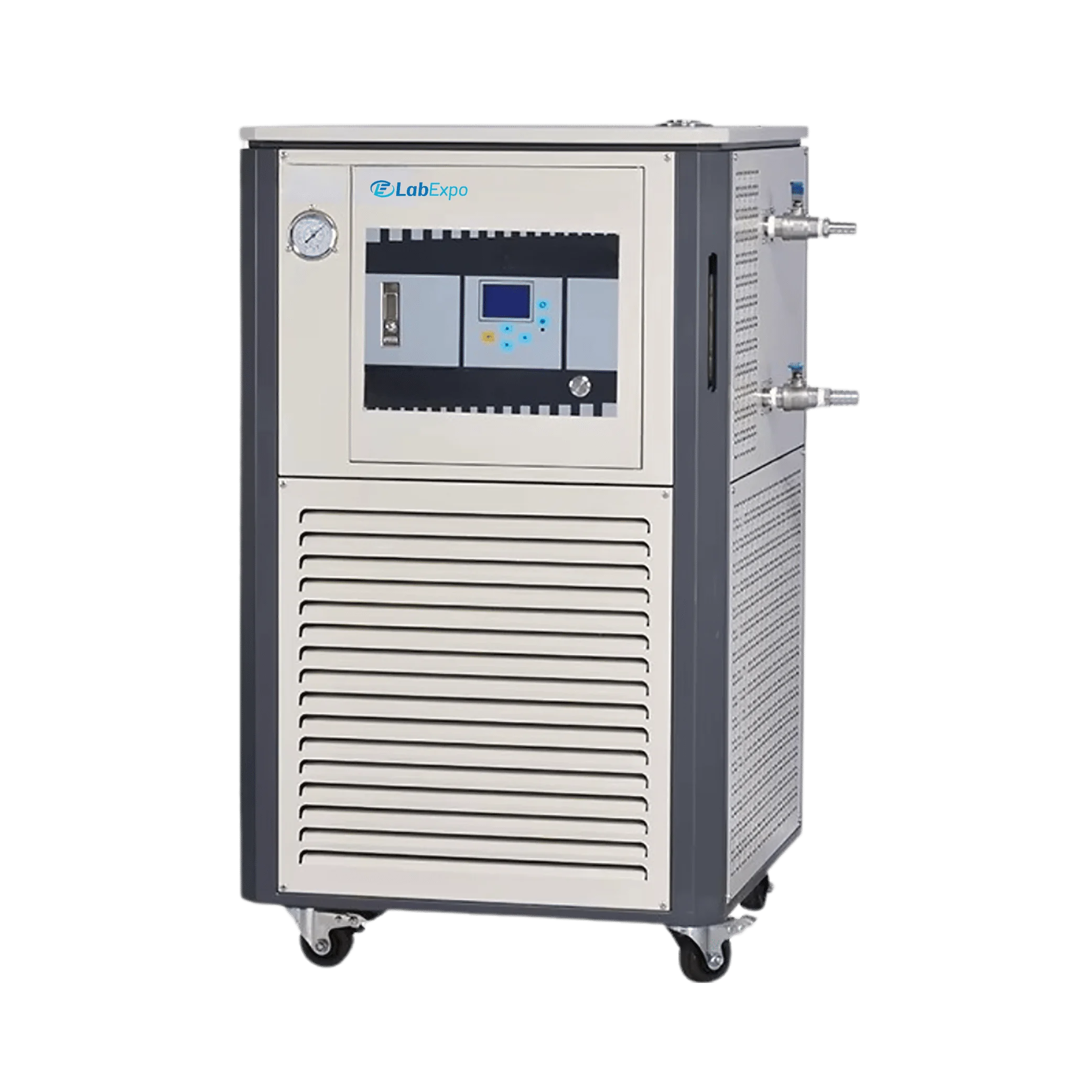

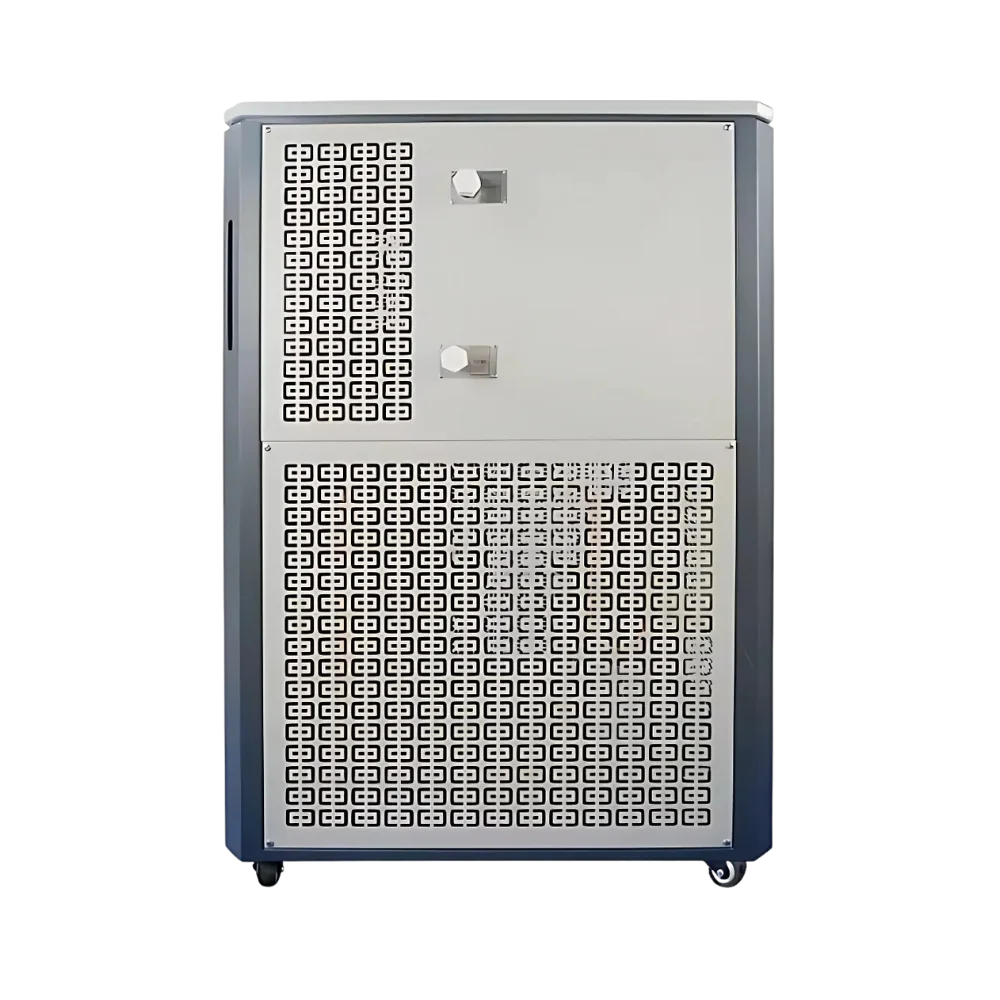

Recirculating Chiller LE-RCC101 is integrated with PT100 temperature sensor that provides high-precision thermal monitoring. Equipped with high-efficiency compressor and shielding pump for consistent cooling across temperature-critical applications. Built-in safety mechanisms including overheat protection and automatic restart enhance system security. Our Recirculating Chiller promotes operational accuracy and extends equipment longevity.
Specifications
| Temperature Range | RT to 40℃ |
| Ambient Temperature | ≤30 ℃ |
| Optimum Ambient Humidity | 60% |
| Temperature Sensor | PT100 |
| Chiller Type | Air cooling |
| Phase Number | 1 |
| Cooling Capacity | RT:2800 W 0℃: 2500 W 40℃: 550 W |
| Compressor Brand | Danvers |
| Compressor Power | 1125 W |
| Refrigerant Type | R404A |
| Outer Circulation Nozzle Size | 15 DN |
| Opening Diameter | 240 mm |
| Tank Volume | 10 L |
| Circulating Pump Type | Shielding Pump |
| Pump Power | 100 W |
| Rated Lift | 6 M |
| Rated Flow | 25 L/min |
| Fan Type | External Rotor Axial Fan |
| Number of Fans | 1 |
| Control System | Siemens S7-200 Smart PLC |
| Programming | 5 Programs |
| Operation Panel | 7–inch Siemens Color Touch Screen |
| Data Output | USB (TXT Format Support) |
| Power Consumption | 1300 Watt |
| Power Supply | 220V, 50/60Hz |
| Dimension | 620 × 540 × 920 |
| Net Weight | 120 Kg |
Features
Applications
Function Implementation Low-temperature instrument cooling -40 C capability supports temperature-critical equipment Rotary evaporator support 25 L/min circulation maintains continuous heat removal Analytical equipment stabilization PT100 sensor with PLC control regulates precise thermal conditions Industrial testing control Defined cooling capacity maintains set operating temperatures Process monitoring and logging Touchscreen interface with USB output enables data access
Lab Expo Recirculating Chiller supports precision cooling workflows where continuous temperature stability and closed-loop circulation are required for sensitive instruments and processes. The system operates with high-efficiency heat exchange and digitally regulated temperature control to maintain accurate setpoints. Integrated safety functions, including overheat protection, low-level alarms, and automatic restart, ensure controlled operation, while durable build supports precise, long-term cooling performance for daily use.
