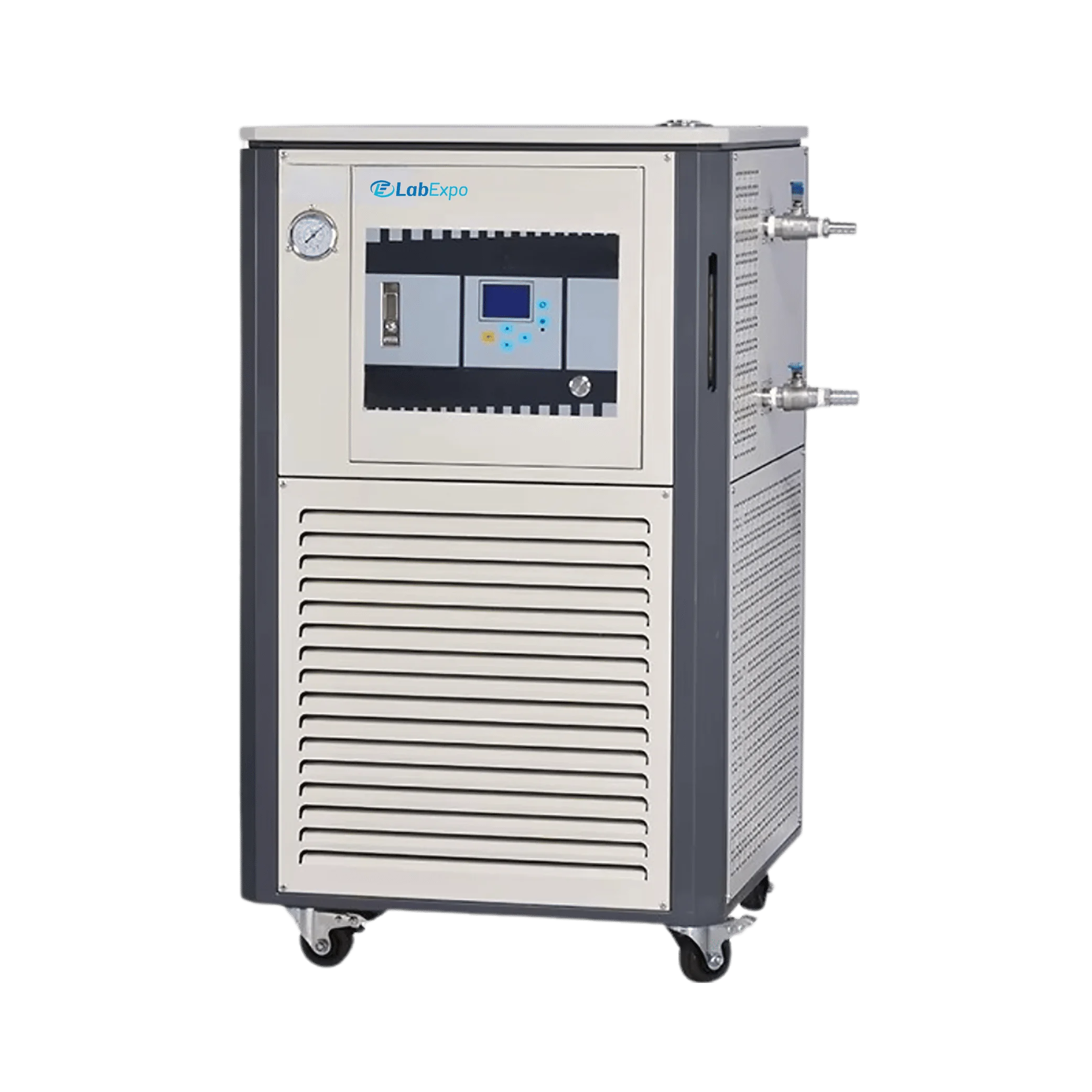

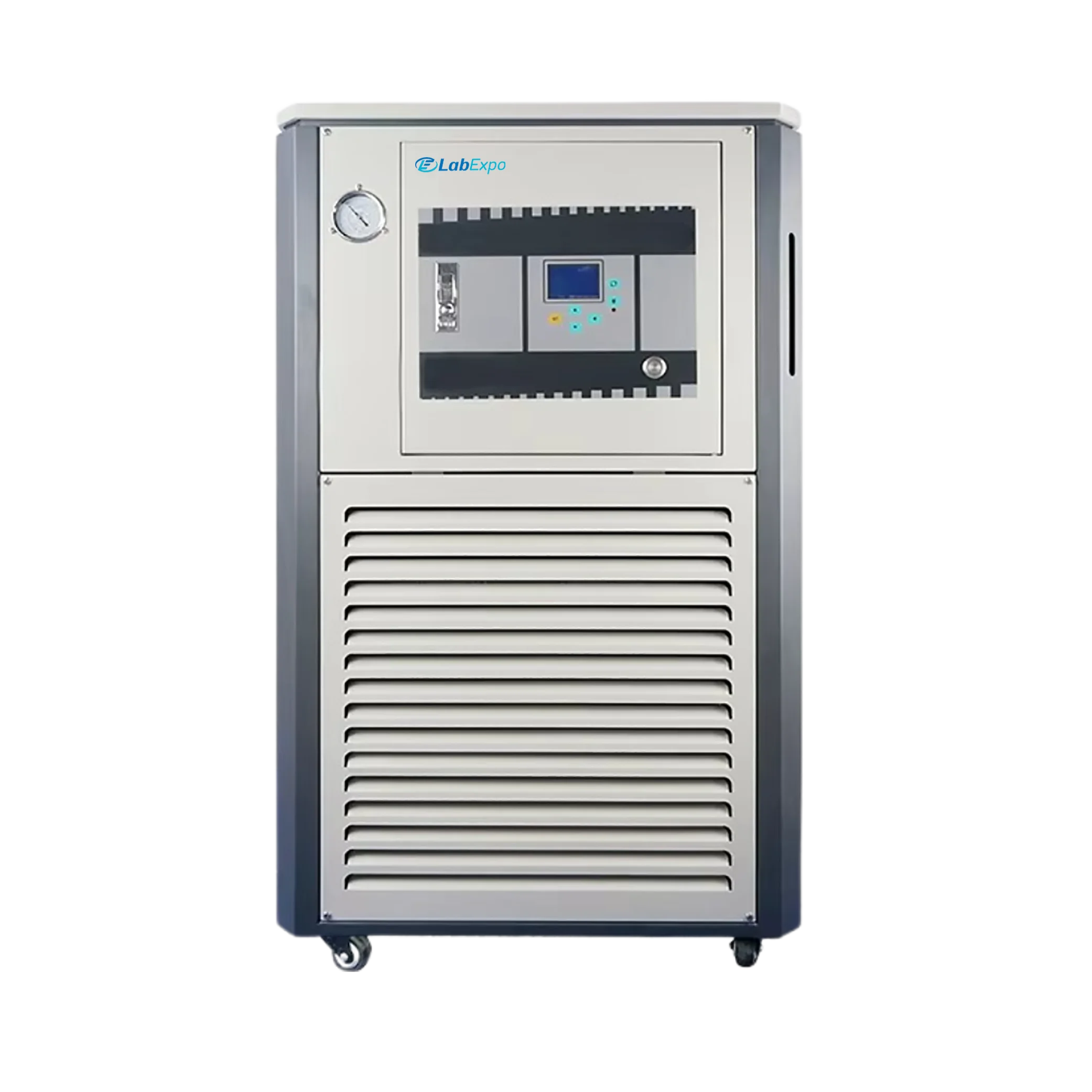

Recirculating Chiller LE-RCC102 provides a tank capacity of 50 liters. Equipped with PT100 sensor and R404A refrigerant system for stable cooling. Built-in safety mechanisms such as rotor axial fan cooling and efficient plate heat exchange system ensure reliable operation and equipment protection. Our Recirculating Chiller also supports RS485 interface for seamless integration.
Specifications
| Temperature Range | RT to 40℃ |
| Ambient Temperature | ≤30 ℃ |
| Optimum Ambient Humidity | 60% |
| Temperature Sensor | PT100 |
| Chiller Type | Air cooling |
| Phase Number | 3 |
| Cooling Capacity | RT: 12775 W 0℃: 11275 W 40℃: 650 W |
| Compressor Brand | Ankong |
| Compressor Power | 4500 W |
| Refrigerant Type | R404A |
| Outer Circulation Nozzle Size | 20 DN |
| Opening Diameter | 320 mm |
| Tank Volume | 50 L |
| Circulating Pump Type | Shielding Pump |
| Pump Power | 280 W |
| Rated Lift | 12 M |
| Rated Flow | 35 L/min |
| Fan Type | External Rotor Axial Fan |
| Number of Fans | 1 |
| Control System | Siemens S7-200 Smart PLC |
| Programming | 5 Programs |
| Operation Panel | 7–inch Siemens Color Touch Screen |
| Data Output | USB (TXT Format Support) |
| Power Consumption | 5750 Watt |
| Power Supply | 220V, 50/60Hz |
| Dimension | 770 × 670 × 1180 |
| Net Weight | 220 Kg |
Features
Applications
Function Implementation Analytical instrument cooling Defined cooling capacity maintains stable operating temperature Laser system regulation -40 C range supports temperature-sensitive equipment Chemical process control 35 L/min circulation sustains continuous heat removal Pharmaceutical temperature management PLC-controlled system regulates defined thermal conditions Biotechnology research support PT100 monitoring maintains precise cooling accuracy
Lab Expo Recirculating Chiller supports precision cooling workflows where continuous temperature stability and closed-loop circulation are required for sensitive instruments and processes. The system operates with high-efficiency heat exchange and digitally regulated temperature control to maintain accurate setpoints. Integrated safety functions, including overheat protection, low-level alarms, and automatic restart, ensure controlled operation, while durable build supports precise, long-term cooling performance for daily use.
