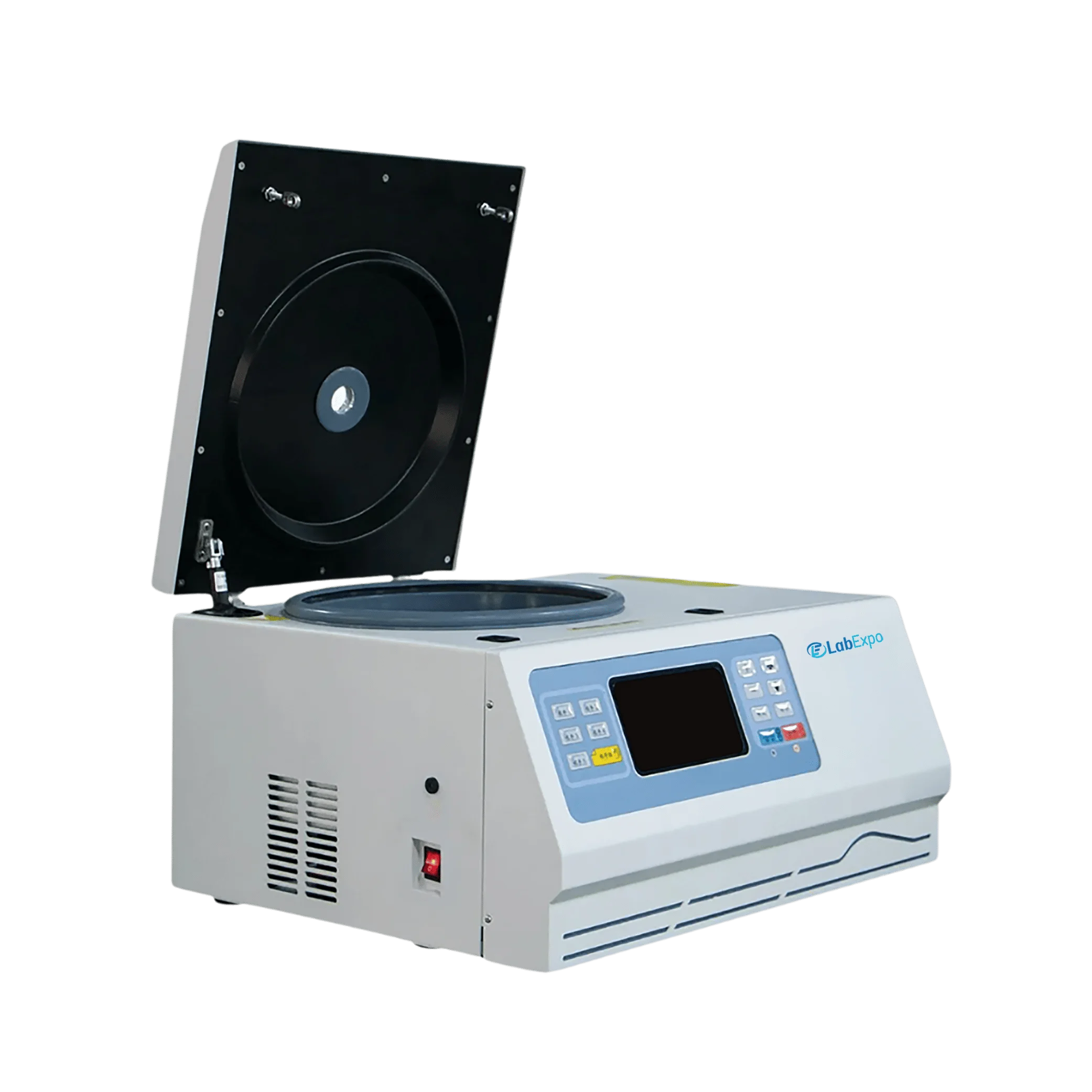

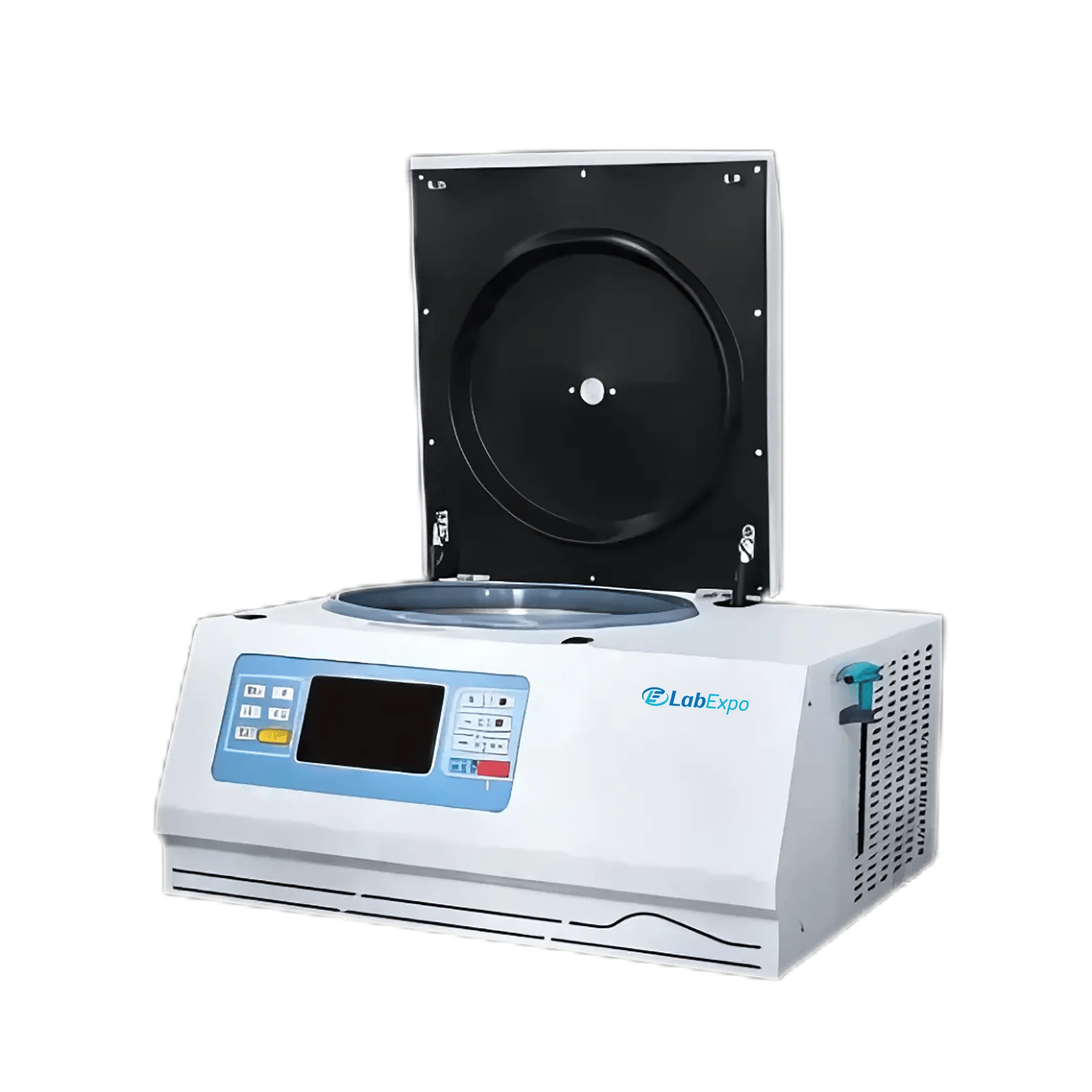

High Speed Refrigerated Centrifuge 02A-HRC105 offers a maximum speed of 16500 rpm, enabling efficient separation of samples at high speeds. It operates within a temperature range of -20°C to 40°C, ensuring optimal cooling for sensitive samples during centrifugation. It features microcomputer control, automating key functions to ensure precise and efficient operation. Our centrifuge is equipped with eco-friendly refrigeration and is designed to provide efficient cooling.
Specifications
| Max Speed | 16500 rpm |
| Temp Range | -20℃ to 40℃ |
| Max RCF | 19175 × g |
| Max Capacity | 4× 100 ml |
| Temp Accuracy | ±1.0℃ |
| Timer | 1 s to 99 h 59 min 59 s |
| Revolutions/min | ±10 r/min |
| Noise Level | ≤ 60 dB (A) |
| Rotor Automatic Identification | Yes |
| Voltage | AC 220 ± 22 V, 50 Hz, 15 A |
| Power | 800W |
| Dimension (W × D × H) | 610 × 560 × 370 mm |
| Weight | 73 kg |
Features
Applications
Function Implementation High-force separation Elevated rpm enables efficient phase stratification Cold sample handling Stable temperature range preserves sample integrity Accurate protocol control Microcomputer system maintains set parameters Safe rotor configuration Automatic identification prevents incorrect setup Layer protection during stop Controlled braking reduces sample disturbance
Rotor Selection
Type | Capacity (ml) | Max Speed (rpm) | Max RCF (×g) |
Angle Rotor 01 | 12×1.5/2.0ml | 16500rpm | 19175×g |
Angle Rotor 02 | 12×5ml | 16000rpm | 17344×g |
Angle Rotor 03 | 24×1.5/2.0ml | 14000rpm | 18823×g |
Angle Rotor 04 | 8×8×0.2ml PCR Row | 14000rpm | 15032×g |
Angle Rotor 05 | 12×10ml | 13000rpm | 15228×g |
Angle Rotor 06 | 6×50ml (Round bottom) | 12000rpm | 14610×g |
Angle Rotor 07 | 6×50ml (Conical/round bottom) | 12000rpm | 16227×g |
Angle Rotor 08 | 12×15ml (Conical bottom) | 11000rpm | 13730×g |
Angle Rotor 09 | 4×100ml | 11000rpm | 14298×g |
Lab Expo Refrigerated Centrifuge supports temperature-controlled separation workflows where high-speed centrifugation and active cooling are required to protect sample integrity. This cooling centrifuge operates with microprocessor-regulated speed and refrigeration to maintain defined temperatures during runs. Digital displays manage speed, time, and RCF, while electronic lid locking and protections against overspeed, overheating, and imbalance ensure controlled, repeatable centrifugation for demanding laboratory operations.
