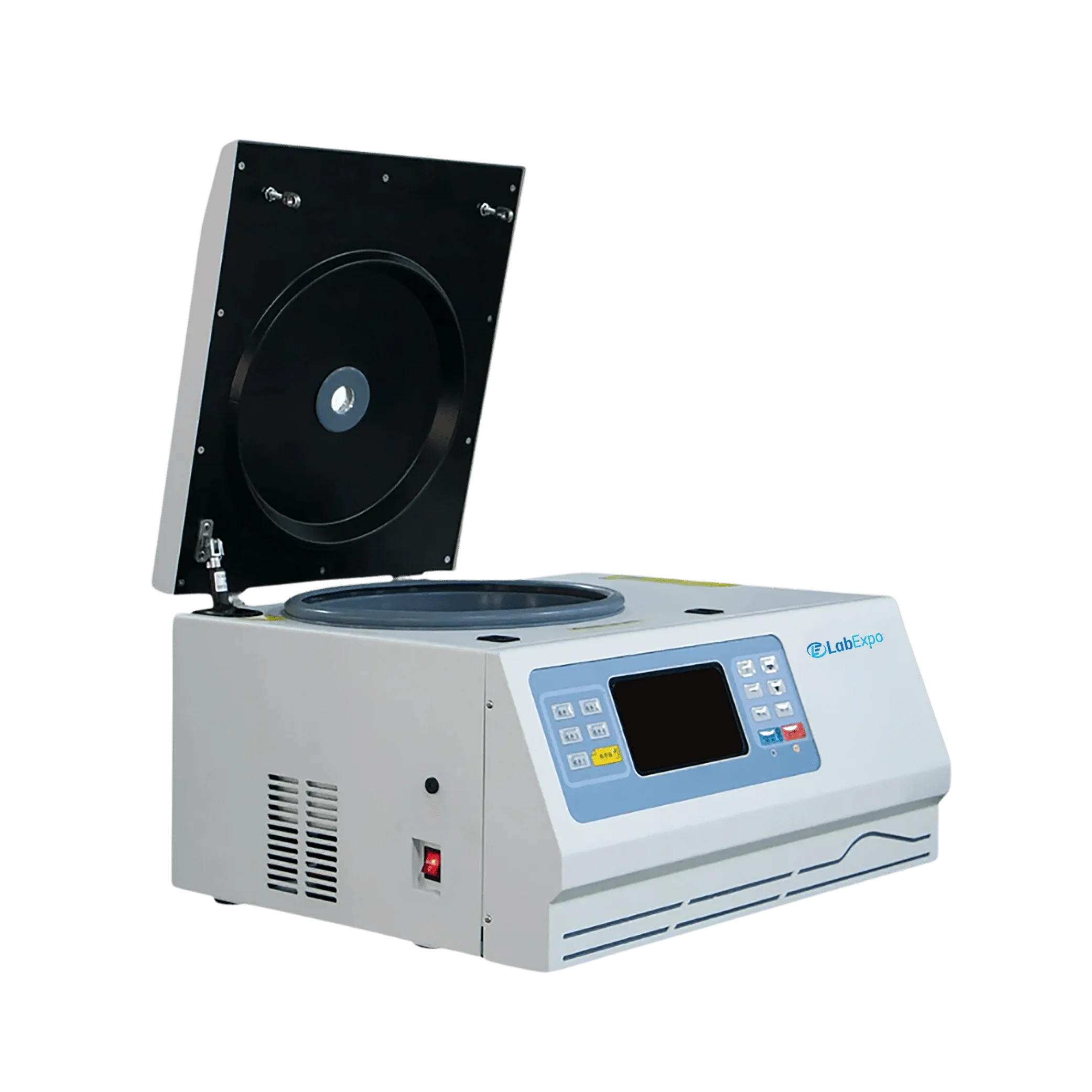

High Speed Refrigerated Centrifuge 02A-HRC107 offers a maximum speed of 20,000 rpm, ensuring efficient sample processing at high rotational forces. It operates within a temperature range of -20°C to 40°C and provides precise control over temperature-sensitive samples. It includes dual timing modes, enabling users to choose between start-timing and arrival revolution timing. Our centrifuge powered by advanced motor technology ensures high-speed performance with a brushless motor.
Specifications
| Max Speed | 20000 rpm |
| Temp Range | -20℃ to 40℃ |
| Max RCF | 31115 × g |
| Max Capacity | 4× 250 ml |
| Temp Accuracy | ±1.0℃ |
| Timer | 1 s to 99 h 59 min 59 s |
| Revolutions/min | ±10 r/min |
| Noise Level | ≤ 60 dB (A) |
| Rotor Automatic Identification | Yes |
| Voltage | AC 220 ± 22 V, 50 Hz, 15 A |
| Power | 1.2KW |
| Dimension (W × D × H) | 680 × 660 × 400 mm |
| Weight | 108 kg |
Features
Applications
Function Implementation High-force biological separation Efficient sedimentation of cells, proteins and particulates Temperature-controlled centrifugation Processing of heat-sensitive laboratory samples Medium-volume laboratory workflows Four-tube configuration supporting batch centrifugation Clinical and research processing Robust refrigerated fractionation for diagnostics and analytical use
Rotor Selection
Rotor Type | Capacity | Max Speed (rpm) | Max RCF (×g) |
Angle Rotor 01 | 16×1.5/2.0ml | 20000 | 30677 |
Angle Rotor 02 | 24×1.5/2.0ml | 18000 | 31115 |
Angle Rotor 03 | 12×5ml | 16000 | 17344 |
Angle Rotor 04 | 12×10ml | 16000 | 23068 |
Angle Rotor 05 | 32×1.5/2.0ml | 16000 | 26044 |
Angle Rotor 06 | 48×1.5/2.0ml | 16000 | 27762 |
Angle Rotor 07 | 12×15ml/Conical bottom | 14000 | 22241 |
Angle Rotor 08 | 6×50ml/Round bottom | 13000 | 17146 |
Angle Rotor 09 | 6×50ml (Conical/Round bottom) (Include Adapter 6×15ml/Conical bottom） | 12500 | 17608 |
Angle Rotor 10 | 4×100ml | 12000 | 17016 |
Angle Rotor 11 | 6×100ml | 12000 | 17548 |
Angle Rotor 12 | 8×50ml (Conical/Round bottom) | 10000 | 12611 |
Angle Rotor 13 | 60×1.5ml | 15000 | 18826 |
Angle Rotor 14 | 40×15ml | 5000 | 4919 |
Swing-out Rotor 01 | 4×100ml | 5000 | 3717 |
Swing-out Rotor 02 | 4×250ml (Round bucket) | 4200 | 3352 |
Swing-out Rotor 03 | 4×250ml (Square bucket) (Including 1 set of optional adapter) | 4200 | 3352 |
Swing-out Rotor 04 | Micro-plate 2×2×96 hole | 4200 | 2267 |
Lab Expo Refrigerated Centrifuge supports temperature-controlled separation workflows where high-speed centrifugation and active cooling are required to protect sample integrity. This cooling centrifuge operates with microprocessor-regulated speed and refrigeration to maintain defined temperatures during runs. Digital displays manage speed, time, and RCF, while electronic lid locking and protections against overspeed, overheating, and imbalance ensure controlled, repeatable centrifugation for demanding laboratory operations.
