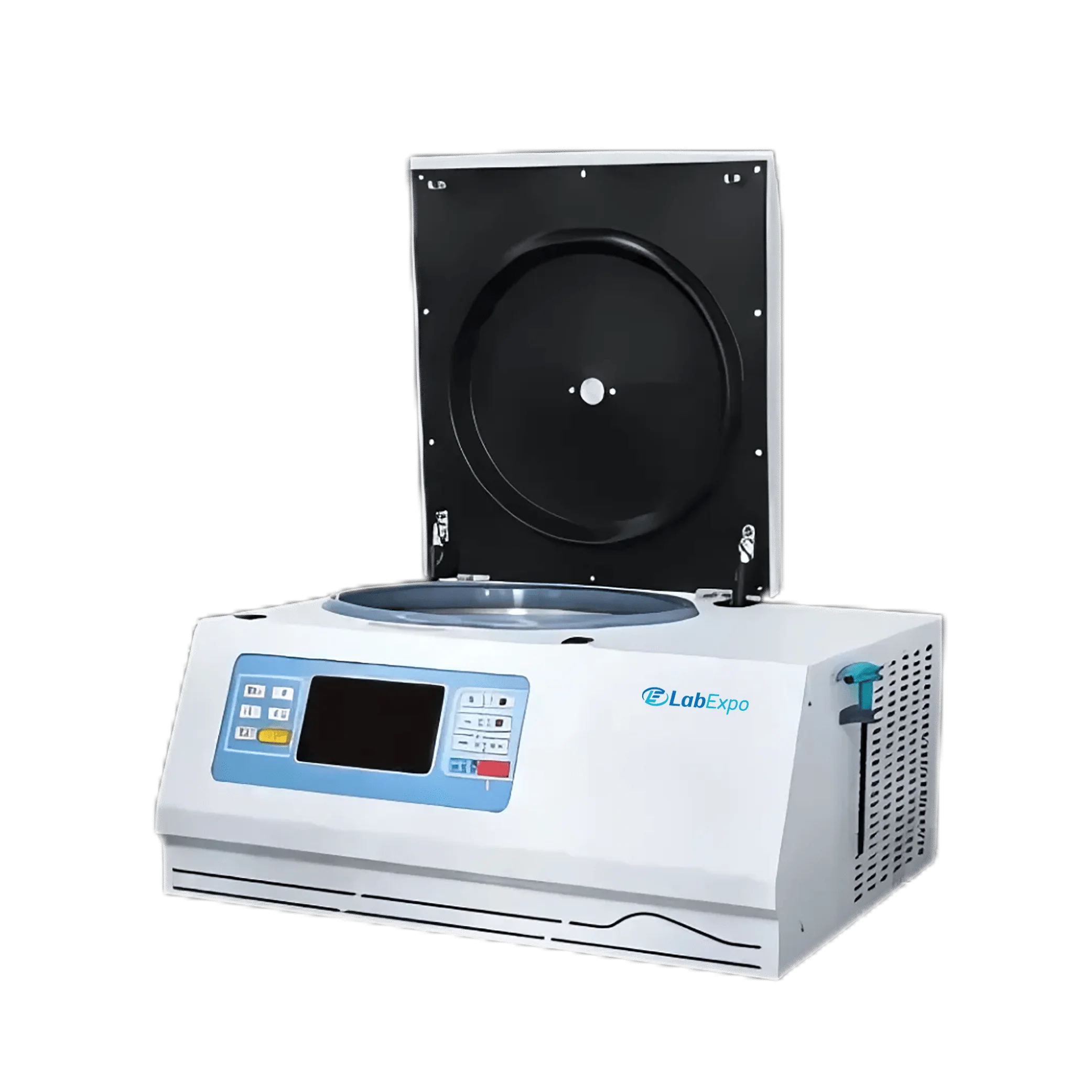

High Speed Refrigerated Centrifuge 02A-HRC108 is designed with a maximum speed of 21,000 RPM, delivering high-performance processing. It has a maximum capacity of 4 tubes of 750 ml, for efficient handling of large-volume samples. It features a full steel inner cavity protective cover for enhanced durability and safety during operation. Our centrifuge is equipped with an HD LCD ensuring precise control and monitoring of centrifugation parameters.
Specifications
| Max Speed | 21000 rpm |
| Temp Range | -20℃ to 40℃ |
| Max RCF | 32868 × g |
| Max Capacity | 4× 750 ml |
| Temp Accuracy | ±1.0℃ |
| Timer | 1 s to 99 h 59 min 59 s |
| Revolutions/min | ±10 r/min |
| Noise Level | ≤ 60 dB (A) |
| Rotor Automatic Identification | Yes |
| Voltage | AC 220 ± 22 V, 50 Hz, 15 A |
| Power | 1.5KW |
| Dimension (W × D × H) | 730 × 660 × 400 mm |
| Weight | 118 kg |
Features
Applications
Function Implementation High-force biological separation Efficient sedimentation of cells, proteins and particulates Temperature-controlled centrifugation Processing of heat-sensitive laboratory samples Medium-large volume workflows Four 750 ml capacity supporting batch centrifugation Clinical and research processing Robust refrigerated fractionation for diagnostics and analytical use
Rotor Selection
Rotor Name | Capacity | Max Speed (rpm) | Max RCF (×g) |
Angle rotor 01 | 12×1.5/2.0ml | 21000rpm | 31061×g |
Angle rotor 02 | 12×5ml | 18000rpm | 21951×g |
Angle rotor 03 | 24×1.5/2.0ml | 18500rpm | 32868×g |
Angle rotor 04 | 12×10ml | 15000rpm | 20274×g |
Angle rotor 05 | 48×1.5/2.0ml | 15000rpm | 24400×g |
Angle rotor 06 | 4×100ml | 14000rpm | 23161×g |
Angle rotor 07 | 12×15ml (Conical bottom) | 14000rpm | 22241×g |
Angle rotor 08 | 6×50ml (Round bottom) | 14000rpm | 19885×g |
Angle rotor 09 | 8×8×0.2ml PCR | 14000rpm | 15032×g |
Angle rotor 10 | 6×50ml (Conical/round bottom（Include Adapter 6*15ml/Conical bottom | 13000rpm | 19045×g |
Angle rotor 11 | 8×50ml (round bottom) | 12000rpm | 15615×g |
Angle rotor 12 | 8×50ml (Conical/round bottom) Include Adapter 8*15ml/Conical bottom） | 11000rpm | 14088×g |
Angle rotor 13 | 6×100ml | 11000rpm | 14745×g |
Swing-out rotor 01 | 4×250ml (Round bottle) | 4200rpm | 3352×g |
Swing-out rotor 02 | 4×250ml (Round bottle)/with biosafety lid | 4200rpm | 3352×g |
Swing-out rotor 03 | 4×250ml (Square bucket) (Including 1 set of optional adapter) | 4200rpm | 3352×g |
Swing-out rotor 04 | 4×500ml (round bucket) | 4200rpm | 3510×g |
Swing-out rotor 05 | 4×500ml (round bucket) (with biosafety lid) | 4200rpm | 3510×g |
Swing-out rotor 06 | 4×500ml (Square bucket) (Including 1 set of optional adapter) | 4200rpm | 3510×g |
Swing-out rotor 07 | 4×750ml (Round bucket) | 4200rpm | 3648×g |
Swing-out rotor 08 | 4×750ml (Round bucket)/with biosafety lid | 4200rpm | 3648×g |
Swing-out rotor 09 | 4×750ml (Square bucket) (Including 1 set of optional adapter) | 4200rpm | 3648×g |
Swing-out rotor 10 | Micro-plate 4×2×96 hole | 4200rpm | 3648×g |
Swing-out rotor 11 (Square Bucket) | Square basket include：Adapter 4×10×15ML/Conical bottom Adapter 4×4×50ML/Conical bottom | 4200rpm | 3648×g |
Lab Expo Refrigerated Centrifuge supports temperature-controlled separation workflows where high-speed centrifugation and active cooling are required to protect sample integrity. This cooling centrifuge operates with microprocessor-regulated speed and refrigeration to maintain defined temperatures during runs. Digital displays manage speed, time, and RCF, while electronic lid locking and protections against overspeed, overheating, and imbalance ensure controlled, repeatable centrifugation for demanding laboratory operations.
