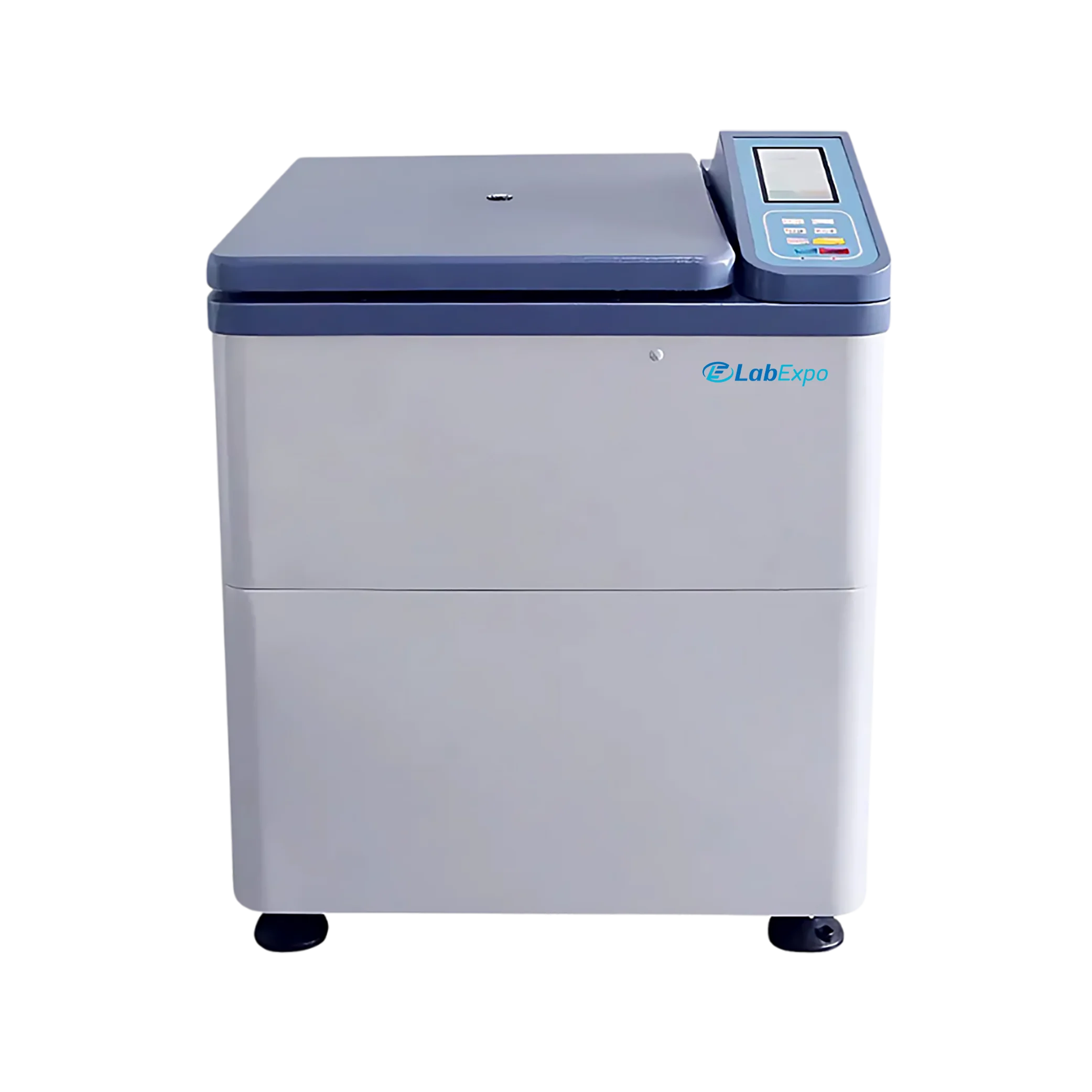

Floor High Speed Refrigerated Centrifuge 02A-HRC115 boasts an impressive maximum speed of 25,000 rpm, ensuring rapid and efficient sample separation. It provides a capacity for up to 4 tubes with 1000 ml each, making it suitable for processing large sample volumes. It features energy-efficient ECO refrigeration for optimized performance and reduced energy consumption. Our centrifuge is powered by an AC frequency conversion brushless motor ensuring fast, stable, and reliable operation.
Specifications
| Max Speed | 25000 rpm |
| Max RCF | 64800 × g |
| Temp Range | -20℃ to 40℃ |
| Max Capacity | 4 × 1000 ml |
| Temp Accuracy | ±1.0℃ |
| Timer | 1 s to 99 h 59 min 59 s |
| Revolutions/min Accuracy | ±10 r/min |
| Rotor Automatic Identification | Yes |
| Noise Level | ≤ 65 dB (A) |
| Voltage | AC 220 ± 22 V 50 Hz 25 A |
| Power | 4.5KW |
| Net Dimension (W × D × H) | 815 × 735 × 1060 mm |
| Gross Dimension (W × D × H) | 830 × 940 × 1330 mm |
| Net Weight | 260 kg |
| Gross Weight | 325 Kg |
Features
Applications
Function Implementation Ultra high-force separation Rapid sedimentation of sub-cellular components and macromolecules Temperature-controlled centrifugation Processing of heat-sensitive biological and pharmaceutical samples Large-volume preparation 4 x 1000 ml capacity supporting bulk research and industrial workflows Clinical and research processing Robust refrigerated centrifugation for advanced laboratory protocols Industrial scale separation High RCF performance for demanding preparative applications
Rotor Selection
Rotor Type | Capacity (ml) | Max Speed (rpm) | Max RCF (×g) |
Angle Rotor 01 | 24×1.5/2.0ml (titanium alloy) | 25000 | 64800 |
Angle Rotor 02 | 18×10ml | 23000 | 60460 |
Angle Rotor 03 | 8×50ml (round bottom)/ (titanium alloy) | 21000 | 52356 |
Angle Rotor 04 | 8×50ml (Round bottom) | 20000 | 46420 |
Angle Rotor 05 | 6×50ml (Conical/Round bottom) （Include Adapter 6*15ml/Conical bottom） | 18000 | 33506 |
Angle Rotor 06 | 6×250ml | 14000 | 30074 |
Angle Rotor 07 | 8×100ml | 13000 | 19830 |
Angle Rotor 08 | 6×500ml | 10000 | 17700 |
Angle Rotor 09 | 4×1000ml | 8000 | 12040 |
Lab Expo Refrigerated Centrifuge supports temperature-controlled separation workflows where high-speed centrifugation and active cooling are required to protect sample integrity. This cooling centrifuge operates with microprocessor-regulated speed and refrigeration to maintain defined temperatures during runs. Digital displays manage speed, time, and RCF, while electronic lid locking and protections against overspeed, overheating, and imbalance ensure controlled, repeatable centrifugation for demanding laboratory operations.
