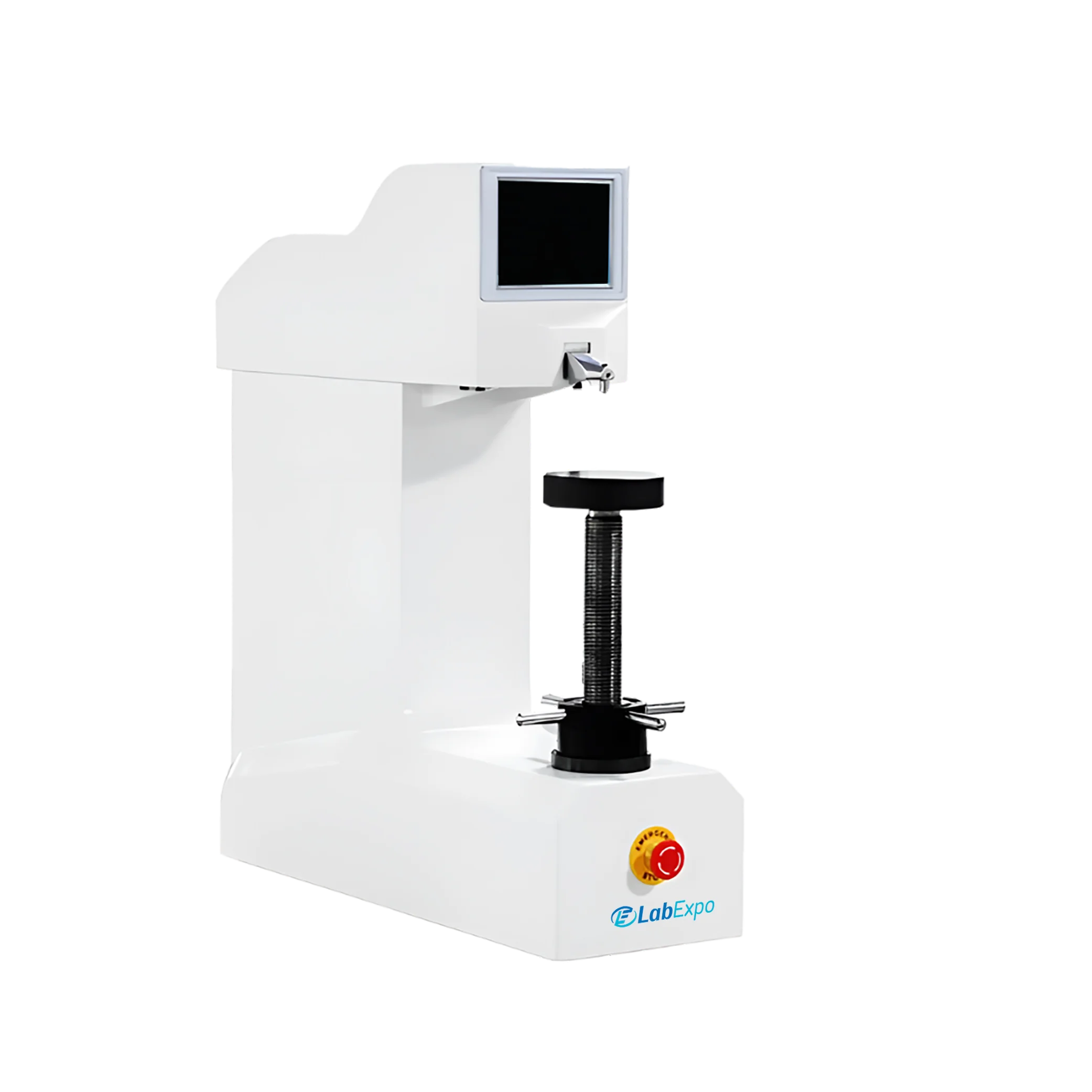

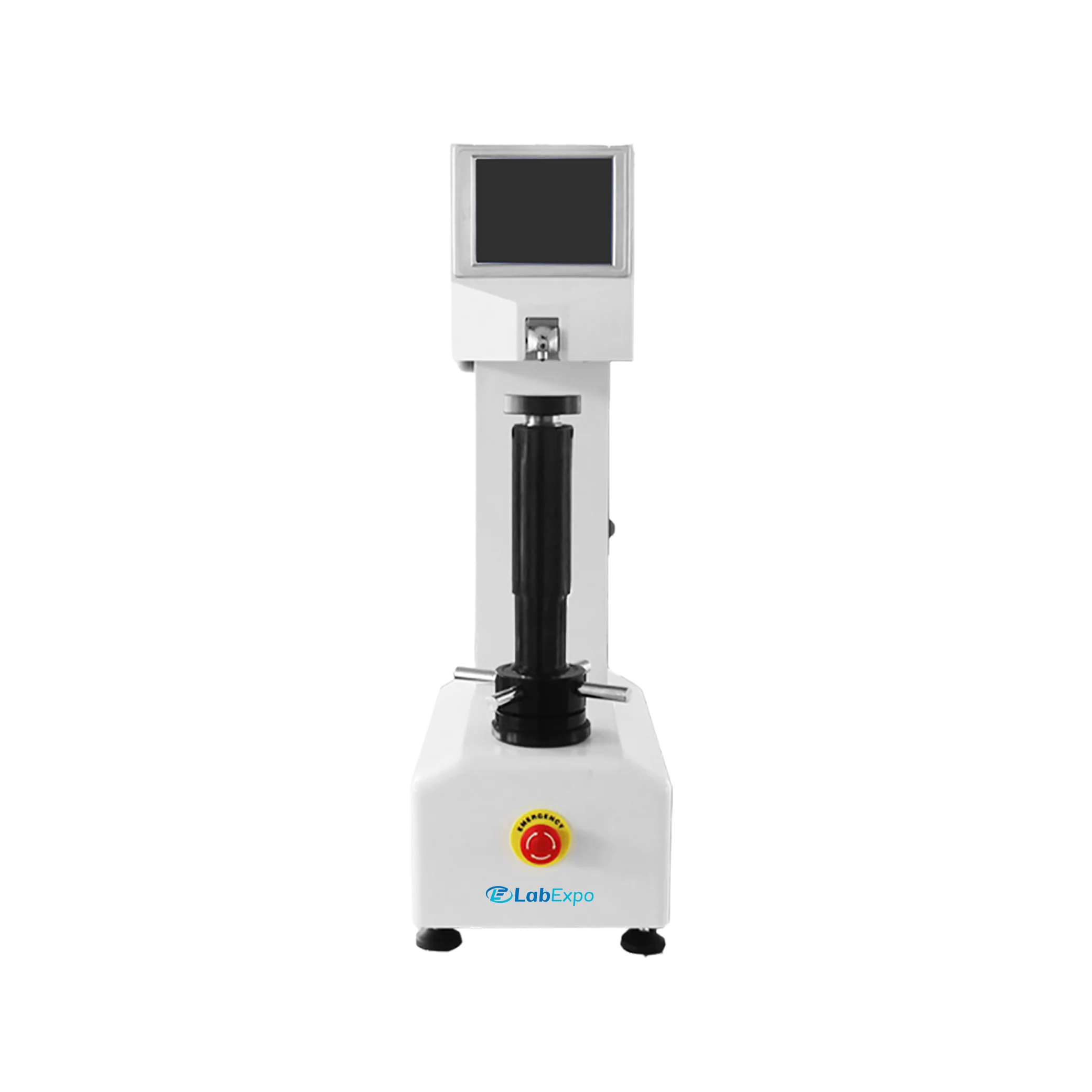

Rockwell Hardness Tester 10-RHT102 is designed with an initial test force of 10 kgf (98.07 n). It features a horizontal extending indenter, providing smooth and consistent penetration. Integrated dwell time allows precise control from 0 to 99 seconds, ensuring accurate hardness measurements. Built-in lcd display for clear visualization for easy operation and accurate readings. Our Rockwell Hardness Tester is widely used for measuring material hardness in metallurgical, automotive, and manufacturing industries.
Specifications
| Initial Test Force | 10 kgf (98.07 N) |
| Total Test Force | 60 kgf (588 N), 100 kgf (980 N), 150 kgf (1471 N) |
| Hardness Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
| Test Range | HRA: 20 to 88, HRB: 20 to 100, HRC: 20 to 70, HRD: 40 to 77, HRE: 70 to 100, HRF: 60 to 100, HRG: 30 to 94, HRH: 80 to 100, HRK: 40 to 100, HRL: 100 to 120, HRM: 85 to 115, HRR: 114 to 125 |
| Dwell Time | 0 to 99 s |
| Hardness Value Resolution | 0.1 HR |
| Test Force Error | <1.0% |
| Data Output | LCD Display |
| Data Storage | Measured Values Saved in USB Flash Drive (EXCEL format) |
| Conversion Scale | Surface Rockwell, Brinell, Vickers |
| Complies With Standards | BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
| Maximum Allowable Specimen Height | 300 mm |
| Distance from Pressure Head to Machine Wall | 250 mm |
| Power Supply | AC 220V ±5%, 50 to 60 Hz |
| Dimension | 720 × 260 × 840 mm |
| Weight | 80 Kg |
Features
Applications
Rockwell Hardness Tester 10-RHT102 is ideal for applications in the metallurgical industry, manufacturing and production, automotive industry, tooling and die industry, as well as material research and quality assurance.
Lab Expo Rockwell Hardness Tester offers multiple test force options allowing for flexibility in measuring the hardness of various materials. They are equipped with an automatic load application system which ensures consistent and precise testing. These high accuracy features of the Rockwell Hardness Tester deliver precise hardness values. They feature an easy-to-read display, either digital or analog, which allows users to quickly view and record results. These fast-testing times offered by the tester improve efficiency in material testing. Our tester's user-friendly interface makes operation simple and minimizes the chances of user error.
