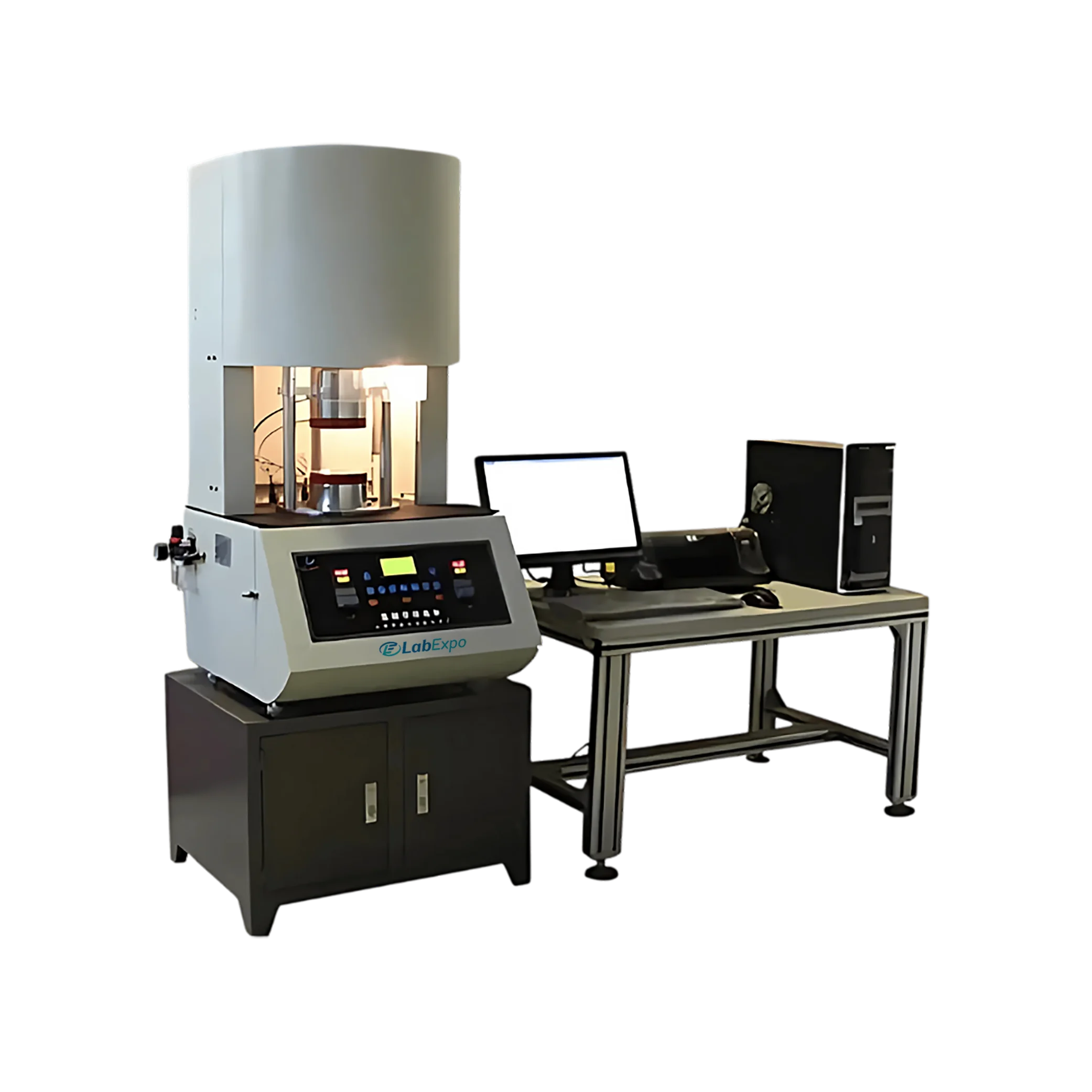

No Rotor Rheometer 61-RTI100 offers a temperature range from room temperature up to 200°C for versatile testing. It utilizes highly imported precision sensors for accurate and reliable measurement results. Integrated LCD display provides clear visualization of testing parameters. Equipped with precision sensors for accurate and consistent measurement performance. Our No Rotor Rheometer is well-suited for accurately testing vulcanization and curing properties of rubber materials in research and quality control.
Specifications
| Temperature Range | Room Temperature to 200°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Control Accuracy | ≤ ± 0.3°C |
| Rotor Speed | 100 times/ min |
| Die Cavity Frequency | 1.7 Hz |
| Sway Angle | ± 0.5°, ± 1°, ± 3° |
| Air Compression | 0.5 MPa to 0.65 MPa |
| Ambient Temperature | 0 to 35°C |
| Test Result | Printed Date, Time, Temperature, Vulcanization Curve, Temperature Curve ML, MH, ts1, ts2, t10, t50, Vc1, Vc2 |
| Display | Windows 7 + Software |
| Torque Range | 0 to 5 NM, 0 to 10 NM, 0 to 20 NM |
| Torque Resolution | 0.001 NM |
| Power Supply | Single Phase, 220 V ± 10%, 50 Hz |
| Dimension | 1310 × 560 × 620 mm |
| Weight | 250 Kg |
Features
Applications
No Rotor Rheometer 61-RTI100 is ideal for testing vulcanization characteristics of rubber materials in quality control and research across the rubber industry.
Lab Expo offers Rubber Testing Instruments designed to measure the properties of elastomers, including viscosity, scorch time, and cure rates of rubber and plastic materials. They utilize PID-controlled microprocessors and highly imported precision sensors to provide real-time data on the viscosity and curing processes. They offer advanced features such as statistics, analysis, storage, and comparison functions to enhance the testing experience. Our instruments provide a built-in printer for efficient result documentation. They support seamless data visualization and reporting via a data acquisition system. Our instrument features a user-friendly interface, along with a built-in LCD, ensuring ease of operation.
