Salt Spray Test Chamber 24-STC101
Product1
Product2

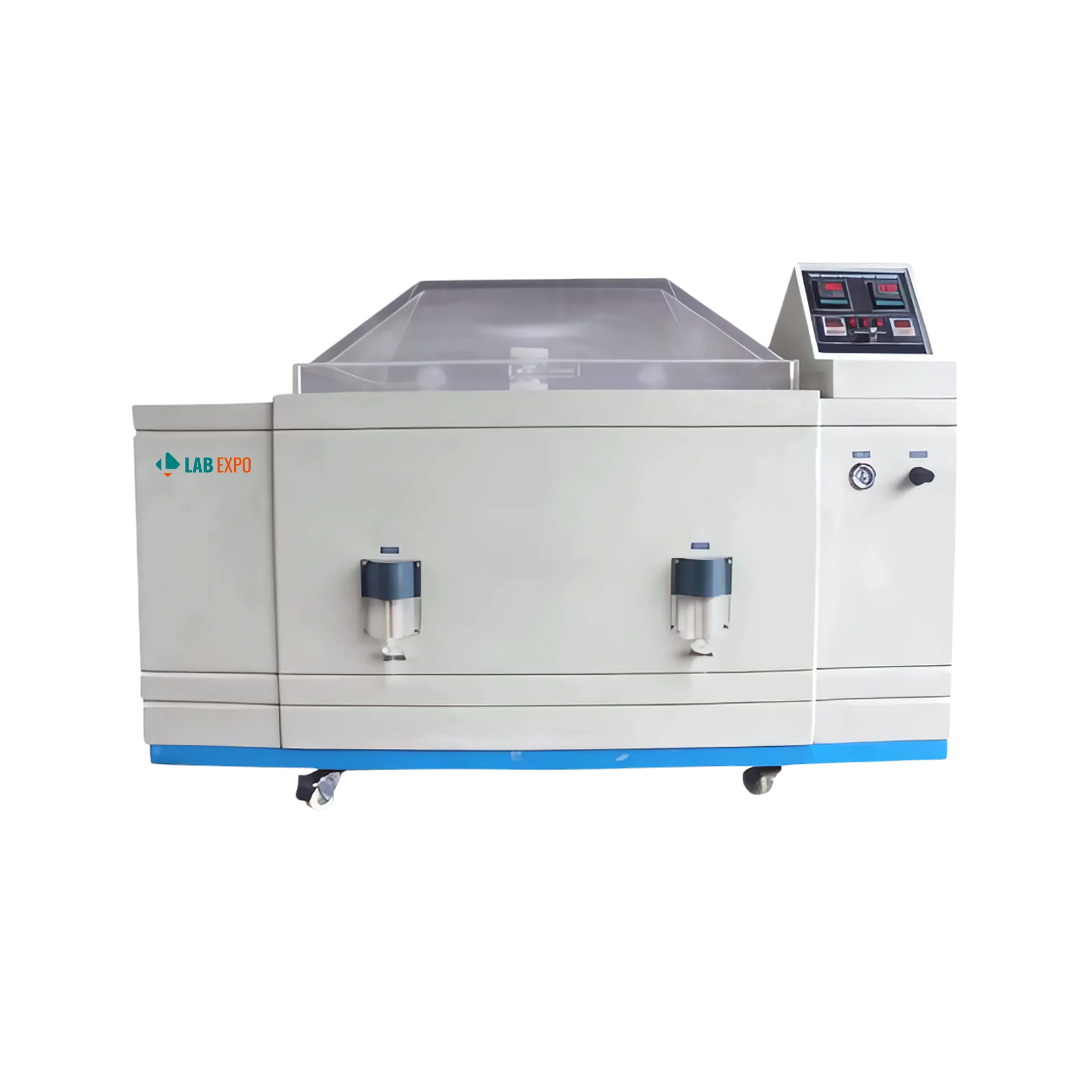

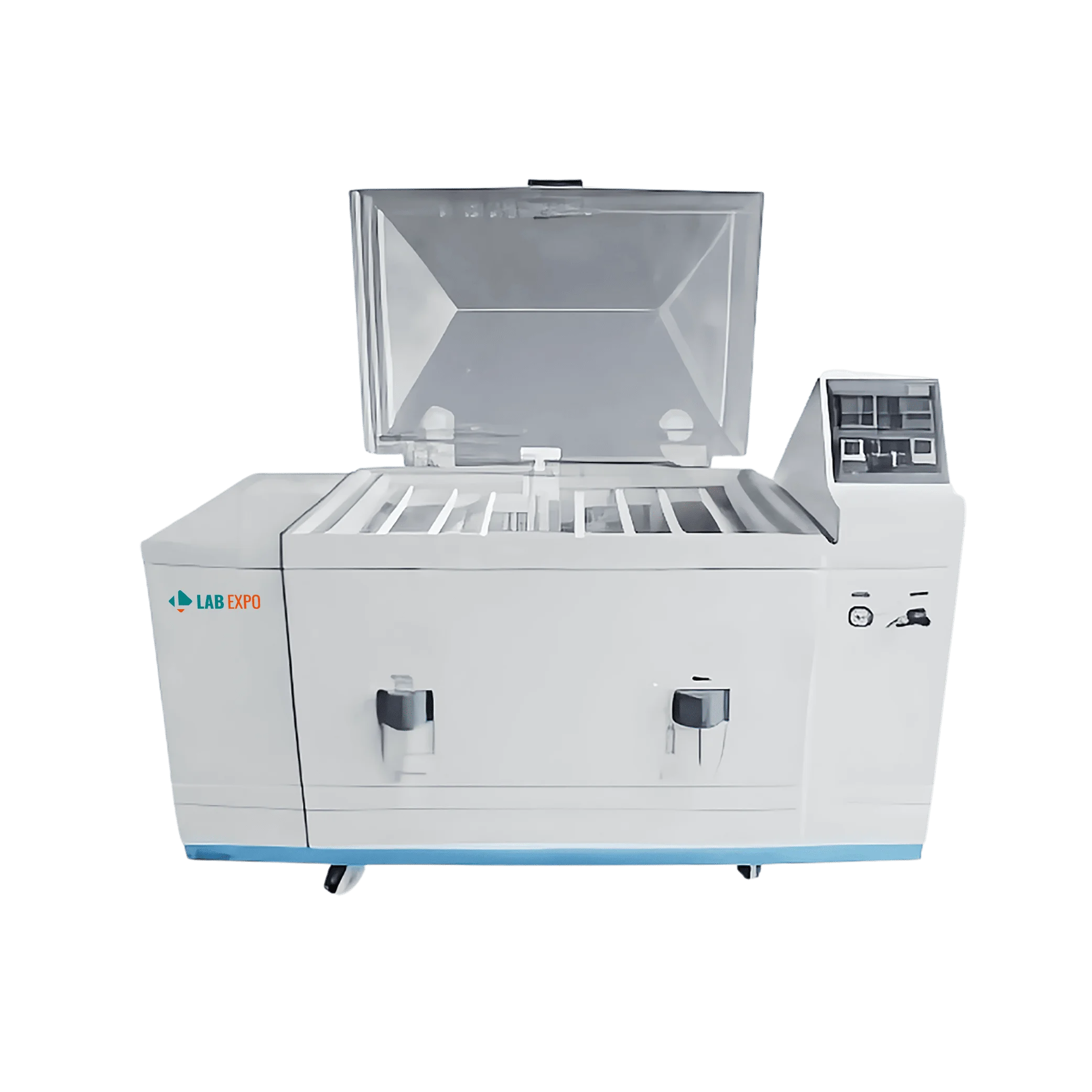

Salt Spray Test Chamber 24-STC101

Salt Spray Test Chamber 24-STC101 works from ambient to 60°C to simulate various conditions for accurate corrosion testing. It has a testing room capacity of 320 liters and accommodates a wide range of specimen sizes for in-depth testing. Our test chamber has smooth interior walls that maintain accurate angles and prevent crystalline build-up during long-term spraying tests.

Specifications

Testing Room Capacity 320 L
Temperature Range Ambient to 60 ℃
Humidity Range 95 % to 98 % RH
Temperature Fluctuations ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Test Time 1 to 999 hours, settable
Spray Deposition 1 to 2 ml / 80 cm2 ·h
Spray Type Continuous / Periodic
Interior /Exterior material Glass fibre reinforced plastics; (corrosion resistance, Anti-aging, high strength)
Input Power 3500 W
Power Supply AC 220 V 50 Hz
Inner Dimension 640 × 1000 × 500 mm
Outer Dimension 810 × 1800 × 1180 mm

Features

  • Digital micro-computer controller with LED display
  • Smooth interior wall, accurate angle and no crystalline in long-time spraying
  • Chamber material: Glass fibre reinforced plastics
  • Safety devices includes high and low pressure protective switch and high humidity temperature protective switches
  • Can be continuous / periodic salt spraying
  • Standard specimen holder, Hydrostatic hood seal, Collectors in fog chamber

Applications

Salt Spray Test Chamber is used to test the corrosive resistance of products Having treated surface such as paints, oil etc. Hence, used in medical, automation and automotive industries.

Catalog

Salt Spray Test Chamber 24-STC101 Catalog

Related Models Of Salt Spray Test Chamber

Lab Expo Salt Spray Test Chambers provide precisely controlled salt spray with continuous and periodic cycles for uniform deposition. They offer wide temperature and humidity range to stimulate environmental conditions. Constructed from high quality, corrosion resistant materials, they are durable under harsh settings. Equipped with safety measures, these units ensure reliable and secure operation. With an interactive display, our Salt Spray Test Chambers maximize convenience and are user-friendly.
