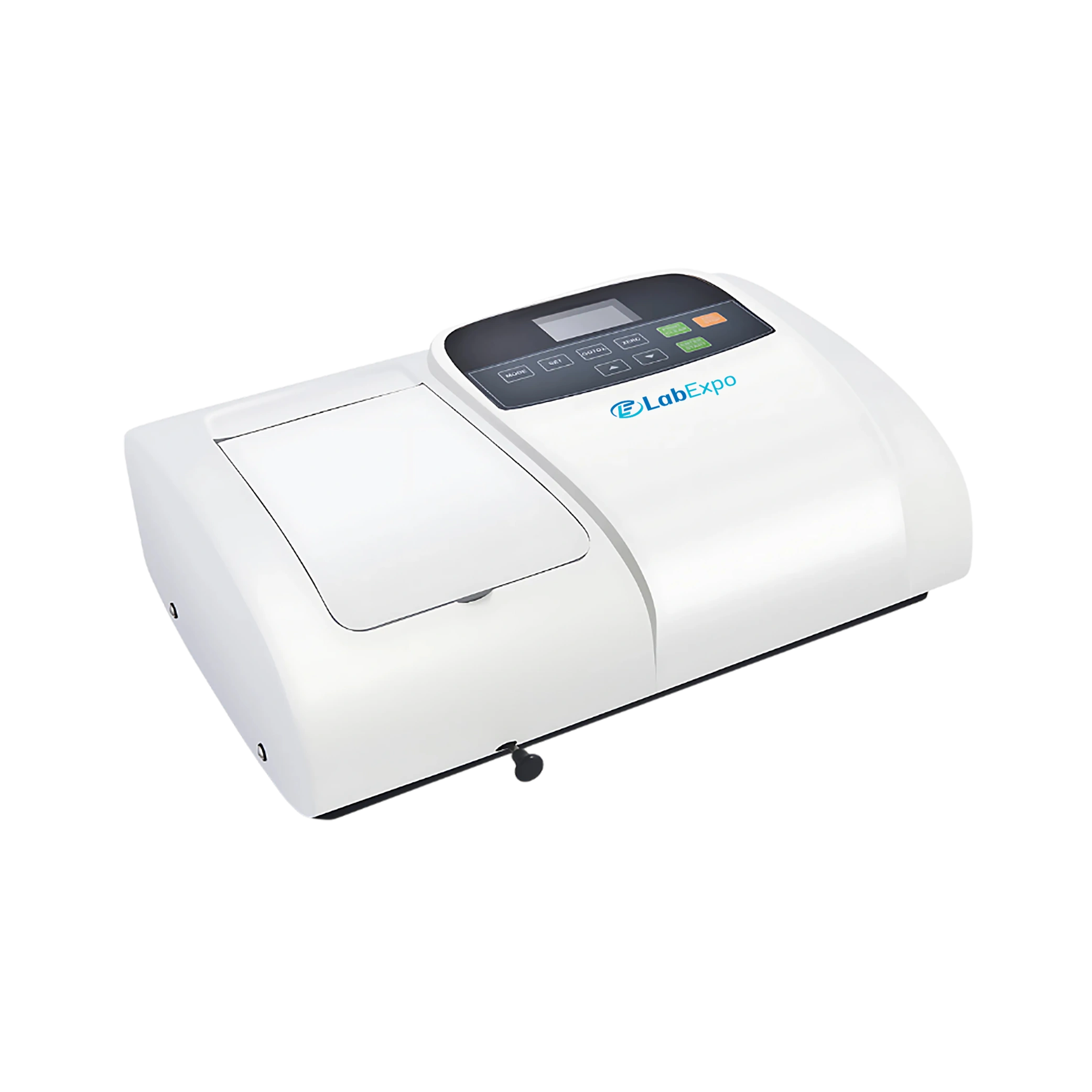

Single Beam UV Spectrophotometer LE-SBS101

Single Beam UV Spectrophotometer LE-SBS101

Single Beam UV Spectrophotometer LE-SBS101 with wavelength range from 190 to 1000 nm for precise measurements. It features high-definition display for clear visualization of standard curves and test results. Built-in Tungsten and Deuterium lamps which ensures long lifespan and reliable photometric accuracy. Equipped with USB and parallel ports for efficient data output and onboard storage. Our Spectrophotometer is ideal for multiple photometric modes, standard curve setup, research and clinical diagnostics.

Specifications

Optical System

Single Beam
Grating

1200 lines/mm
Wavelength Range

190 to 1000 nm
Spectral Bandwidth

2 nm
Wavelength Accuracy

±2 nm
Wavelength Repeatability

≤0.5 nm
Wavelength Setting

Automatically
Wavelength Resolution

0.1 nm
Photometric Accuracy

±0.5 %T
Photometric Repeatability

≤0.2 %T
Photometric Range

-0.3 to 3 A, 0 to 200 %T, 0 to 9999 C
Photometric Mode

T, A, C, F

Stray Light

≤0.1 %T at 220 nm and 360 nm
Stability

≤0.002 A/30 min at 500 nm
Display

128 × 64 Dots LCD
Detector

Silicon Photodiode
Output

USB Port & Parallel Port
Light Source

Tungsten lamp and Deuterium lamp
Power Requirements

AC 85 to 250 V

Features

  • Low Maintenance Design
  • Silicon Photodiode Detector
  • High wavelength resolution
  • Automatic wavelength setting
  • Low stray light performance

Applications

Single Beam UV Spectrophotometer LE-SBS101 is ideal for accurate quantitative analysis in pharmaceuticals, environmental testing, and academic research.

Standard Accessories

  • 1cm Glass cuvette 4 pcs
  • 1cm Quartz cuvette 2 pcs
  • Power cord 1 pcs
  • Dust cover 1 pcs

Optional Accessories

  • 10mm Single-position cell holder
  • Manual 10mm 4-position cell holder
  • 50mm/100mm Universal single-position cell holder
  • Manual 50mm/100mm Universal 4-position cell holder
  • 10mm single-position water jacketed ambient cell holder
  • Transparent film holder
  • Test tube holder
  • Micro thermo printer
  • Tungsten lamp
  • Deuterium lamp
