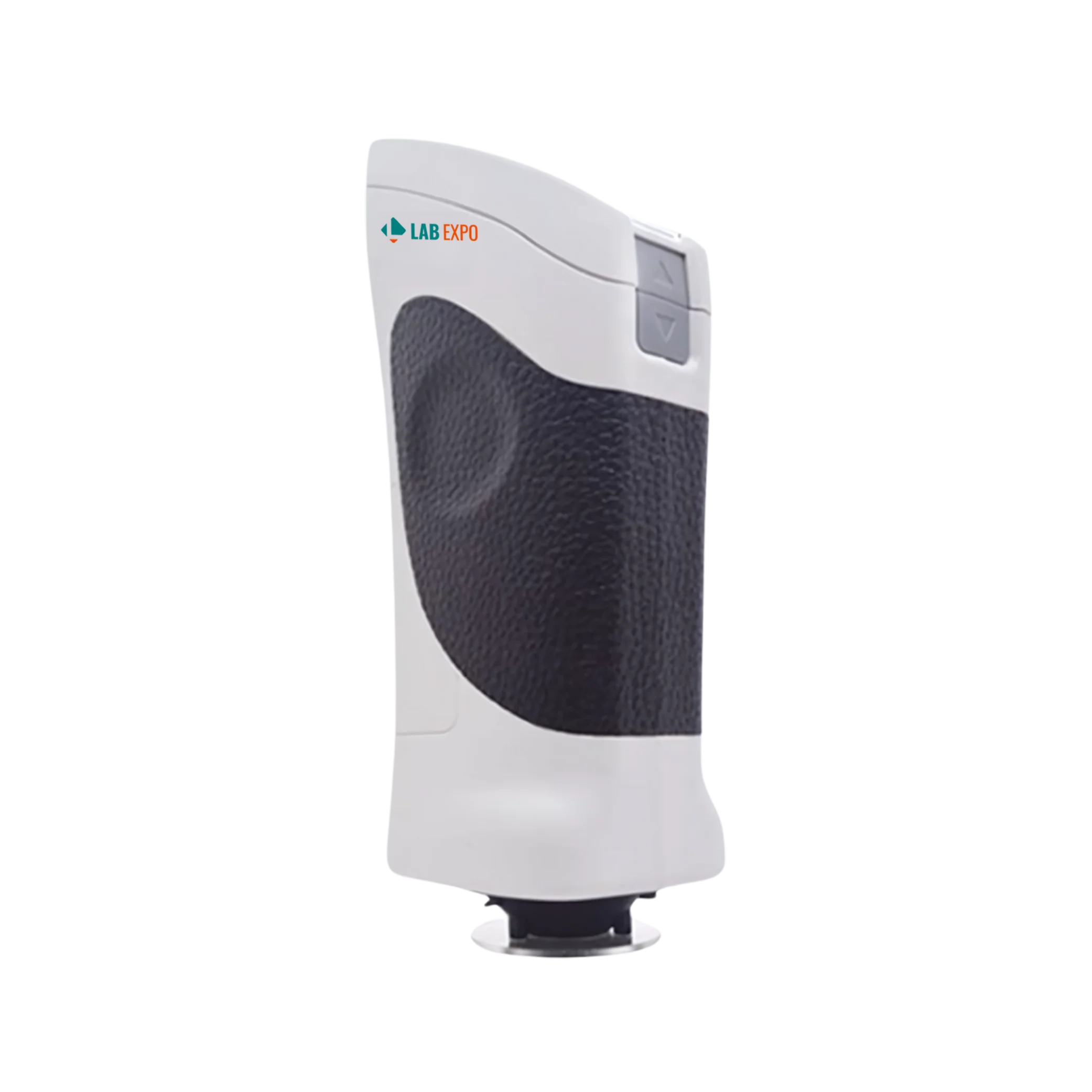

Spectral Colorimeter 700-SCM102 operates in the wavelength range of 400 to 700 nm, delivering a spectral resolution of 10 nm. This device employs advanced spectral measurement technology for enhanced accuracy in color analysis. Its high-quality leather design enhances grip and minimizes slippage during use. Our spectral colorimeter also offers substantial mass storage capacity for efficient management of multiple targets and samples.
$5,222.00 $ 4352
Specifications
| Wavelength | 400 to 700 nm |
| Spectral Resolution | 10 nm |
| Working Temperature | 5 to 45 °C, relative humidity 80 % or below (at 35 °C), no condensation |
| Illumination | Di / 8 (diffusion illumination, 8° viewing), SCI |
| Illumination Light Source | CLED |
| Size of Integrated Sphere | 10 n40 mm, Avian diffused reflection surface coating |
| Measuring Time | 2 s |
| Measurement Caliber Size | 11 mm |
| Optional Measurement Caliber Size | 4 mm, 6 mm, 15 mm |
| Repeatability | Standard deviation ΔE × ab 0.08 (when a white calibration plate is measured 30x at 10 second interval after calibration) |
| Observe Angles | 2° and 10° |
| Light Source | A, C, D50, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, DLF, TL183, TL184, NBF, U30, CWF, U35 |
| Display | Chromaticity value (L × a × b, L × C × h）, ΔE value, pass / fail, color tendency, average, generate test report with camera to see the measurement area, spectrum reflectance figure data, manual input target data |
| Color Difference Formula | ΔE × ab, ΔE × CH, ΔE × uv, ΔE × cmc (2:1), ΔE × cmc (1:1), ΔE × 94, ΔE × 00 |
| Color Space | CIE - L × a × b, L × C × h, XYZ, Yxy, reflectance |
| Data Storage | 100 targets and 200 samples |
| Storage Temperature | (-25 to 55 °C), relative humidity 80 % or below (at 35 °C), no condensation |
| Measurement Indices | WI (whiteness indices) (ASTM E313-10, ASTM E313-73，CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby) YI (yellowness indices) (ASTM D1925，ASTM E313-00, ASTM E313-73) Metameric index, staining fastness, color fastness |
| Screen | Panchromatic True Color Screen |
| Light Source Lifetime | 5 years, 1.5 million times |
| Camera Attachment | Camera viewing for measurement |
| Sensor | Sensor array |
| Battery | Rechargeable Lithium battery |
| Power Supply | 8.4 V / 2000 Mah, adaptor DC 12 V |
| Dimension | 77 × 86 × 210 mm |
| Weight | 550 g |
Features
Applications
Function Implementation Colorant development labs 100 targets and 200 samples enable extensive color matching Textile inspection facilities ±1°C accuracy supports repeatable whiteness indices measurements Plastics manufacturing plants 10 nm spectral resolution ensures precise color assessment Paint and coatings testing labs 400 to 700 nm wavelength range covers a broad color gamut Quality control departments Standard deviation ΔE × ab 0.08 ensures consistent measurement repeatability
Standard Accessories
Adapter
Color management software
USB cable
Black/White calibration tube
Protective cover
Portable bag
Electronic cable charts
Optional Accessories
Micro printer
Lab Expo Spectral Colorimeter supports precision color measurement workflows where spectral accuracy and repeatable data capture are required for quality evaluation and analysis. This spectral colorimeter operates with multi-source diffused illumination and defined viewing geometry to maintain consistent colorimetric results. Digital controls manage calibration, measurement, and data grouping, while onboard display and USB data transfer ensure controlled operation and precise color analysis for routine laboratory and industrial use.
