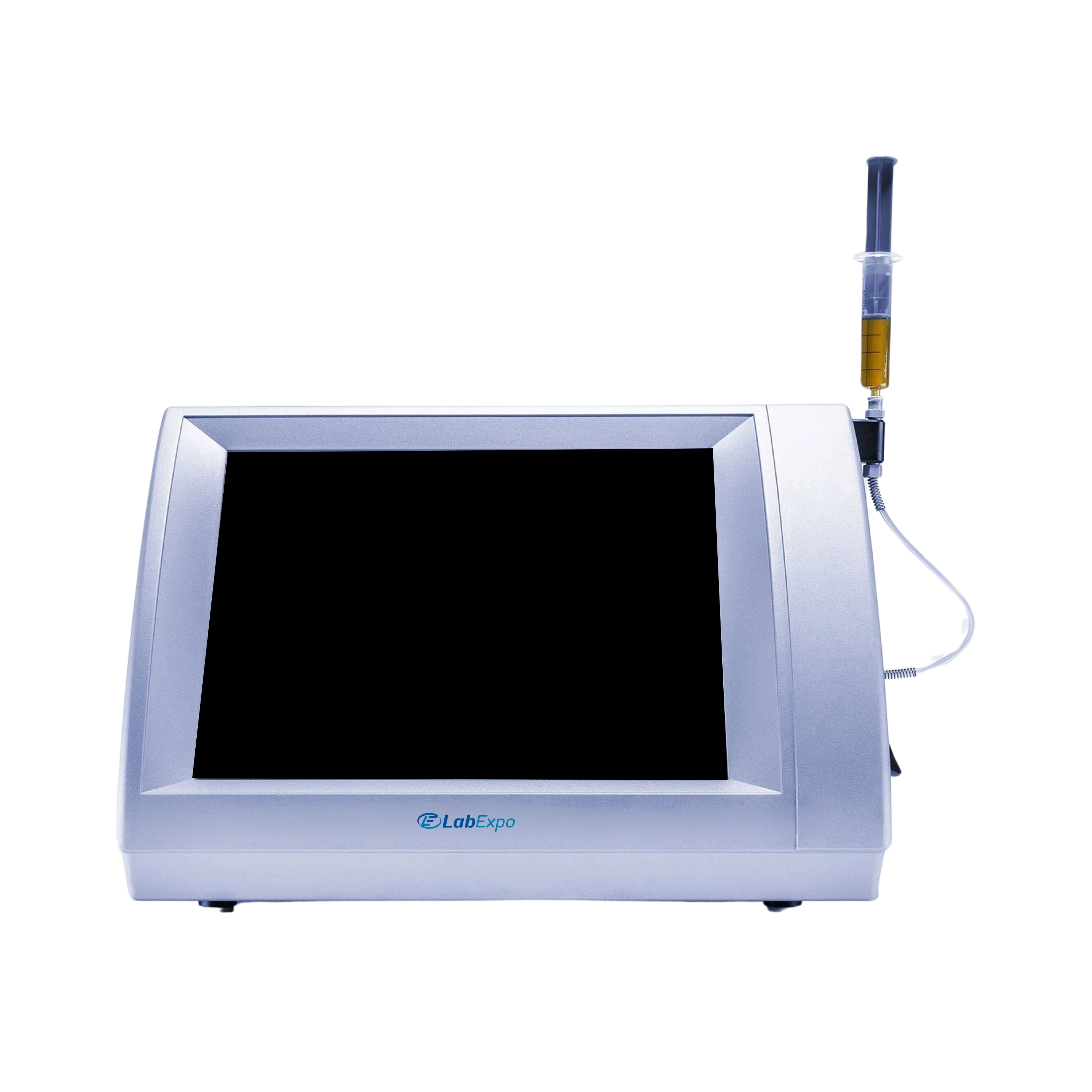

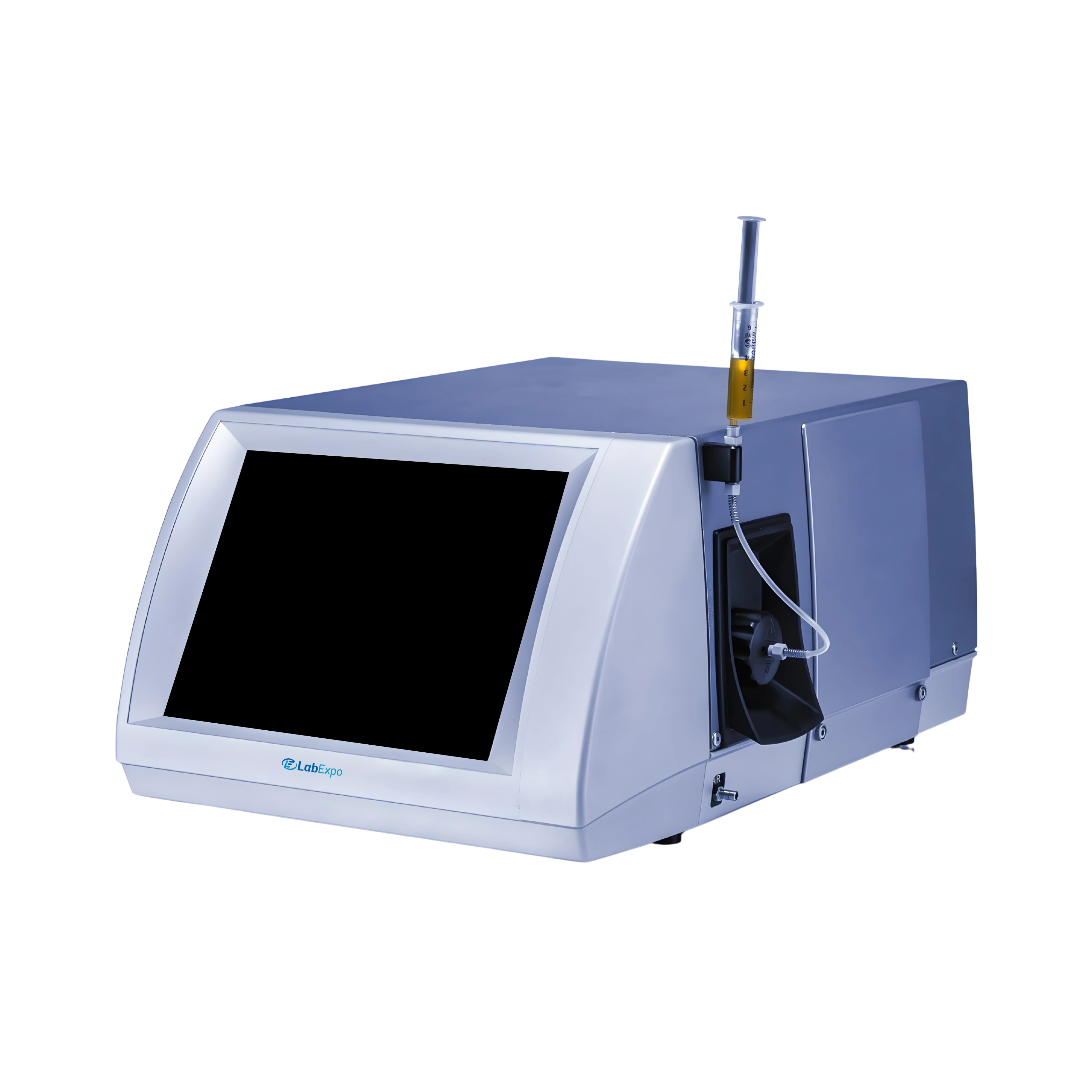

Stabinger Viscometer LE-SVM100

Name: Stabinger Viscometer LE-SVM100
Brand: Labexpo
SKU: LE-SVM100
Rating: 4.6 (639 reviews)

Stabinger Viscometer LE-SVM100 offers a wide temperature range from –60°C to +135°C. It features a broad viscosity range from 0.2 mm²/s to 30,000 mm²/s, supporting varied testing requirements. Equipped with a 10.4" touchscreen along with optional keyboard mouse and barcode reader for flexible operation. Our Stabinger Viscometer is suitable for automated unattended measurements ensuring seamless and versatile operation.

Specifications

Temperature Range	–60°C to +135°C
Viscosity Range	0.2 mm²/s to 30,000 mm²/s
Density Range	0 to 3 g/cm³
Viscosity Repeatability	0.10%
Viscosity Reproducibility	0.35%
Density Repeatability	0.0002 g/cm³
Density Reproducibility	0.0005 g/cm³
Temperature Repeatability	0.005°C
Temperature Reproducibility	0.03°C (15°C to 100°C)
Sample Volume (min./typ.)	1.5 mL / 5 mL
Solvent Volume (min./typ.)	1.5 mL / 6 mL
Ambient Conditions	15°C to 35°C, <80% RH
Maximum Throughput	30 samples/hour
Data Storage	1,000 results
Display	10.4 Inch Touchscreen
Interfaces	4× USB, RS-232
Power Supply	AC 100 to 240 V, 50 to 60 Hz
Dimensions	330 × 510 × 231 mm
Packaging Dimension	530 × 710 × 431 mm
Net Weight	17.6 kg
Gross Weight	19 kg

Features

All-in-one testing
High-speed temperature scanning
Unbreakable measuring cell
Low energy consumption
Advanced digital interface

Applications

Stabinger Viscometer LE-SVM100 is widely used to measure kinematic and dynamic viscosity, density, viscosity index, and various fuel and lubricant properties across industries such as petroleum, chemical processing, aviation fuel testing, lubricants quality control, and research laboratories.

Standard Accessories

O-rings
Syringes
Tygon/FEP/Viton hoses
Luer Adapters
Cleaning Brushes

Catalog

Stabinger Viscometer LE-SVM100 Catalog
