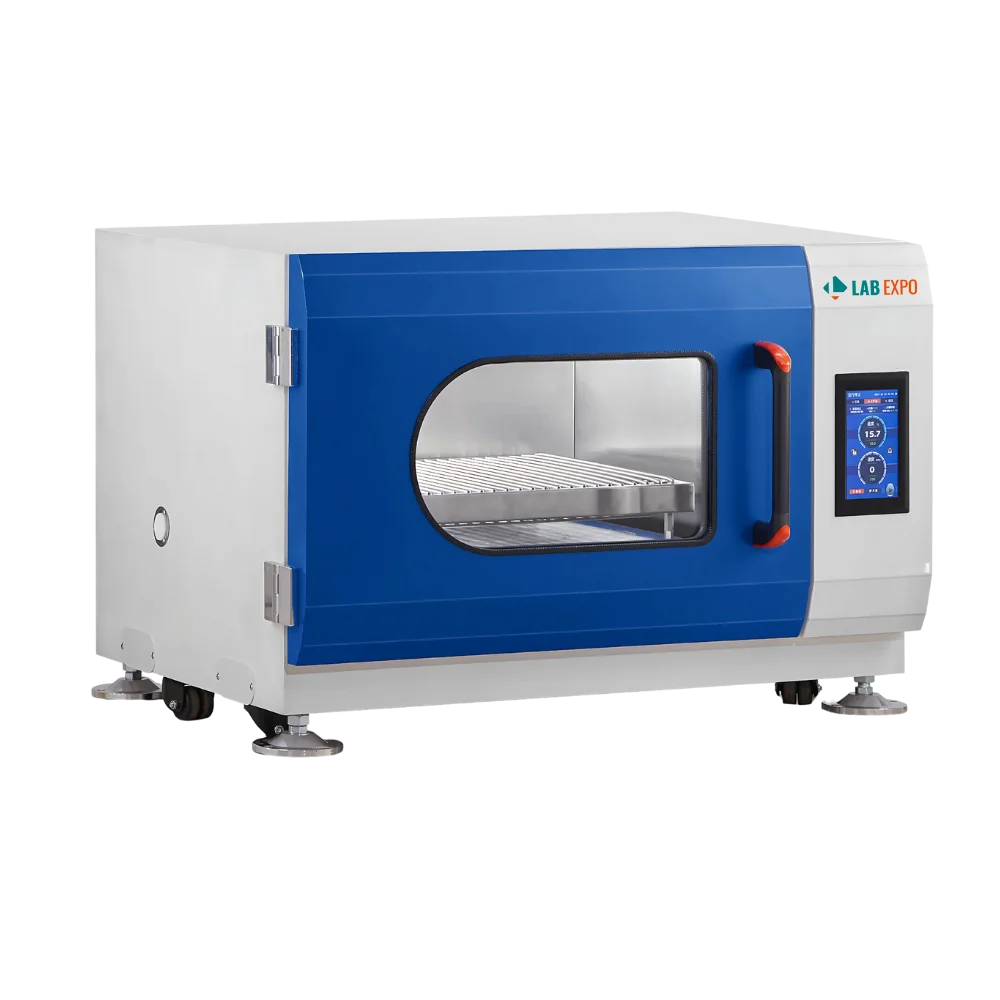

Stackable Incubator Shaker 160T-SIS103 is designed with a capacity of 160 L to accommodate flasks of various sizes simultaneously, providing versatility and efficiency. It offers a temperature range of 4°C to 60°C, ensuring stable and accurate temperature regulation. It features a door heating function that prevents fogging on the glass door, ensuring a consistently clear view. It has an LCD for easy operation and precise monitoring of settings.
Specifications
| Capacity | 160 L |
| Temperature Control Range | 4 to 60°C |
| Ambient Temperature | 5 to 35°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Distribution | ±0.5°C at 37°C |
| Temperature Control Mode | PID control mode |
| Principle of Temperature Sensor | Pt-100 |
| Rotation Speed | 2 to 300 rpm (depending on load and stacking) |
| Speed Control Accuracy | 1rpm |
| Shaking Throw | 26mm (Customization is available) |
| Shaking Motion | Orbital |
| Tray Capacity of Shake Flask | 35×250 ml or 24×500 ml or 15×1000 ml or 8×2000 ml (Standard with flask clamps, various holders available) |
| Tray Size | 590×465 mm |
| Timer | 0 to 999h |
| Maximum Working Height | 340 mm (one unit) |
| Loading Max. | 35kg |
| Maximum Expansion | Stackable up to 3 units |
| Sterilization Method | UV sterilization |
| Material of Incubation Chamber | Stainless steel |
| Material of Outer Chamber | Painted steel |
| Optional Item | Sliding black window; Door heating function |
| Number of settable programs | 5 |
| Number of stages per program | 30 |
| Data export interface | USB interface |
| Historical data storage | 250,000 messages |
| Power consumption | 1300W |
| Power supply | 115/230V±10%, 50/60Hz |
| Dimension | 1100×820×710mm |
| Weight | 155 kg |
Features
Applications
Function Implementation Microbial research 4 to 60°C temperature range supports various incubation protocols Cell culture labs 160 L capacity accommodates multiple flasks of different sizes Quality control testing ±0.5°C temperature distribution at 37°C enables precise measurements Industrial microbiology 2 to 300 rpm rotation speed allows for flexible shaking operations Clinical trials preparation 0 to 999h timer supports long-term incubation and shaker protocols
Optional Accessories
Items | Dimensions/Details |
Removable Shake Tray | 520×880 mm |
Removable Shake Tray | 465×590 mm |
125ml Flask Clamp | pc |
150 ml Flask Clamp | pc |
250 ml Flask Clamp | pc |
500 ml Flask Clamp | pc |
1000 ml Flask Clamp | pc |
2000 ml Flask Clamp | pc |
3000 ml Flask Clamp | pc |
5000 ml Flask Clamp | pc |
Adjustable Angle Test Tube Rack (50MLx15; 15MLx28) | Size 423×130×90 mm, hole diameter 30/17 mm |
Adjustable Angle Test Tube Rack (15MLx60) | Size 373×115×90 mm, hole diameter 17 mm |
Adjustable Angle Test Tube Rack (50MLx30) | Size 423×130×90 mm, hole diameter 30 mm |
Adjustable Angle Test Tube Rack (1.5MLx50) | Size 278×125×50 mm, hole diameter 11 mm |
Adjustable Angle Test Tube Rack (50MLx30) | Size 330×130×90 mm, hole diameter 30 mm |
Adjustable Angle Test Tube Rack (15MLx48) | Size 330×112×90 mm, hole diameter 17 mm |
Adjustable Angle Test Tube Rack (50MLx16; 15MLx20) | Size 330×130×90 mm, hole diameter 30/17 mm |
Peacock Blue Crystal Sticky Pad | 140×140 mm |
Humidity Strip Pan | pc |
Active Humidity Control Module | set |

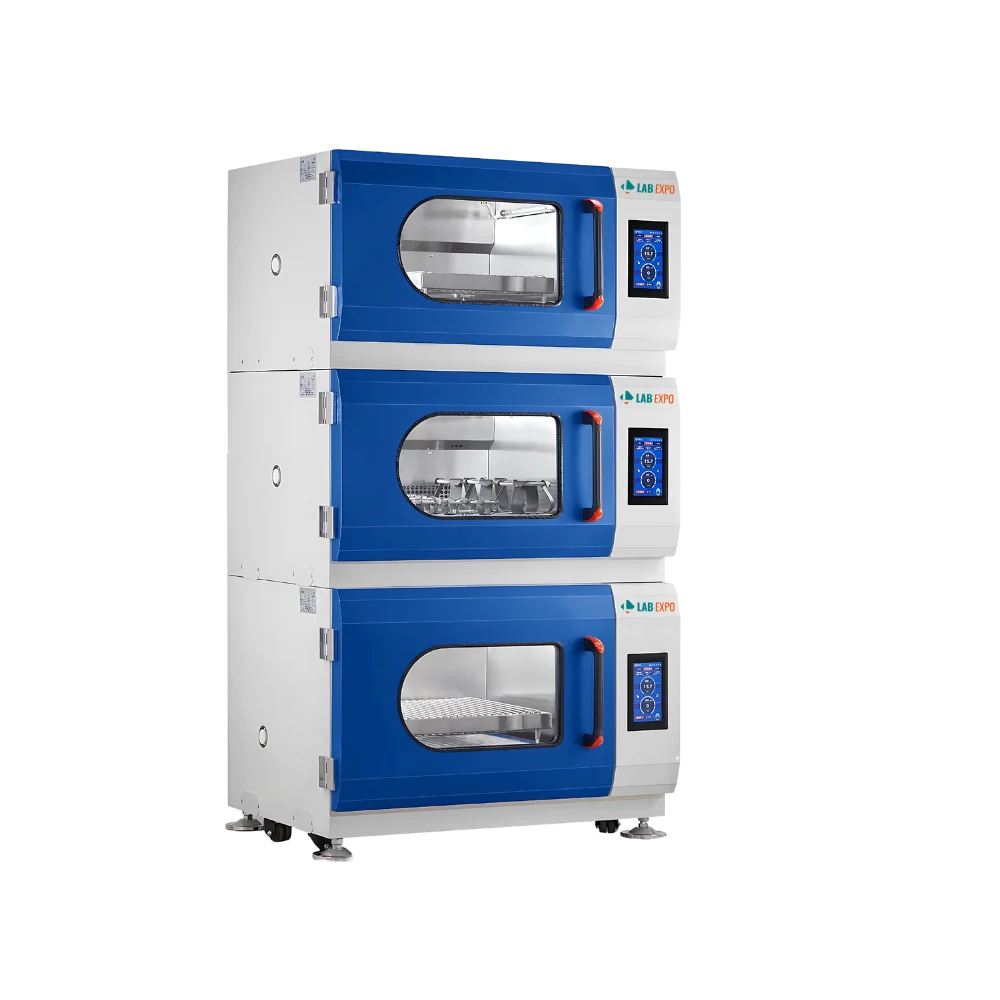

Lab Expo Stackable Incubator Shakers are designed for controlled incubation and uniform shaking with precise temperature regulation for high-throughput workflows. UV sterilization supports contamination control, while a waterproof non-heating fan ensures even thermal distribution. Double glass doors enhance insulation and safety, and integrated protection systems with alarms safeguard operation. An intuitive LCD enables accurate control of temperature, speed, and time for reproducible experimental conditions.
