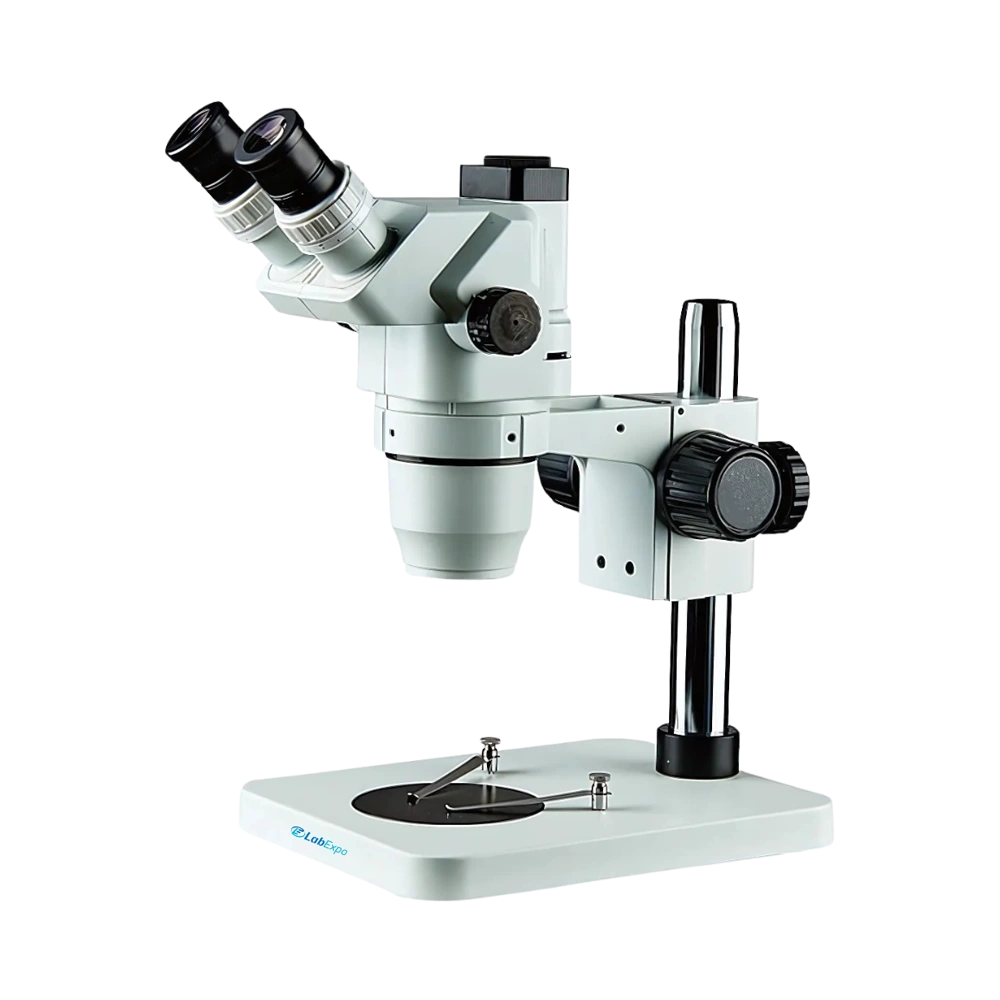

Stereo Microscope LE-SM103 delivers a high-performance imaging for precise visual inspection. Equipped with a fully coated optical system for enhanced clarity. Integrated zoom optics maintain focus across the entire range. Incorporated magnification flexibility from 3.35X to 270X. Our Stereo Microscope is ideal for both industrial as well as biological research applications.
Specifications
| Head | Trinocular |
| Magnification | 6.7X to 45X, 3.35 to 270X with optional lens |
| Working Distance | 105mm, 26 to 287mm with optional lens |
| Eyepiece | 10X/22mm |
| Zoom Range | 0.67X to 4.5X |
| Zoom Ratio | 6.7:1 |
| Objective | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X |
| Diopter Adjustment | ±5 diopters |
| Interpupillary Distance | 54 to 75mm |
| Trinocular Body | Can be Rotated a Full 360° and Locked in Any Position Desired |
| Focusing Mount | A1 Focusing Bracket, Handwheel's Tightness is Adjustable, Lifting Range 50mm |
| Base | CB1 Base |
| Illumination | Fluorescent Lamp, LED Ring Light, for More Option |
| Trinocular Interface | Fit with Three-Eye Pole and CTV, It Can Be Connected with Ordinary Camera, Digital Camera, Industrial Camera and CCD |
Features
Applications
Stereo Microscope LE-SM103 is ideal for both industrial as well as biological research, where high precision, maximum working distance and large field coverage is required.
Lab Expo Stereo Microscope comes with a three-dimensional view ideal for surface observation and manipulation. These microscopes provide excellent depth of field and a broad working distance. Their optical systems deliver sharp, clear images at lower magnifications. They are available in binocular and trinocular models to suit different needs. Our Stereo Microscope is widely used in electronics, biology, and quality inspection.
