Tabletop Autoclave 26-TTA104
Product1
Product2
Product3
Product4

Tabletop Autoclave 26-TTA104

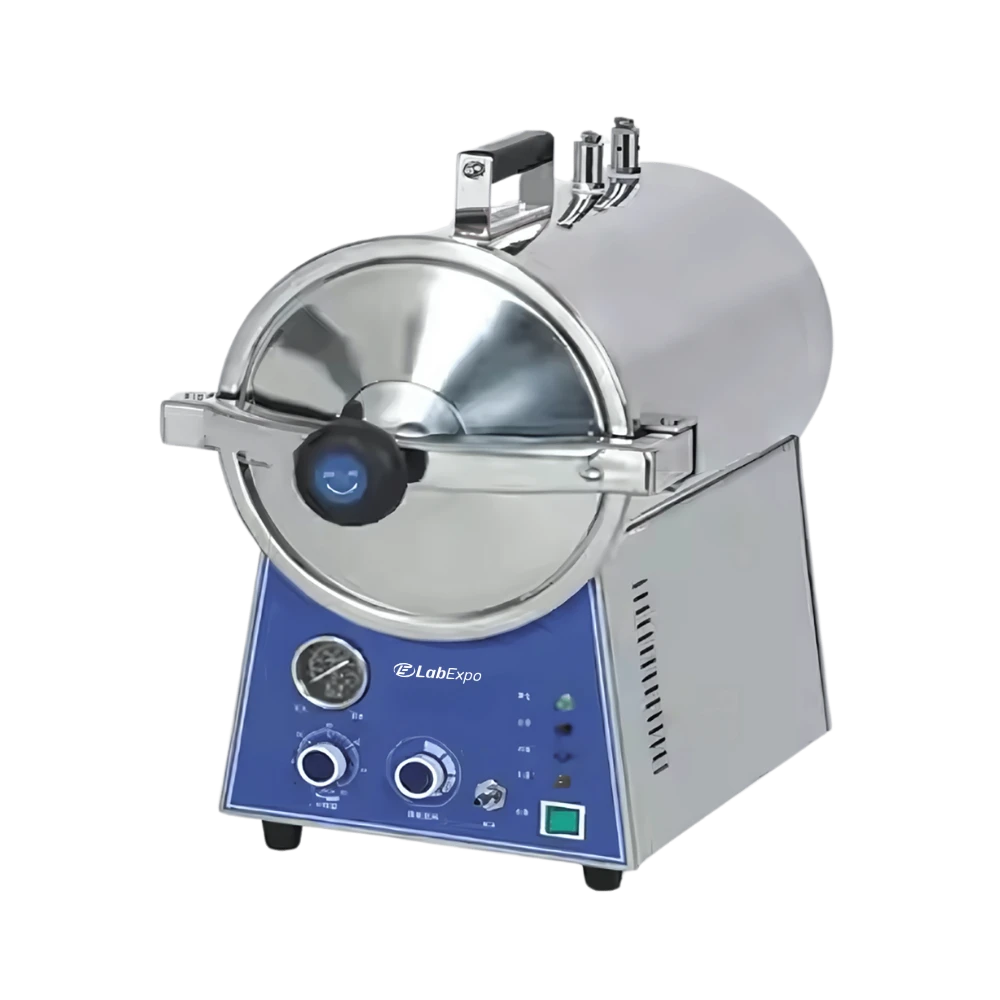

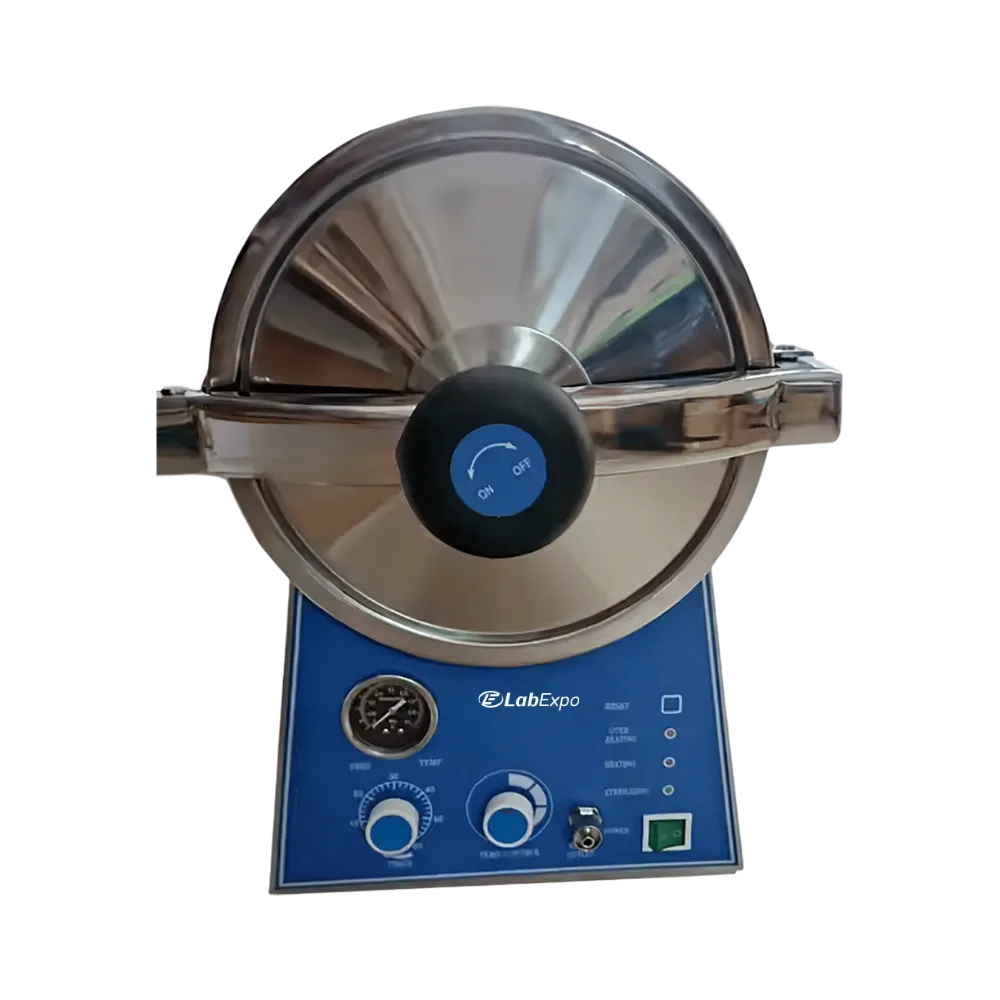

Tabletop Autoclave 26-TTA104 is a 24 Liters robust and compact, space efficient unit with a sterilizing temperature of 134 °C. It is equipped with a key feature of 4 – 6 mins rapid sterilization along with safety features like automatic shutoff preventing overheating of chamber, automatic cold air discharge and auto protection against raised temperature and pressure. Integrated with steam-water inner circulation system with steam discharge making the environment for sterilization clean and dry.

Specifications

Capacity 24 L
Sterilization Temperature 134 °C
Adjustment temperature 105 to 134 °C
Sterilization Pressure 0.22 Mpa
Number of sterilizing baskets 3
Timer Range 0 to 60 minutes
Heat Average ≤ ± 1 ℃
Chamber Dimension (Φ×D) 270 × 410 mm
Power Supply AC 220V 50 Hz / 1.5 kW
Dimension 560 × 350 × 500 mm
Net Weight 18 kg
Gross Weight 20 kg

Features

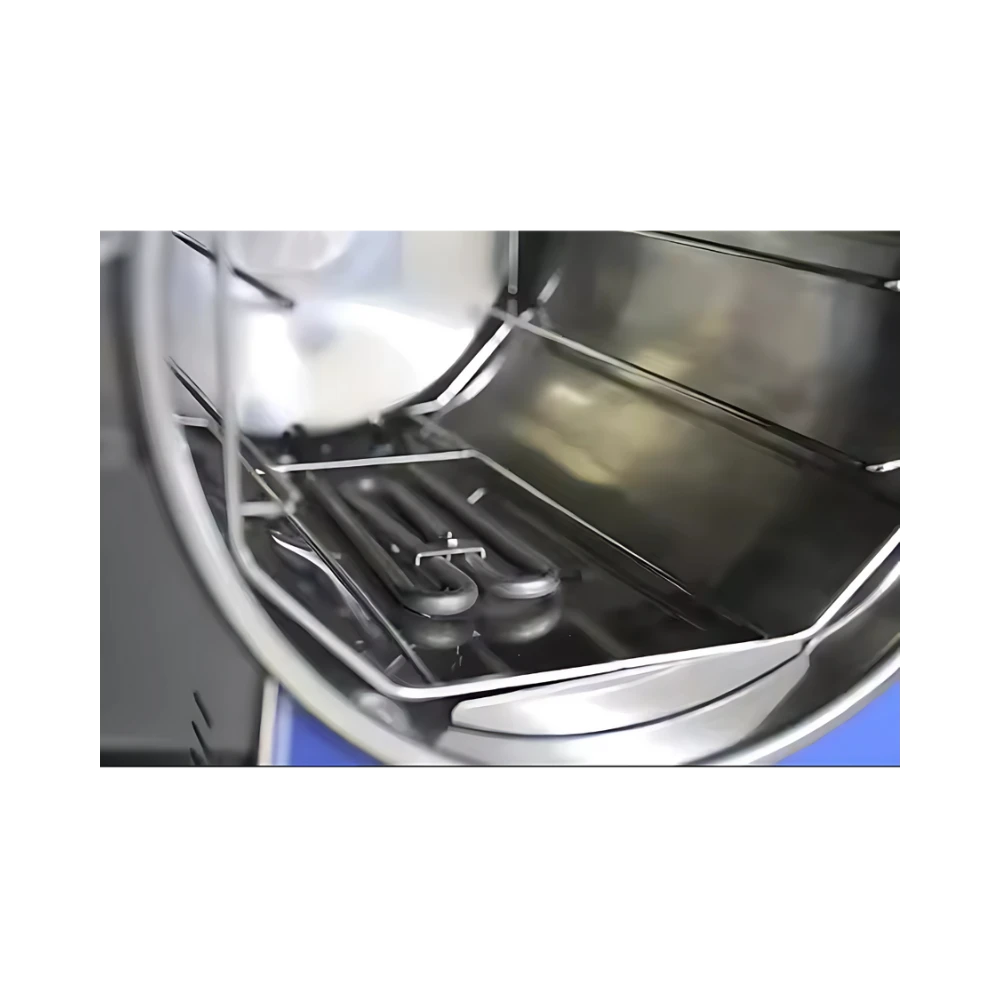

  • Internal steam circulation system combined with cool-air exhaust for dry chamber conditions
  • Pressure-interlocked, self-sealing chamber that remains locked above 0.027 MPa

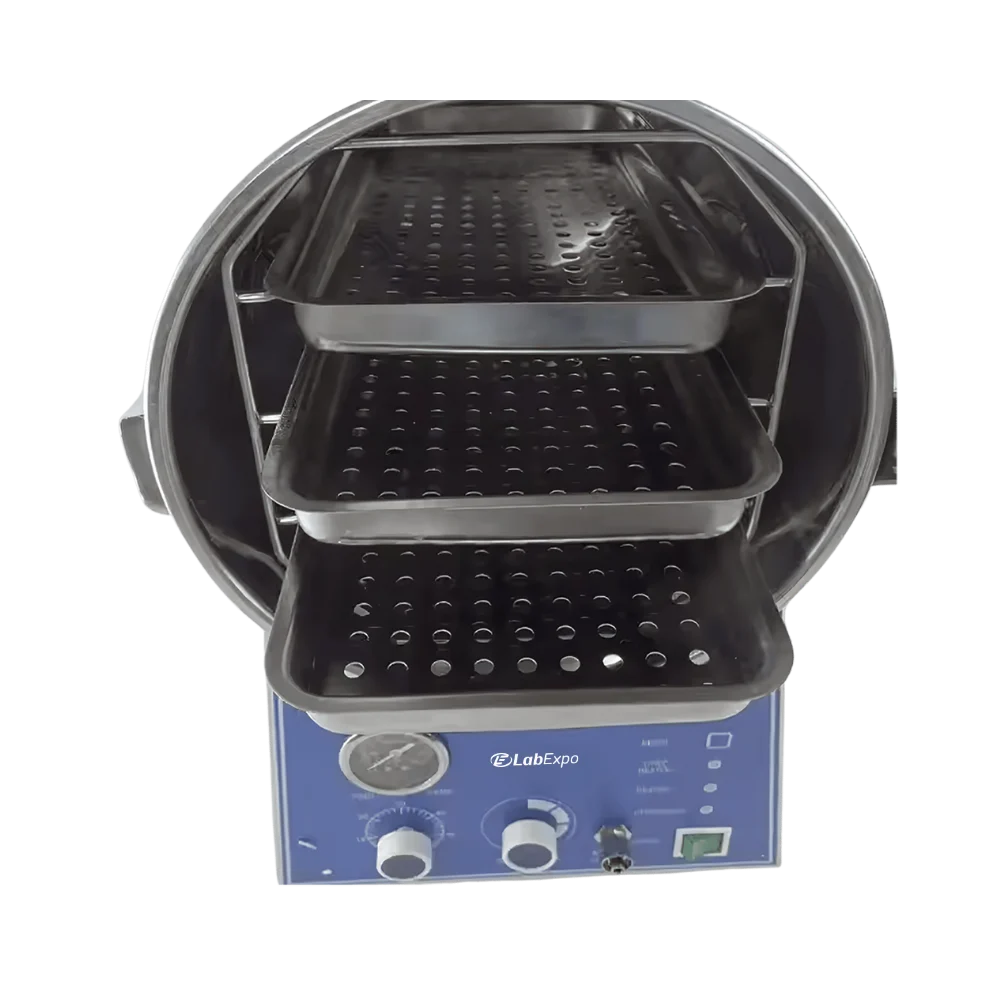

  • Stainless steel sterilizing baskets with low-water safety cutoff and alarm
  • LCD interface providing real-time visibility of operating status and cycle parameters

Applications

FunctionImplementation
Media SterilizationCulture media for aseptic processing
Instrument SterilizationSurgical and laboratory instruments
Medical SuppliesDressings and intravenous equipment
Component SterilizationRubber closures and glassware

Catalog

Tabletop Autoclave 26-TTA104 Catalog

Related Models Of Tabletop Autoclave

Lab Expo Tabletop Autoclaves support space-efficient sterilization operations where compact equipment and controlled steam processing are required for routine instrument turnaround. Each table top sterilizer operates using pressurized steam and is constructed with a stainless steel chamber to support uniform heat distribution. Digital controls manage temperature and cycle selection, while integrated safety features such as automatic door locking and a built-in water reservoir support controlled, uninterrupted operation.
