Temperature & Humidity Test Chamber 24-TTC204
Product1
Product2
Product3

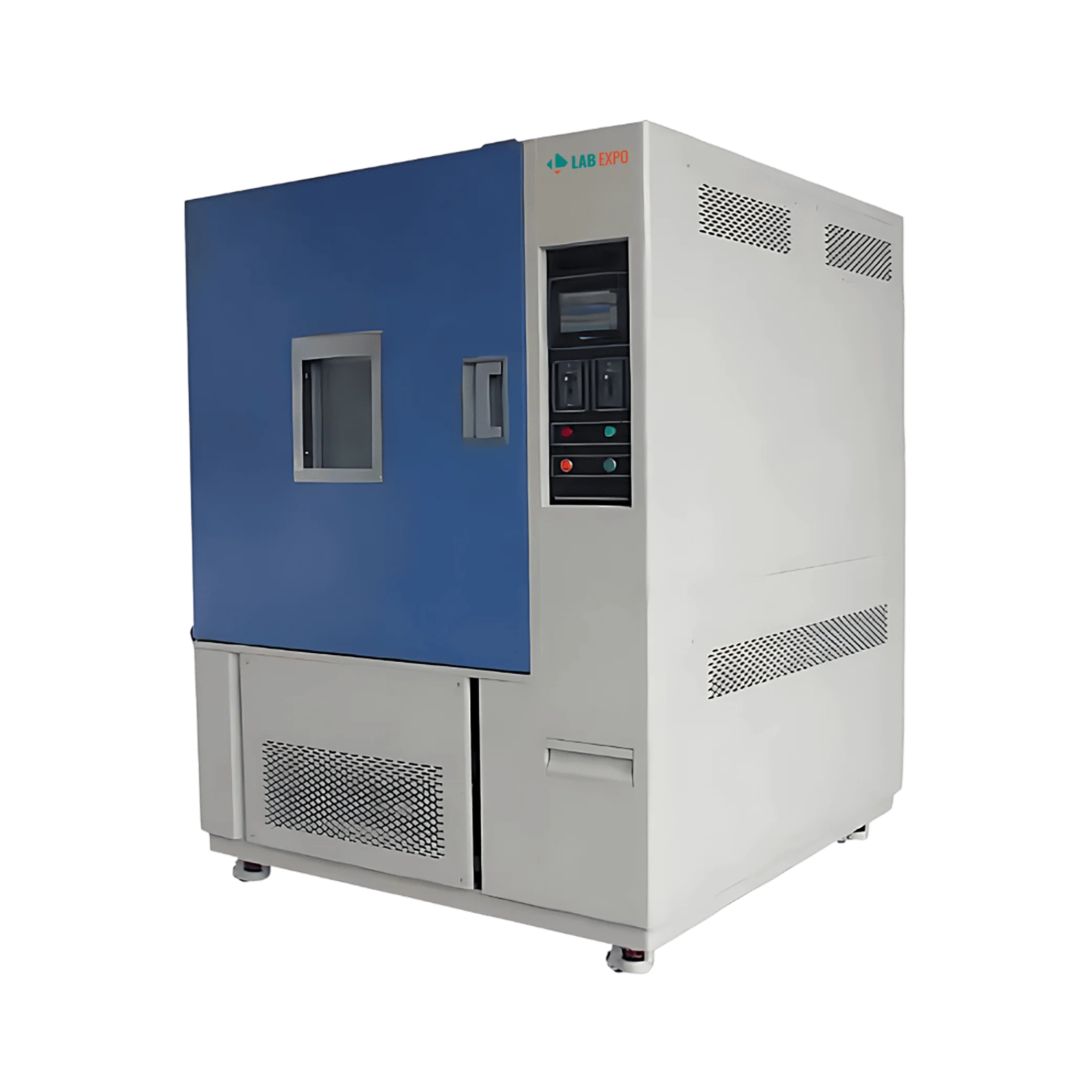

Temperature & Humidity Test Chamber 24-TTC204

Temperature & Humidity Test Chamber 24-TTC204 operates at -70°C to 150°C with a humidity range of 20% to 98% RH. It provides a capacity of 1000 liters offering ample space for testing various samples. It features independent R&D software that optimizes performance and enhances user control. Our test chamber has an inner chamber made of stainless steel providing excellent resistance to wear and corrosion.

Specifications

Capacity 1000 L
Temperature range (-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃
Temperature cooling rate 1 ℃ / min
Temperature heating rate 3 ℃ / min
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity range 20 % to 98 % R.H
Humidity deviation ± 2.5 % RH
High temperature 180 ℃
Lowest humidity 10 % RH
Internal dimension (D x W x H) 1000 x 1000 x 1000 mm
Overall dimension (D x W x H) 1500 x 1550 x 2110 mm

Features

  • Ideal for high and low temperature testing
  • Easy to use LCD touch screen controller and a graphic display to allow monitoring of the set and actual working parameters
  • Humidity controller
  • Corrosion resistant interior chamber
  • Observation window: Built-in toughened double layered glass
  • Independent R and D software
  • Humidity regulation with capacitive humidity sensor
  • Inner chamber material : Stainless steel plate
  • Thermal-insulating material resistant to high temperature and density
  • Compressor overload switch
  • Unit shuts down after alarm for over heating
  • Safety self-protection function includes short circuit, over temperature, motor overheating, compressor pressure, fuse failure
  • Windows with anti - sweat heater device to prevent water from vapor condensation and water droplets

Applications

Temperature & Humidity Test Chamber is extensively used in basic and advanced research, pharmaceutical industries, chemical industries, food and beverage industry.

Catalog

Temperature & Humidity Test Chamber 24-TTC204 Catalog
