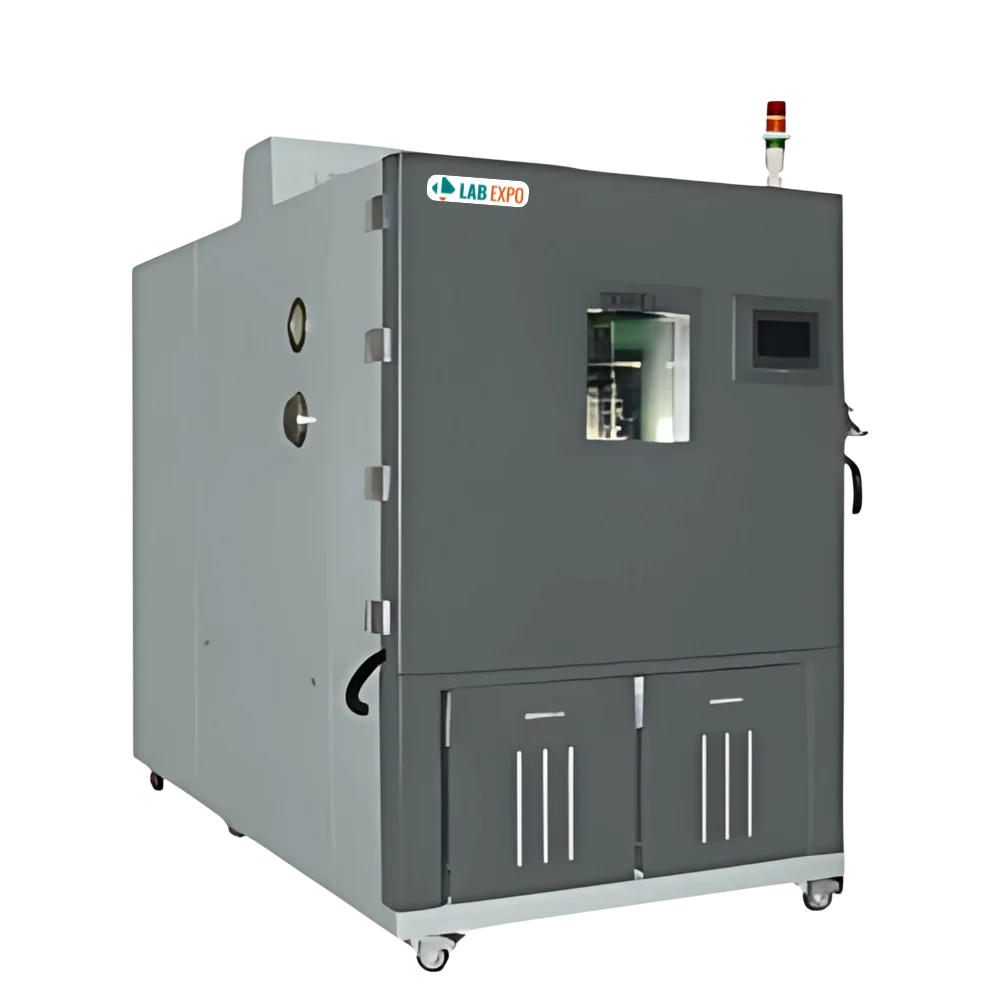

Temperature Humidity Test Chamber 408-THC102 is a microprocessor-controlled unit designed with a spacious capacity of 408L. It offers a broad temperature range from -20°C to +150°C and humidity of 98%RH, maintaining controlled conditions. It features an advanced blower motor to ensure optimal air circulation within the chamber. It is equipped with an LCD touchscreen for easy operation and function.
Specifications
| Capacity | 408L |
| Temperature Range | -20℃ to +150℃ |
| Humidity Range | 20%RH to 98%RH |
| Temperature Fluctuation | ±0.5℃ |
| Humidity Fluctuation | ±2% RH |
| Temperature Deviation | ±2.0°C |
| Humidity Deviation | ≤3% RH (＞75% RH); ≤±5% RH (≤75% RH) |
| Temperature Uniformity | ±2.0°C |
| Humidity Uniformity | +2%/-3% RH |
| Temperature Heating Time | About 3°C/min (non-linear, no load) |
| Temperature Cooling Time | About 1°C/min (+85°C to -40°C, non-linear, no load) |
| External Chamber | 1.2mm cold rolled steel plate |
| Internal Chamber | 1.0mm SUS#304 stainless steel, bottom 2mm thick SUS#304, reinforced with square tube (≥250kg/m² capacity) |
| Insulation Material | PU Polyurethane foam (100mm thick) |
| Heating Tube | Nickel-chromium alloy electric heating tube |
| Air Supply System | Blower with variable frequency speed |
| Power Consumption | 4kW |
| Power Supply | 220V, 50Hz |
| Internal Dimensions | 600 x 850 x 800 mm |
| External Dimensions | 1000 x 1900 x 1795 mm |
| Weight | 380kg |
Features
Applications
Temperature Humidity Test Chamber is primarily used to test electronic products' performance and reliability, aging and life cycle testing, environmental simulation testing, and quality control. It is widely used in pharmaceuticals, biotechnology, aerospace, automotive, and electronics industries.
Lab Expo Temperature Humidity Test Chambers are designed to provide precise environmental conditions for a wide range of testing applications. They offer precise temperature and humidity control, maintaining stable and uniform conditions throughout the chamber. These are equipped with an air supply system that uses forced convection to ensure uniform distribution of temperature and humidity throughout the chamber. They are designed with an eco-friendly refrigerant to minimize environmental impact while maintaining optimal cooling performance. These are crafted with durable materials and ensure reliable and stable operation. Our temperature humidity test chamber features an LCD real-time display and intuitive control, ensuring accurate monitoring and efficient operation.
