Thermo Shaker Incubator 63-TSI101
Product1
Product2

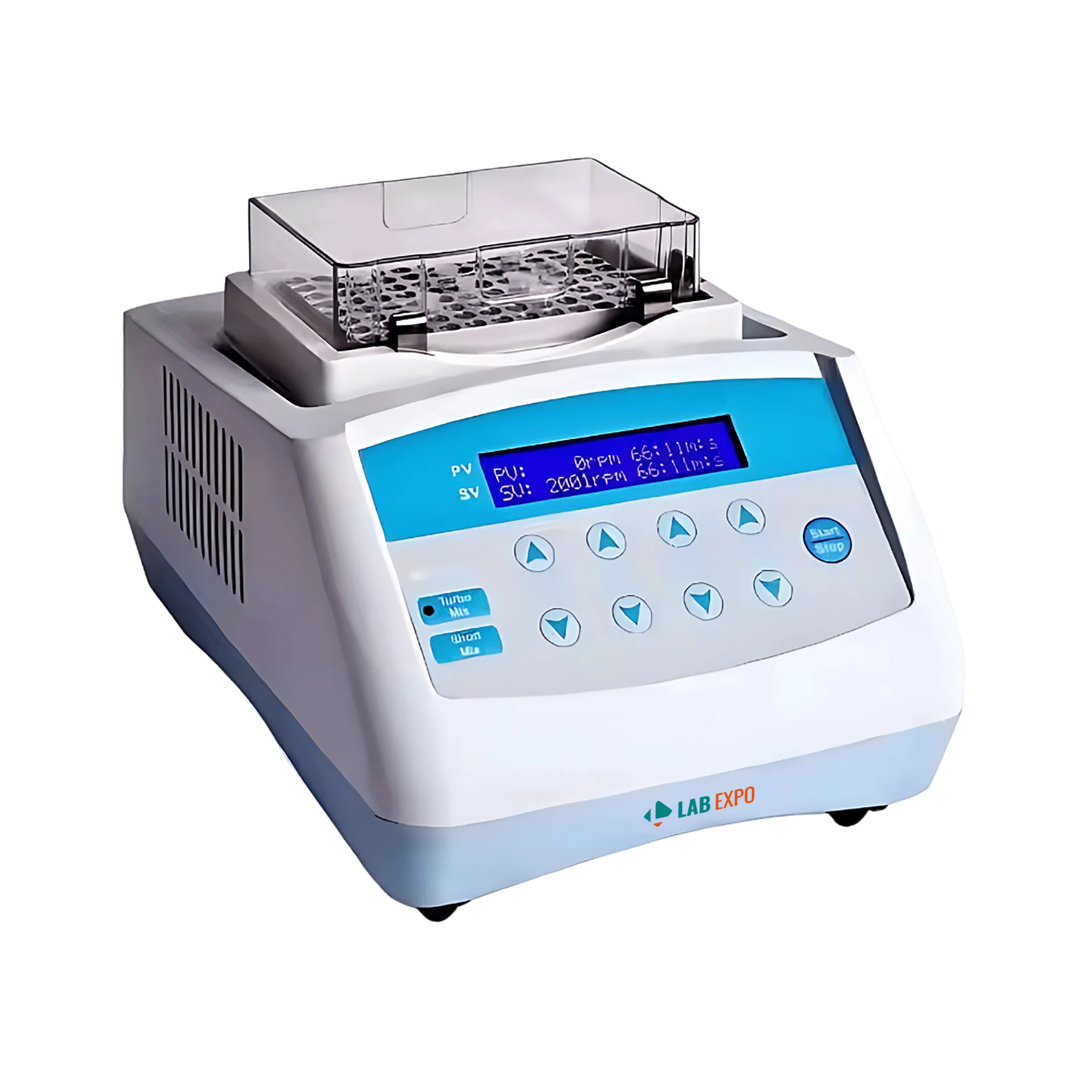

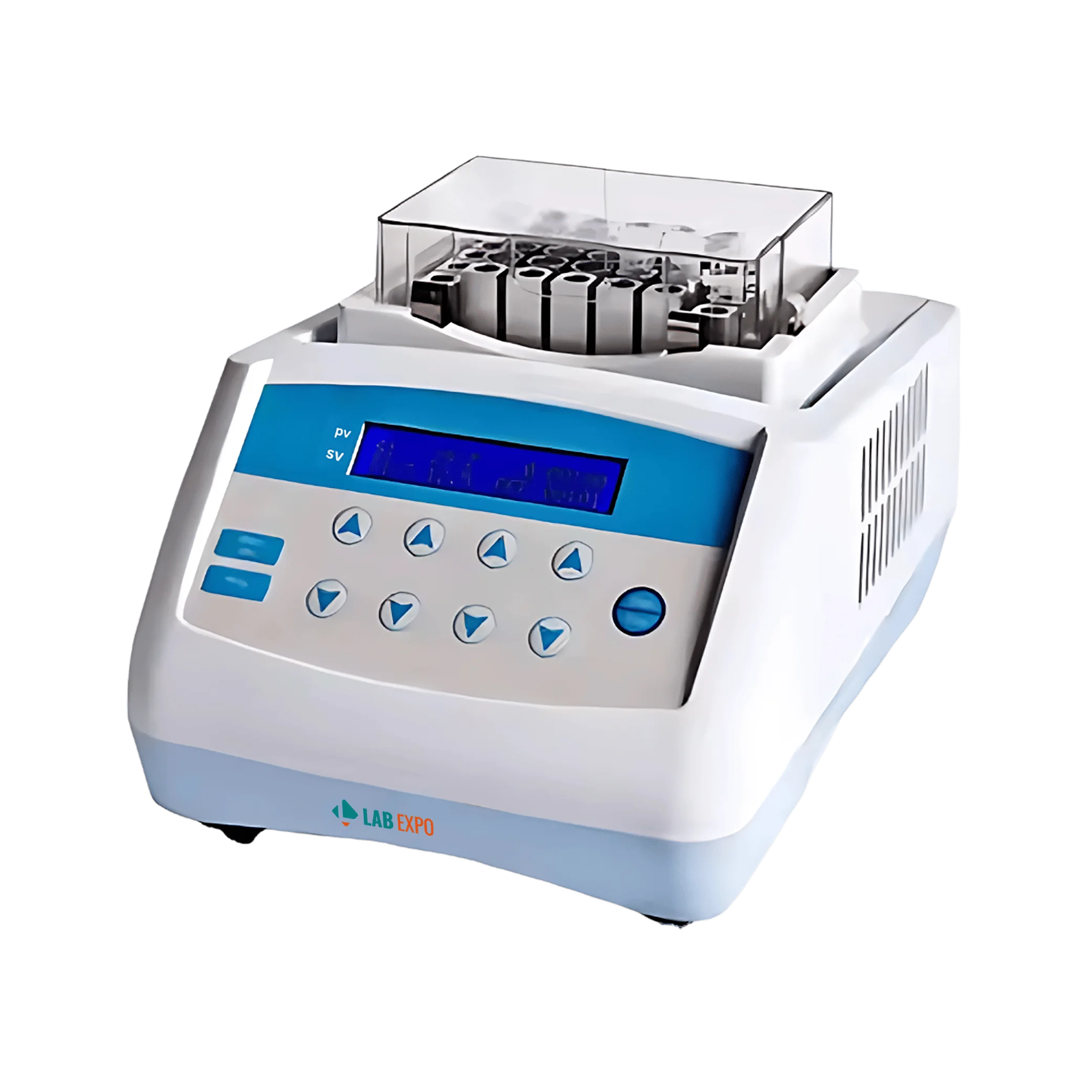

Thermo Shaker Incubator 63-TSI101

63-TSI101 is a safe, reliable, maintenance free Thermo Shaker Incubator that integrates mixing, shaking and heating function. Designed to meet the needs of different users, it is equipped with microprocessor controlled incubator and brushless DC motor. Along With built-in temperature calibration function and multiple security function, it is equipped with function of vortexing all kinds of tubes and offers precise control of the shaking speed.

Specifications

Shaking Speed 300 - 2000 rpm
Shaking Orbit 3 mm
Vortex Shaking Speed None
Temperature Range RT. +5 °C - 100 °C
Shaking Motion Horizontal
Timing Range 1 min - 99 hr. 59 min
Heating time < 15 min (from 20 °C - 100 °C)
Heating Platform Temperature Accuracy < 0.5 °C (detect at 37 °C)
Block Temperature Uniformity ≤ ± 0.3 °C
Temperature Stability ± 0.3 °C
Temperature Display Accuracy 0.1 °C
Power 200 W
Power supply AC 220 - 110 V/ 50 - 60 Hz
Dimension 270 x 196 x 170 mm
Net Weight 8.2 kg

Features

  • Microprocessor controlled incubator
  • Brushless DC motor
  • Programmable, proficient shaking and temperature control
  • Built-in temperature calibration function
  • Multiple security function
  • Various blocks available that are convenient to replace
  • Comply with CE safety standards
  • Safe and reliable to use
  • Maintenance free

Applications

Thermo Shaker Incubator is suitable for incubation and cultivation of biological and chemical components, re-suspending pellets, denaturing of nucleic acids and proteins, PCR preparations, ELISA assays, colorimetric assays, enzyme and protein analysis in microbiology, cellular and molecular biology, immunology and biotechnology.

Optional Accessories

Block Description Max. Temperature
LTSI-H01 96 X 0.2 ml PCR plate 100°C
LTSI-H02 54 x 0.5 ml 100°C
LTSI-H03 35 x 1.5 ml 100°C
LTSI-H04 35 x 2.0 ml 100°C
LTSI-H05 20 x 0.5 ml + 15 x 1.5 ml 100°C
LTSI-H06 24 x ≤ ɸ 12 mm 100°C
LTSI-H07 32 x 0.2 ml + 25 x 1.5 ml 100°C
LTSI-H08 32 x 0.2 ml + 10 x 0.5 ml + 15 x 1.5 ml 100°C
LTSI-H09 103 x 67 x 30 mm (water bath block) 100°C
LTSI-H10 96 x 0.2 ml plate (flat bottom) 100°C
LTSI-H11 24 x 5 ml (max. speed to 600 rpm) 100°C
LTSI-H12 12 x 15 ml (max. speed to 600 rpm) 100°C
LTSI-H13 6 x 50 ml (max. speed to 600 rpm) 100°C
LTSI-H14 Customized 100°C
MIX-A 96 x 0.2 ml tube stand 100°C
MIX-B 24 x 0.5 ml tube stand 100°C
MIX-C 24 x 1.5/2.0 ml tube stand 100°C

Catalog

Thermo Shaker Incubator 63-TSI101 Catalog

Related Models Of Thermo Shaker Incubator

Lab Expo offers Thermo Shaker Incubators with a versatile range of shaking speeds, allowing precise control for various applications. Their consistent shaking motion is supported by a designed orbit, ensuring uniform mixing and reliable results across a range of sample types. They are ideal for handling various micro-volume tubes, PCR plates, deep well plates, and standard microplates. They feature optimized 2D mixing with advanced anti-spill technology to ensure precise and clean operations. They Support simultaneous mixing and vortexing to accommodate plates in multiple formats as well as various micro-tubes. They are equipped with pre-programmed soft keys for enhanced safety.
